cecotec FUN GOFRESTONE 4INOX, 08017 Manual

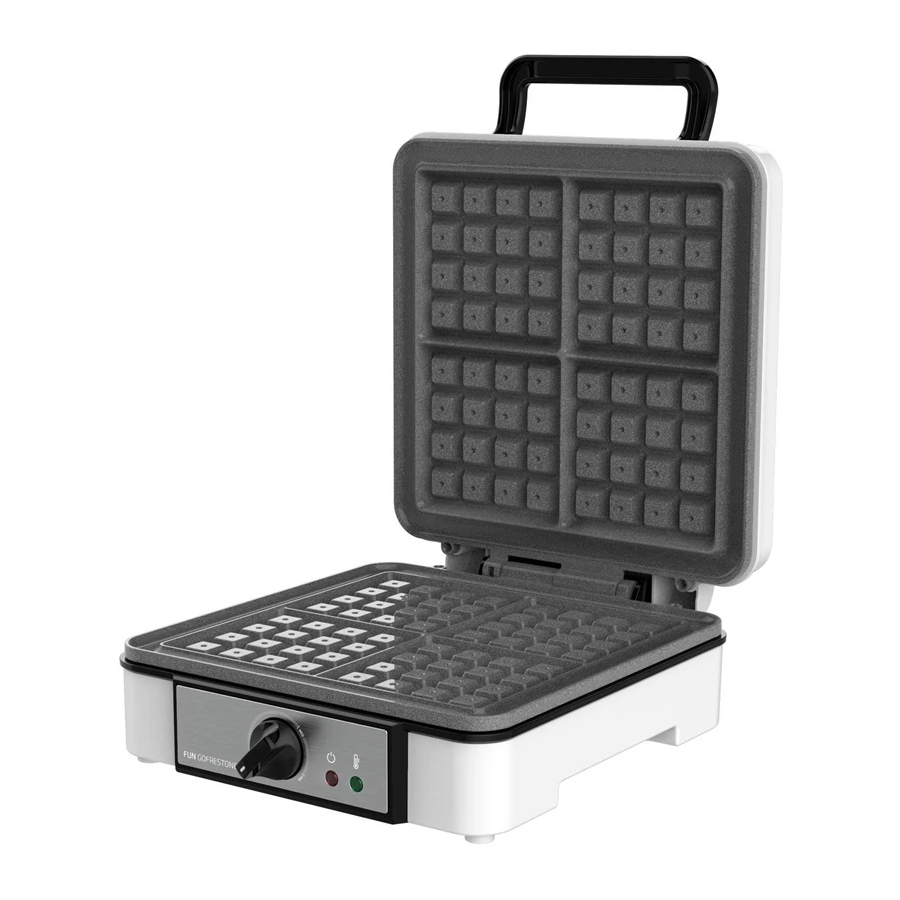

PARTS AND COMPONENTS

Fig. 1.

See Fig. 1

1. Handle
2. Non-stick plates
3. Temperature knob
4. Operation light indicator (red)
5. Control light indicator (green)
6. Upper housing
7. Lower housing

NOTE:
The graphics in this manual are schematic representations and may not exactly match the product.

BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Clean the plates with a soft, dampened cloth. Dry the heating plates with a cloth or paper towel.
• Slightly grease the non-stick plates with some oil or butter using an absorbent kitchen towel. Wipe off any excess oil.

A slight odour and smoke might appear when using the appliance for the first time. This is due to manufacturing material residues and does not affect the operation of the appliance.

OPERATION

1. Turn the temperature knob to the desired position. It is recommended to select the maximum temperature setting at first, and then adjust it.
2. Select a low temperature setting for less-cooked waffle batter, and a high temperature setting for more cooked or toasted waffle batter.
3. Plug the device into a power supply. The operation and control light indicators will light up, indicating that the device is preheating.
4. Let the device preheat until the control light indicator switches off. When it switches off, the non-stick plates will have reached an optimal cooking temperature.
5. For best results, pour a few drops of oil on the plates and use absorbent paper to spread the oil all over the plates before use. This will help to easily remove waffles once cooked.
6. Pour the mixture onto the non-stick plates. You can use a spoon, a jug, or a pastry bag.

do not use plastic piping bags, as they could melt when in contact with the hot heating plates.

7. Close the waffle maker carefully. Do not close the waffle maker abruptly, as this could cause the batter to spill off the plates.
8. Allow the batter to cook for about 3-6 minutes, or until golden brown as desired.
9. Always use a plastic or wooden spatula to remove the waffles. Do not use sharp or metallic objects, as they may damage the non-stick surface of the plates.

CLEANING AND MAINTENANCE

• Unplug the device from the mains and switch it off after each use, before cleaning, or storing it.
• Do not disassemble the product to clean it.
• Do not immerse the device in water or other liquids.
• Do not wash the appliance in the dishwasher.
• Use a soft, damp cloth to clean the surface of the device.
• Do not use metal utensils or abrasive cleaning products, as they can damage the non-stick surface.
• The plates are coated with a non-stick surface and therefore require very superficial cleaning. Simply wait until the product has cooled down completely and wipe the plates with a damp cloth.
• Thoroughly dry all parts of the appliance before storing it.
• Make sure the product has completely cooled down and is completely dry before storing it.

Note: you can store the device in an upright position to save space in the kitchen.

TECHNICAL SPECIFICATIONS

Model: Fun Gofrestone 4Inox
Product reference: 08017
1200 W, 220-240 V~, 50-60 Hz
Technical specifications may change without prior notification to improve product quality.
Made in China | Designed in Spain

SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the product.
Keep this instruction manual for future reference or new users

• This symbol means "caution, hot surface". The accessible surfaces of the appliance may reach high temperatures during operation. Be careful not to burn yourself.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by children unless they are over 8 years old and are under supervision.
• Keep this appliance and its power cord out of reach of children under the age of 8.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary if the appliance is used by or near children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Place the appliance on a dry, stable, heat-resistant surface. Position the appliance in such a way to avoid spillage of hot liquids. Be especially careful with the handle.
• Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Make sure that the mains voltage matches the voltage stated on the product marking and that the wall outlet is grounded.
• The appliance will be very hot during and immediately after operation. Use gloves or other convenient protective equipment to avoid burns and injuries.
• Use a heat-resistant base when using the device on sensitive surfaces.
• Do not twist, bend, pull, or damage the power cord. Protect it from sharp edges and heat sources. Do not allow the cord to touch hot surfaces. Do not let the cord hang over the edge of the working surface or worktop.
• Do not use the device outdoors, near a gas or electric hob, in heated ovens, or near open flames.
• Do not operate the device after it has been dropped or if it malfunctions.
• Extreme caution must be taken when moving the device.
• Always turn off and disconnect the device from the power supply when not in use or if it is not going to be used for a long period of time and before cleaning it. Pull from the plug, not the cord, to disconnect it from the outlet.

TECHNICAL SUPPORT AND WARRANTY

It is recommended that repairs be carried out by qualified personnel.
If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at +34 963 210 728.
