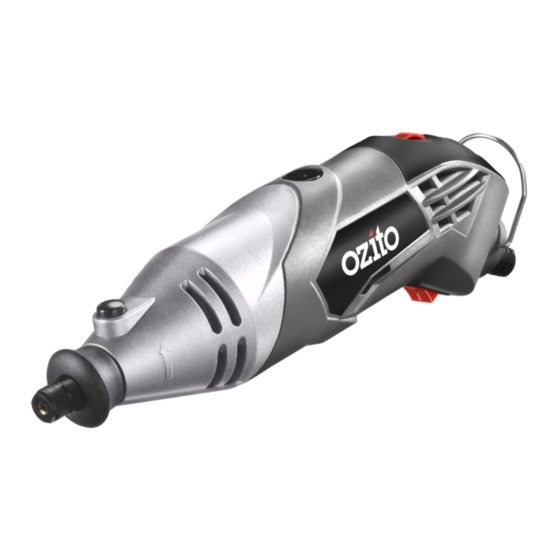

ROTARY
TOOL KIT
170W
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage:
220-240V ~ 50Hz
Power:
170W
No Load Speed:
8,000 - 35,000/min
Collet Chuck Size:
ø 1.5 - 3.2mm
Flexible Shaft Length: 1.0m
Tool Weight:
1.2kg
ozito.com.au
STANDARD EQUIPMENT
Rotary Tool
Rotary Bits x 42
Flexible Shaft
Desk Stand
Spanner
RTR-040

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTR-040 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito RTR-040

Summary of Contents for Ozito RTR-040

  • Page 1 Rotary Bits x 42 INSTRUCTION MANUAL SPECIFICATIONS Voltage: 220-240V ~ 50Hz Power: 170W Flexible Shaft No Load Speed: 8,000 - 35,000/min Collet Chuck Size: ø 1.5 - 3.2mm Flexible Shaft Length: 1.0m Tool Weight: 1.2kg ozito.com.au Desk Stand Spanner RTR-040...

  • Page 2: Know Your Product

    KNOW YOUR PRODUCT ROTARY TOOL 1 Collet Nut 5 Variable Speed Dial 2 Shaft Collar 6 On/off Switch 3 Spindle Lock Button 7 Hanging Ring 4 Accessible Brushes 8 Power Cord ACCESSORIES 9 Flexible Shaft 13 Rotary Bits x 42 10 Locking Chuck 14 Desk Stand Shaft 11 Spindle Lock...

  • Page 3: Setup & Preparation

    SETUP & PREPARATION 1. CHANGING ACCESSORIES WARNING! ENSURE THE TOOL IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS. 1 Press and hold the spindle 2 Unscrew the collet nut and lock button. remove completely. 3 Select a suitable collet for the accessory to be used and insert.
  • Page 4 Locating a cutting/sanding disc 1 Remove the screw from the end of the disc holder. 2 Fit the fibre flange either side 3 Tighten the cutting disc onto of the cutting disc, then insert the cutting disc holder. the screw. Note: Do not over-tighten the screw as it could result in damage to the cutting disc.

  • Page 5: Flexible Shaft

    2. FLEXIBLE SHAFT 1 Remove the shaft collar. 2 Loosen the collet nut. 3 Raise the handle end of the flexible shaft & shake gently until the inner flexible shaft protrudes from the fitting collar. 4 Insert the inner flexible shaft into the collet then tighten the collet nut.
  • Page 6 WARNING! DO NOT OPERATE THE FLEXIBLE SHAFT WITH MULTIPLE OR SHARP BENDS. ENSURE THAT THERE ARE NO SHARP RESIDUAL BENDS OR KINKS IN THE FLEXIBLE SHAFT BEFORE OPERATION. OVER BENDING THE SHAFT CAN GENERATE EXCESSIVE HEAT ON THE JACKET OR HAND PIECE AND MAY CAUSE THE FLEXIBLE SHAFT TO DISENGAGE FROM THE TOOL.

  • Page 7: Using The Desk Stand

    3. USING THE DESK STAND 1 Open the desk stand clamp by rotating the handle anti- clockwise. 2 Place the desk stand clamp 3 Screw the desk stand shaft onto the desk and tighten the into the hole at the top of the clamp.

  • Page 8: Operation

    OPERATION 4. CONTROLS WARNING! THE TOOL IS RECOMMENDED FOR USE WITH A RESIDUAL CURRENT DEVICE WITH A RATED RESIDUAL CURRENT OF 30MA OR LESS. On/Off Switch 1 To turn on, push the on/off switch to on position “I”. 2 To turn off, push the on/off switch to the off position “0”.

  • Page 9: Operating The Rotary Tool

    5 Gently apply the tip of the accessory to the work piece. WARNING! PLACING EXCESSIVE LOAD ON THE ROTARY TOOL WHILE IT IS RUNNING AT LOW SPEEDS MAY CAUSE IT TO OVERHEAT AND THE MOTOR TO FAIL. RTR-040...

  • Page 10: Accessory Guide

    ACCESSORY GUIDE ACCESSORY GUIDE - RTR-040 ASSEMBLY 1.5mm x 1 Collet 2.4mm x 1 different shank sizes, to your rotary tool. 3.2mm x 1 A mandrel is a shank to which polishing Mandrel accessories, cutting wheels and sanding A shank which screws into the felt Screw Mandrel polishing tip and wheels.

  • Page 11: Maintenance

    Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the rotary tool by an unauthorised person or by mishandling of the rotary tool.

  • Page 12: Electrical Safety

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
  • Page 13 GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY WARNING! Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left Read all safety warnings and all instructions. Failure to follow the warnings and attached to a rotating part of the power tool may result in personal injury.

  • Page 14: Warranty

    • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. Ozito Industries Pty. Ltd. 25 Fox Drive, Dandenong South, Victoria, Australia 3175. 0522...
