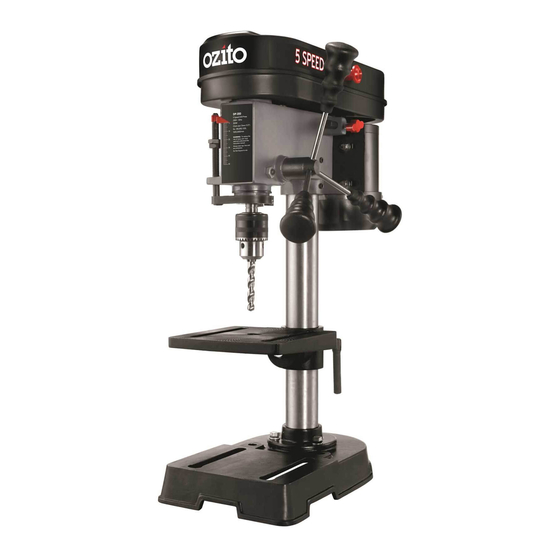

Ozito DP-350 Instruction Manual

DRILL
PRESS
350W 5 Speed
INSTRUCTION MANUAL
SPECIFICATIONS
Motor Size: 350W
Input: 230 – 240V ~ 50Hz
No Load Speed: 580, 850, 1220,
1650, 2650/min
Chuck: 13mm Keyed
Spindle Travel: 50mm
Spindle Shaft to
Column Distance: 104mm
Column Height: 395mm
Table Size: 160x160mm
Weight: 16.4kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
oZIto
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 yEAR REplAcEmENt WARRANty
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself) use
only. If a product is defective it will be replaced in accordance with
the terms of this warranty. Warranty excludes consumable parts, for
example: feed wheel handles, keyed chuck, allen key, chuck key, belt.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction
manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WHAT'S IN THE BOX
Head Assembly
0
10
20
30
Table
40
50
Steel Column
Base
13mm Keyed
Feed Wheel
Chuck
Handles x 3
Column Support Pulley Cover
Bolts x 3 Knob Assembly
Chuck Key
Belt (assembled
to pulleys)
4 & 3mm Allen Key
DP -350
0714
