Ozito RTS-002 Instruction Manual

Ozito RTS-002 Instruction Manual

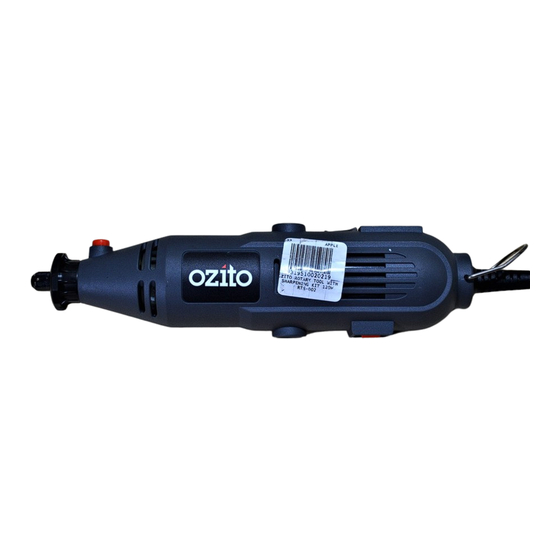

Rotary tool kit

Advertisement

Quick Links

ROTARY
TOOL KIT
120W
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage:
230-240V ~ 50Hz
Power:
120W
No Load Speed:
10,000 - 32,000/min
Max Collet Size:
ø 3.2mm
Weight:
0.65kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: accessories,
carbon brushes etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WHAT'S IN THE BOX
Rotary Tool
Blade Sharpening
Attachment
Chainsaw Sharpening
Attachment
RTS-002
1116

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTS-002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito RTS-002

  • Page 1 Attachment Weight: 0.65kg ozito.com.au Accessories RTS-002 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...
  • Page 2 KNOW YOUR PRODUCT SETUP & PREPARATION ROTARY TOOL 1. CHANGING ACCESSORIES 1 Collet Nut 5 On/off Switch 2 Shaft Collar 6 Variable Speed Dial 3 Spindle Lock Button 7 Hanging Ring WARNING: ENSURE THE TOOL IS SWITCHED 4 Accessible Brushes OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING STEPS.
  • Page 3 2. SHARPENING ATTACHMENTS 3. ADJUSTING ATTACHEMENTS Adjusting the Chainsaw Sharpening Attachment Before fitting one of the sharpening attachments, you must attach the desired accessory and secure by tightening the collet nut. Before using the chainsaw sharpening attachment, the adjustable height must be repositioned to correctly contact the sharpening Selecting the Correct Sharpening Wheel edge.
  • Page 4 OPERATION 3. CONTROLS 4. SHARPENING CHAINSAW BLADES WARNING! THE POWER SUPPLY FOR THIS 1 Ensure that the PRODUCT SHOULD BE PROTECTED BY A RESIDUAL chainsaw sharpening CURRENT DEVICE (RATED AT 30mA OR LESS). attachment and the correct sized sharpening wheel is Variable Speed Dial fitted securely.
  • Page 5 Note: To sharpen the blade, only a few passes are necessary. CAUTION: PLACING EXCESSIVE LOAD ON THE ROTARY TOOL WHILE IT IS RUNNING AT LOW SPEEDS MAY CAUSE IT TO OVERHEAT AND THE MOTOR TO FAIL. RTS-002...
  • Page 6 Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any Spare parts can be ordered from the Special Orders Desk damage or injuries caused by the repair of the rotary at your local Bunnings Warehouse.
  • Page 7 The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
  • Page 8 ROTARY TOOL SAFETY WARNINGS This appliance is not intended for use by young or infirm persons unless supervised by a responsible b) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or person to ensure that they can use the appliance safely.
