Quick Parameter Reference
CFW501 Frequency Inverter
1 USE OF THE HMI TO OPERATE THE INVERTER
- When in the setting mode, level 1: press this
key to return to the monitoring mode.
- When in the setting mode, level 2: press this
key to return to level 1 of the setting mode.
- When in the setting mode, level 3: press this
key to cancel the new value (new value is not
saved) and return to level 2 of the setting mode.
- When in the monitoring mode: press this key
to increase the speed.
- When in the setting mode, level 1: press this
key to go to the previous group.
- When in the setting mode, level 2: press this
key to go to the next parameter.
- When in the setting mode, level 3: press this
key to increase the content of the parameter.
Press this key to define the motor rotation
direction.
Active when:
P0223 = 2 or 3 in LOC and/or P0226 = 2 or
3 in REM.
Press this key to commute between LOCAL
and REMOTE mode.
Active when:
P0220 = 2 or 3.
Press this key to accelerate the motor up to the speed set in P0122 within
the time determined by the acceleration ramp. The motor speed is kept while
the key is pressed. When the key is released, the motor decelerates within
the time determined by the deceleration ramp, until it stops. This function
is active when all the conditions below are met:
1. Turn/Stop = Stop.
2. Enable general = Active.
3. P0225 = 1 in LOC and/or P0228 = 1 in REM.

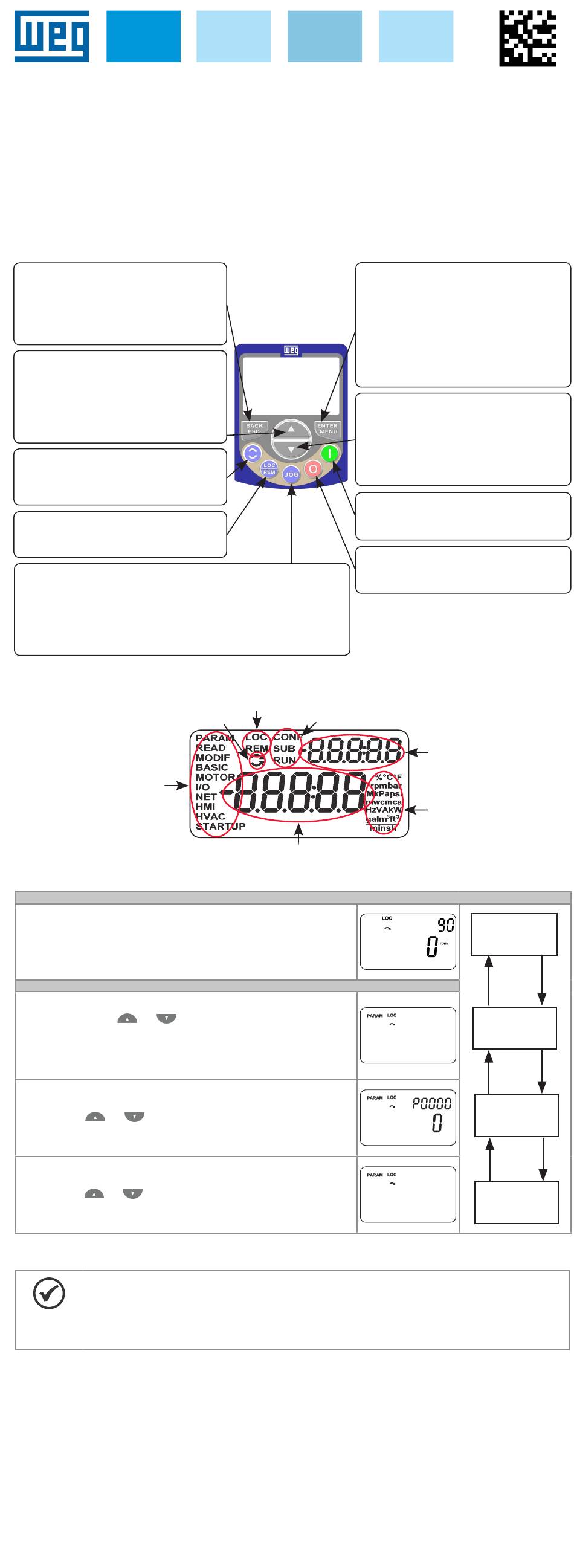

1.1 INDICATIONS ON THE HMI DISPLAY
Menu (to select the
parameter groups) – only
one parameter group is
shown at a time
1.2 OPERATING MODES OF THE HMI
It is the initial status of the HMI after the powering, up and of the initialization
„
screen , with default values
The field Menu is not active in this mode
„
The main display and secondary display indicate the values of two parameters
„
predefined by P0205 and P0206
From the monitoring mode, when you press the key ENTER/MENU you commute
„
to the setting mode
Level 1:
This is the first level of the setting mode. It is possible to choose the parameter
„
group using the keys
The main display, secondary display and measurement units are not shown in
„
this level
Press the key ENTER/MENU to go to level 2 of the setting mode – parameter
„
selection
Press the key BACK/ESC to return to the monitoring mode
„
Level 2:
The number of the parameter is shown on the main display and its content on
„
the secondary display
Use the keys and
„
Press the key ENTER/MENU to go to level 3 of the setting mode – modification
„
of the parameter content
Press the key BACK/ESC to return to level 1 of the setting mode
„
Level 3:
The content of the parameter is shown on the main display and the number of the
„
parameter is shown on the secondary display
Use the keys and
„
Press the key ENTER/MENU to confirm the modification (save the new value) or
„
BACK/ESC to cancel the modification (not save the new value). In both cases, the
HMI returns to level 2 of the setting mode
2 MAIN PAREMETERS
NOTE!
ro = read only parameter.
V/f = available when V/f control mode is chosen.
cfg = configuration parameter, value can be programmed only with motor stopped.
VVW = available when VVW control mode is chosen.
Local/Remote (commands and
references source)
Motor rotation
Setting Mode
and
to find the desired parameter
to configure the new value for the selected parameter
- When in the monitoring mode: press this key
to enter the setting mode.
- When in the setting mode, level 1: press this
key to select the desired parameter group – it
shows the parameter group selected.
- When in the setting mode, level 2: press this
key to show the parameter – it shows the content
of the parameter in order to change the content.
- When in the setting mode, level 3: press this
key to save the new content of the parameter – it
returns to level 2 of the setting mode.
- When in the monitoring mode: press this key
to decrease the speed.
- When in the setting mode, level 1: press this
key to go to the next group.
- When in the setting mode, level 2: press this
key to go to the previous parameter.
- When in the setting mode, level 3: press this
key to decrease the content of the parameter.
Press this key to accelerate the motor within
the time determined by the acceleration ramp.
Active when:
P0224 = 0 in LOC or P0227 = 0 in REM.
Press this key to decelerate the motor within
the time determined by the deceleration ramp.
Active when:
P0224 = 0 in LOC or P0227 = 0 in REM.
Inverter status
Main display
Monitoring Mode
13873081
Secondary indication
Measurement unit
(it refers to the value of
the main indication)
Monitoring
Back
Esc
Setting
Level 1
Back
Esc
Setting
Level 2
Back
Esc
Setting
Level 3
Enter
Menu
Enter
Menu
Enter
Menu
