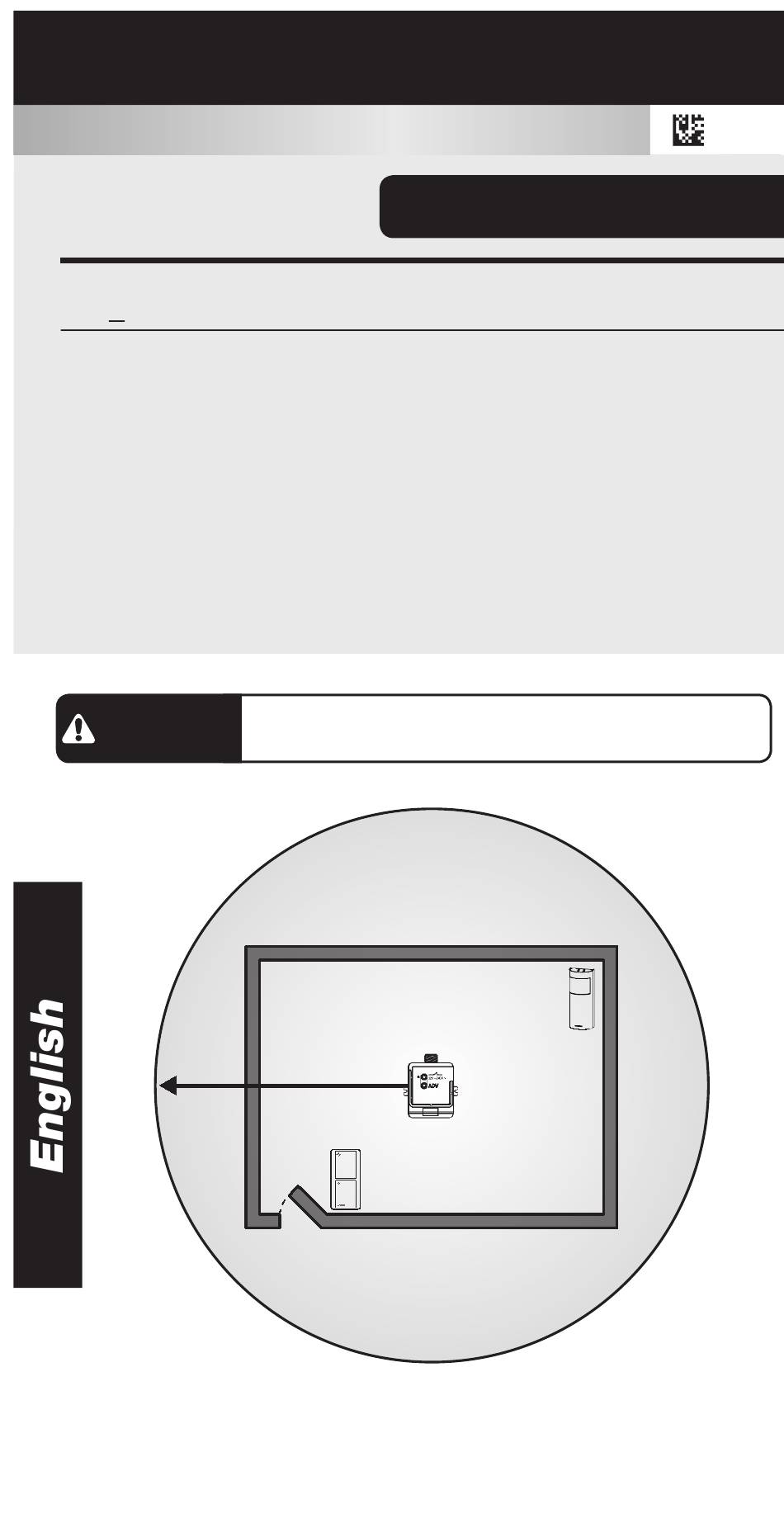

PowPak | Installation
CCO Module
Part of the Vive Family
RMMS-CCO1-24-B
Note for Replacement:
RMxS - the "S" model can replace the non-"S" model
Important Notes:
• For installation by a qualified electrician in accordance with all local and national
electrical codes.
• Note: Use copper conductors only.
• The 24 V~ or 24 V- supply and load shall be provided via an approved power
source in accordance with IEC/EN61558-2-6.
• Check to see that the device type and rating is suitable for the application.
• DO NOT install if product has any visible damage.
• If moisture or condensation is evident, allow the product to dry completely
before installation.
• Operate between 0 °C and 55 °C.
• 0% to 90% humidity, non-condensing.
• For indoor use only.
WARNING
All Wireless Transmitters must be installed within
9 m of the PowPak CCO Module.
24 V~
24 V-
Please read before installing.
Shock Hazard. May result in serious injury or death.
Turn off power at circuit breaker before installing the unit.
PowPak
CCO Module
Install in center of room to
maximize RF coverage.
Occupancy Sensor
9 m
Maximum
Pico
Wireless
Control
45 mA
35 mA
Radio Powr Savr
041720
Rev. A
06/2019
