Summary of Contents for SOMFY Universal receiver RTS

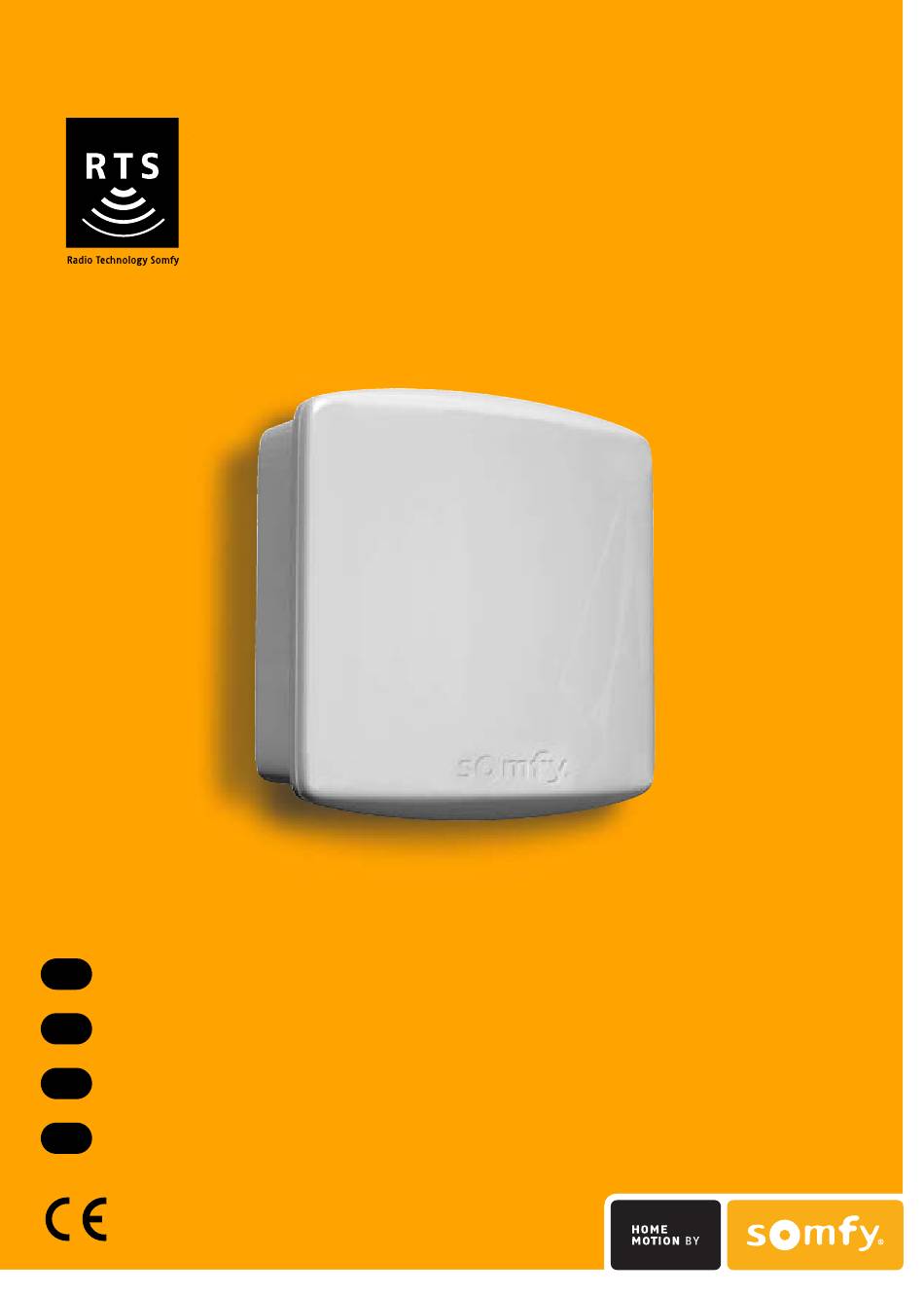

- Page 1 Universal receiver RTS INSTALLATION GUIDE GUÍA DE INSTALACIÓN GUIA DE INSTALAÇÃO Oδηγός εγκατάστασης ref. 5046397A...
- Page 2 Universal receiver RTS Soliris Sensor RTS 230VAC-50Hz Eolis Sensor RTS 230VAC-50Hz Telis Soliris RTS 230VAC-50Hz Sunis Sensor RTS L K JI HG FED Earth RTS Sensor 230VAC Neutral motor Supply 230VAC-50Hz...
- Page 3 2 sec. 0.5 sec. 2 sec. 0.5 sec. 0.5 sec. 7 sec.
- Page 4 5 sec. 3 sec. 5 sec. 3 sec. 2 min. 15-30 min. 2 sec. 30 sec. 433,42 MHz 433,42 MHz IP55 110 mm 40 mm...
-
Page 5: Before Installation
• Install the Universal receiver RTS with the cables entry pointing downwards to avoid water infiltration. • Do not install the Universal receiver RTS against a metallic part (it could affect the radio transmission). [1].The Universal receiver RTS is compatible with all standard SOMFY wired motors. Cabling arrangements are shown in the diagram. -
Page 6: Sun Function
With the Universal receiver RTS and a RTS control, it is possible to set one or two favorite positions: one accessible from the top of the awning and one from the bottom. The both intermediate positions can be reached manually (with a RTS control) by pressing e. - Page 7 Hereby, SOMFY, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A Declaration of Conformity is available at the web address...
