- Page 1 HANDHELD TERMINAL Quick start guide PM80 • For more details of product information and user guide, please refer to our website (www.pointmobile.co.kr)
-
Page 2: Package Contents
Package contents Device Stylus pen with Tether AC/DC Adaptor Battery Wrist Strap LCD protection film... -
Page 3: Device Layout

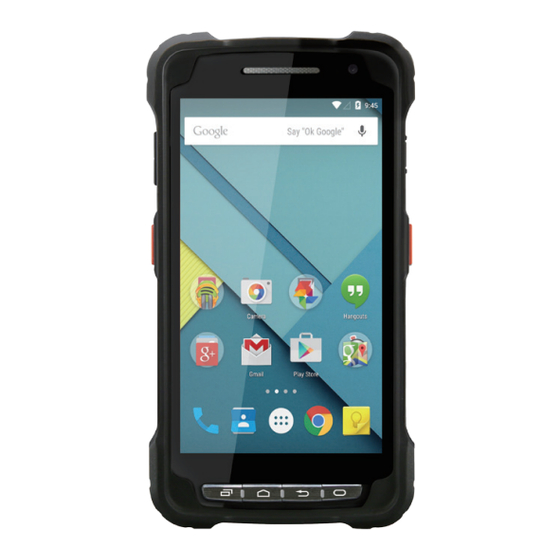

Device layout Front ED indicator M camera can trigger ouch screen hysical keys... - Page 4 Device layout Back(MSR) SR/IC M camera & Flashlight attery cover attery cover locker...
- Page 5 Device layout Back(Non-MSR) M camera & Flashlight peaker attery cover attery cover locker...
- Page 6 Device layout Up/down & sides arcode scanner harging port /O Connector udio jack olume Up/Down ower key can trigger can trigger...
- Page 7 Menu keys ecent apps rogrammable Recent apps key • Tap to open the list of recent apps. Home key • Press to return to the Home screen while running apps • Press to return to the Home screen from other screens •...
-
Page 8: Installing Battery
Installing battery Rotate lock to counter clockwise and pull up the battery cover by holding both sides at bottom. Insert battery, top first, into the battery compartment. -
Page 9: Removing Battery
Removing battery Hold the ribbon and lift upward to remove battery 4. Insert battery cover, top first and press it in the order named on the picture. Then press down on battery at the center again. ... - Page 10 Hotswap To replace the battery during your device usage, • please press and hold the power button. Then you will see pop up window as below Select ‘Hot swap’ among the menu Tap ‘OK’ and wait until red LED turned off Replace the battery By pressing the power button, device will turn on.
-
Page 11: Installing/ Removing Micro Sd Card
Installing/ Removing Micro SD card Installing Micro SD card 1. Remove battery from device and insert Micro SD card. 2. Insert battery again after installing Micro SD card. Removing Micro SD card 1. Press Micro SD card gently and slide it out. 2. -
Page 12: Charging The Battery
Charging the battery Insert plug on AC/DC Adaptor and connect to electric socket to charge. LED indicator on upper left of device shows red light while charging and it turns to green light when the device is fully charged. <Caution> Use only items provided in your purchase for charging. -
Page 13: Standard Accessory
Standard accessory 5V 2A AC/DC Adaptor AC plug(US/EU/UK) LCD protection film 3000/4000mAh battery Stylus pen with Tether Wrist Landyard... - Page 14 Optional accessary SSC(Single Slot Cradle) 4SC(4 Slot Cradle) 4SBC(4 Slot Battery Charger) I/O Sync Connector Bumper with handstrap...
-
Page 15: Getting Started
Getting Started Turning the device on and off Press power key on upper right of device to turn on. After few seconds, device will turn on. Off- Press and hold power key for a while till you and tap power off on the screen options. Set up Press power key on upper right of device to turn on. - Page 16 Scanning Testing barcode scanner Open Demos folder on home screen. Tab ScanDemo run. Press both scan keys at once or any of scan key on the device to scan barcode. Scanned barcode data will show on screen as on the picture left. Point the scanning beam at the center of barcode and keep scanning angle vertical to it.
- Page 17 Scanning: aiming pattern Up/down & sides...
-
Page 18: Resetting The Device
Resetting the device Reboot Press and hold power key for 3 seconds and select Reboot on options to reboot the device. Settings -> back up and reset -> Factory reset -> Reset phone Factory reset Follow the process by tapping next button to complete factory reset. -
Page 19: Setting The Date And Time
Setting the date and time Go to below route to set date and time. Settings -> Date and time -> Uncheck automatic date & time, Uncheck automatic time zone Access to above route and alter the following settings according to user’s decision. Set date •... - Page 20 Connecting to PC Connecting USB data Sync cable Connect to PC and transfer data in Micro SD card/ device storage with I/O USB data Sync cable. Connecting connect USB cable to USB port of PC and I/O connector. Tab media device connection on notification panel of status bar.
- Page 21 For more information Please refer to the usual guide for more information on safety & regulations of device and accessories. Certification Equipment name: Mobile computer Model: PM80 Trade name of certified: POINT MOBILE CO.LTD Manufacturer/ Country of origin: POINT MOBILE CO.LTD/ China...
- Page 22 Warning Do not allow any strong pressure or impact on the touch screen. Do not touch any interior liquid from LCD panel breakage that may cause skin irritation. Use only approved AC/DC power adaptor provided with device or from distributor. Disapproved products may cause unexpected problems as fire, electric shock, etc.
-
Page 23: Standard Features
Standard features Item Specifications Model PM80 Android 6.0.1 (Certified GMS approval) Micro-Processor Qualcomm Snapdargon Quad Core up to 1.4GHz Memory(RAM/ROM) 2G RAM x 16G ROM(Nand) Memory User accessible Micro SD memory card slot. extension Display 5.0” Wideviewing angle IPS(1280 X 720 pixels) - Page 24 Wireless Specification (Frequency) WLAN 802.11b/g/n : 2412~2472MHz • 802.11a/n: 5180~5240, 5260~5320, 5500~5620, • 5745~5805MHz Bluetooth BT4.x + BR/EDR + BLE: 2402~2480MHz • WCDMA Band 1 (TX): 1920~1980MHz, (RX): 2110~2170MHz • Band 1 (TX): 1920~1980MHz, (RX): 2110~2170MHz • Band 3 (TX): 1710~1785MHz, (RX): 1805~1880MHz •...
