HANDHELD TERMINAL
Quick start guide
PM80
• Please read this manual before using the device and
follow the instructions correctly.
• Some content may differ from your device depending
on the device's software version.

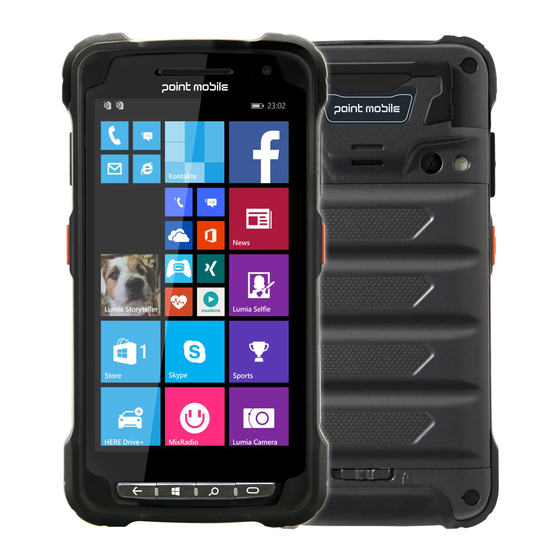

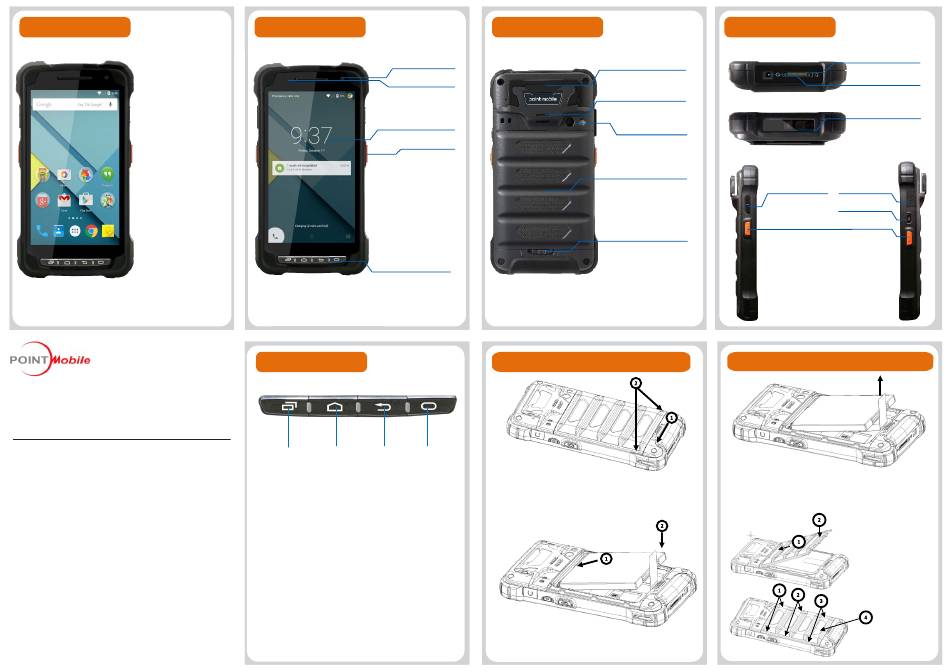

Device layout

Front
Front camera
LED indicator
Touch Screen
Scan key
Menu keys
Menu keys
Home key
Back key
Function key
Recents key
Recents key
• Tap to open the list of recent apps.
Home key
• Press to return to the Home screen while running apps
• Press to return to the Home screen from other screens
• Press and hold to launch internet
Back key
• Tab to return to the previous screen or to close current
screen (dialog box, option menu, notification panel, etc)
Function key
• Press to set functions on keys
• Press to create shortcut of programs
Device layout
Back
MSR
Speaker
Camera & Flashlight
Battery cover
Battery cover lock

Installing battery

1. Rotate lock to counter clockwise and pull up the
battery cover by holding both sides at bottom.
2. Insert battery, top first, into the battery compartment.
Device layout
Up/down & sides
I/O Connector
DC socket
Exit window
Volume Up/Down
Headset jack
Power key
Scan key

Removing battery

3. Hold the ribbon and lift upward to remove battery
4. Insert battery cover,
top first and press it
in the order named
on the picture.
Then press down on
battery at the center
again.
