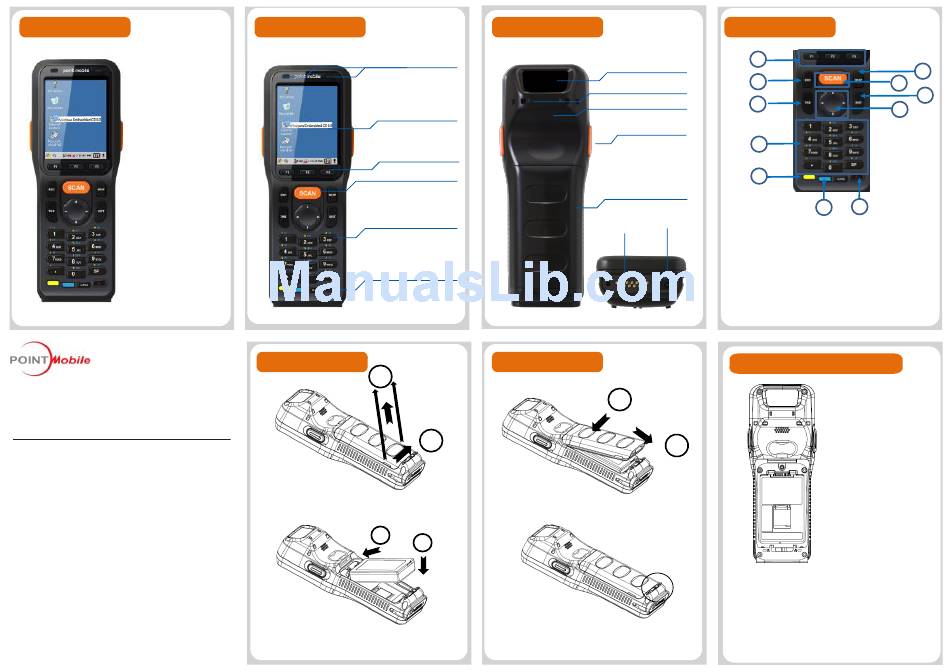

Point Mobile PM200 Quick Reference Manual

Package Contents

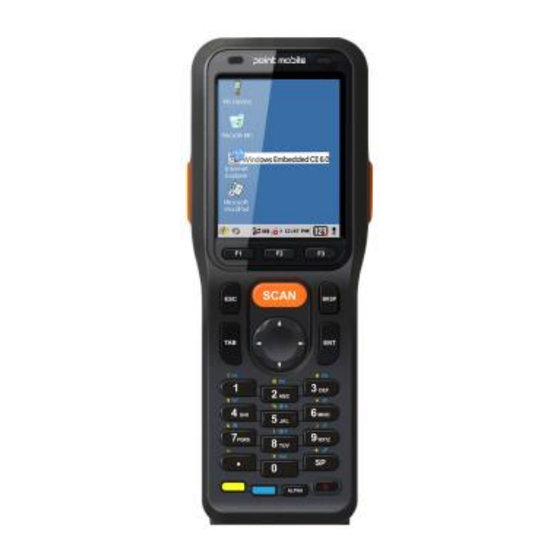

PM200 Terminal
Lanyard with Guitar Pick
5V/2A Power Supply
Battery pack
Manual with COA
LCD Protector Film
HANDY TERMINAL
Quick Reference Manual
PM200
• For more details of product information and user guide,
please refer to our website (www.pointmobile.co.kr)
Product Overview
Front
LED Indicator
Display
Function Key
Scan Key
Keypad
Power Key
Installing battery
2
1
1. Remove the battery compartment door by moving
the Battery door's locks Push.
1
2
2. Insert the battery well with the battery cells facing top.
Product Overview
Back
Scanner
Hole for Lanyard
with Guitar Pick
Speaker
Side Scan Key
Battery Cover
USB Port
I/O Connector
Down
Removing battery
1
2
3. Replace the battery door to start from top to bottom
door's lock downwards.
4. Check the battery lock
.
Keyboard
3
5
2
6
4
2
7
1
8
1. Power Key
2. Scan Key: Bar cord Scanner (front, left/right side Orange)
3. Function key (F1-F3) Program Function Key
4. Navigation Key: left/right/upper/down move
5. ESC : returns to closing stage of program and stage before
6. TAB : Moves to next control (Indent function to Text editor)
7. Yellow Key: Modifies the next key pressed to type specific
functions.
8. Blue Key: Modifies the next key pressed to type specific
function
9. Enter: Performs the same function as the Enter key on a
workstation.
10. Backspace: moves the cursor back one space.
Installing/ Removing Micro SD card
Installing Micro SD card
1. Remove battery from device and
insert Micro SD card.
2. Insert battery again after installing
Micro SD card.
Removing Micro SD card
1. Press Micro SD card gently and
slide it out.
2. Remove Micro SD card from
device
3. Insert battery again.
<Caution>
•
Micro SD card is not standard, it is optional accessory.
Do purchase it from distributor.
•
Device supports storage extension up to 32GB with Micro
SD card. Turn off the device before removing battery
•
Due to installing/removing battery, save the working data
first and then install or remove Micro SD card.
