Adding an IPP Printer

Click Forward to open the New Printer dialogue (refer to Figure 34.3, "Adding a Local Printer"). If the
printer has been automatically detected, the printer model appears in Select Connection. Select the
printer model and click Forward to continue.
If the device does not automatically appear, select the device to which the printer is connected (such
as LPT #1 or Serial Port #1) in Select Connection.

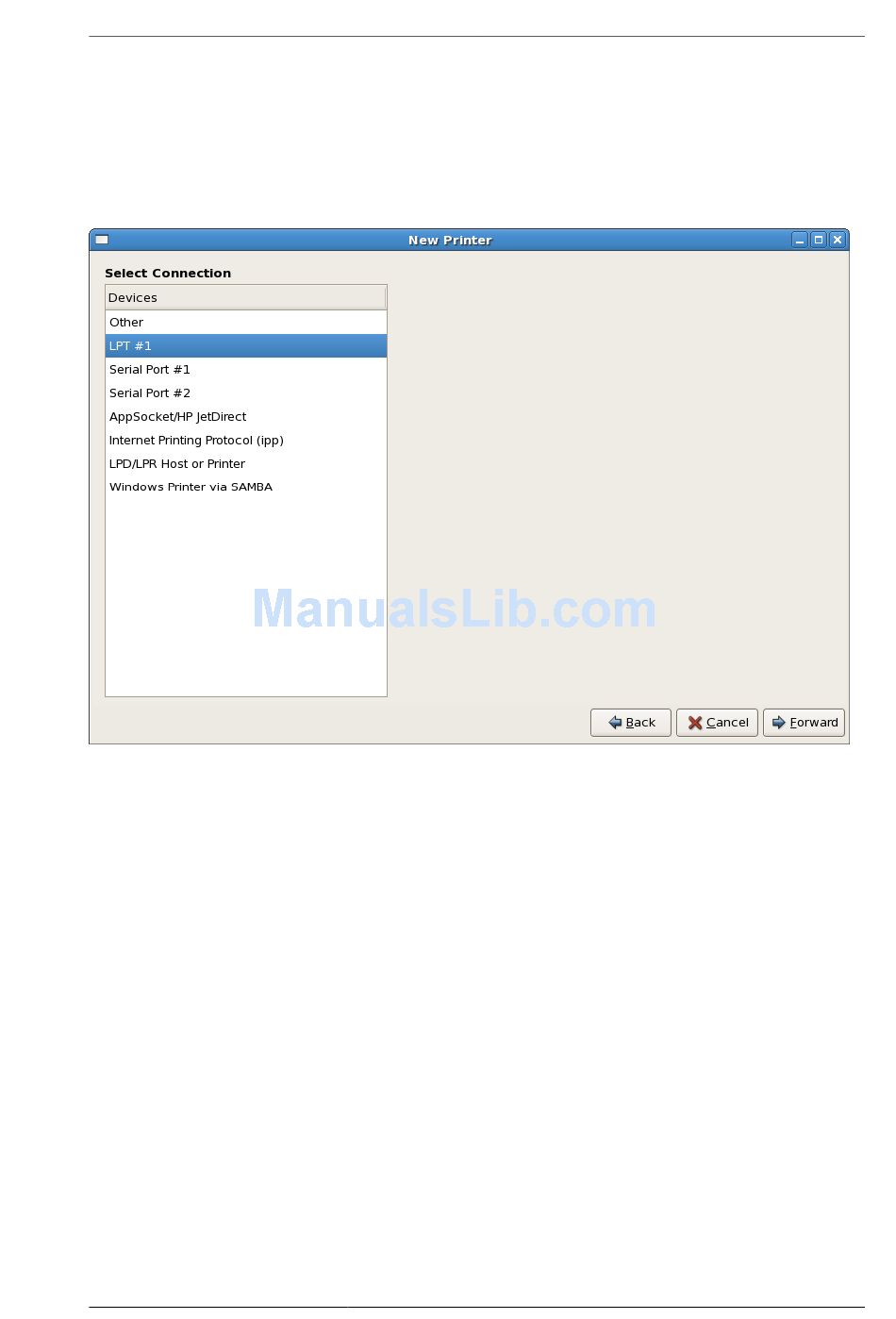

Figure 34.3. Adding a Local Printer
Section 34.5, "Selecting the Printer Model and Finishing"
Next, select the printer type. Refer to for
details.
34.2. Adding an IPP Printer
An IPP printer is a printer attached to a different system on the same TCP/IP network. The system this
printer is attached to may either be running CUPS or simply configured to use IPP.
If a firewall is enabled on the printer server, then the firewall should be configured to allow send /
receive connections on the incoming UDP port 631. If a firewall is enabled on the client (the
system sending the print request) then the firewall should be configured to allow accept and create
connections through port 631.
You can add a networked IPP printer by clicking the New Printer button in the main Printer
Configuration Tool window to display the window in Figure 34.2, "Adding a Printer". Enter the
Printer Name (printer names cannot contain spaces and may contain letters, numbers, dashes (-),
and underscores (_)), Description, and Location to distinguish this printer from others that you may
configure on your system. Click Forward to proceed.
Figure 34.4, "Adding an IPP Printer", enter the hostname of the IPP printer in
In the window shown in
the Hostname field as well as a unique name for the printer in the Printername field.
