Adding An Ipp Printer - Red Hat ENTERPRISE LINUX 3 System Administration Manual

Chapter 36. Printer Configuration 253

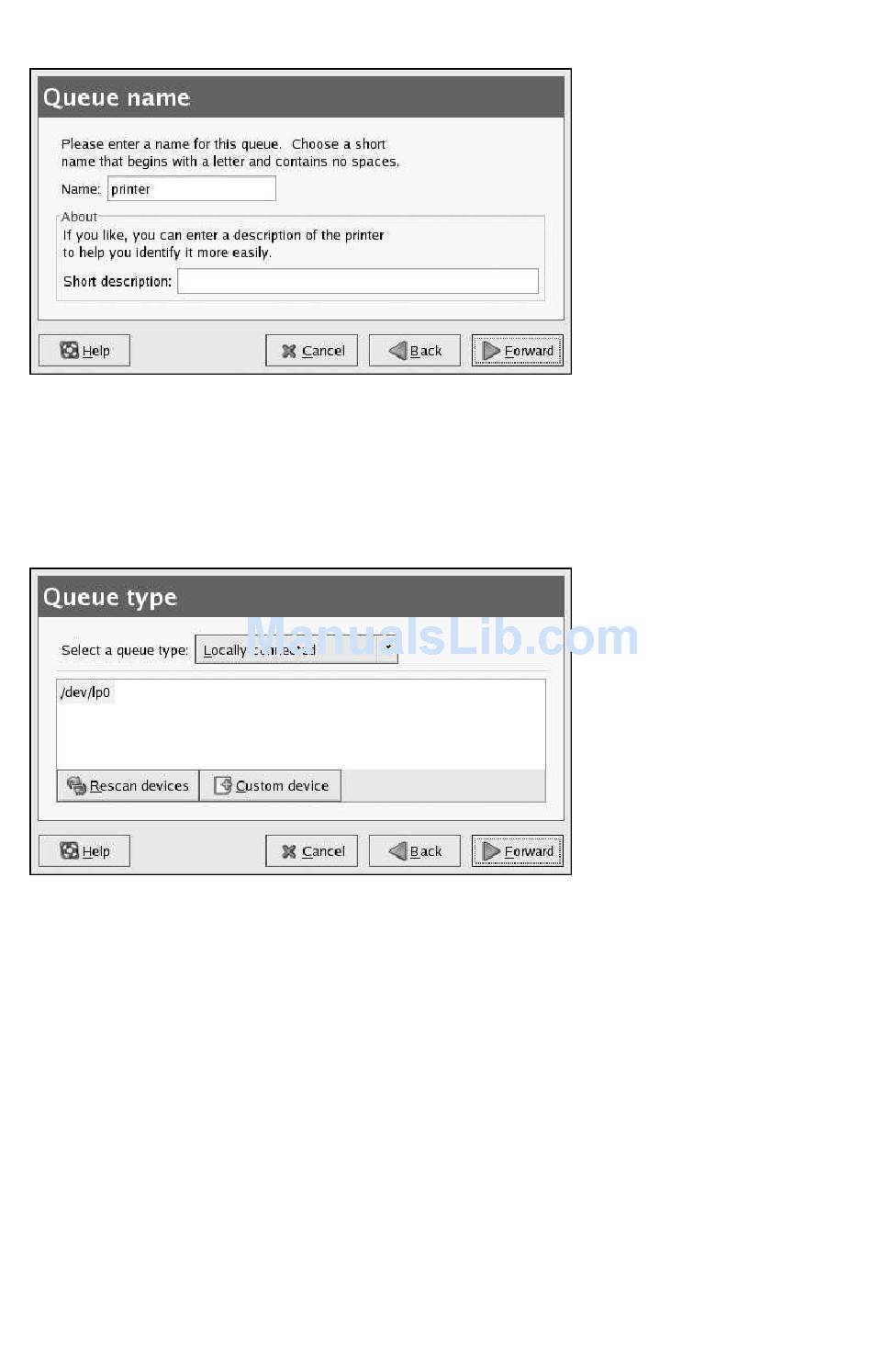

Figure 36-3. Selecting a Queue Name
After clicking Forward, Figure 36-4 appears. Select Locally-connected from the Select a queue type
menu, and select the device. The device is usually for a parallel printer or
/dev/lp0 /dev/usb/lp0
for a USB printer. If no devices appear in the list, click Rescan devices to rescan the computer or
click Custom device to specify it manually. Click Forward to continue.
Figure 36-4. Adding a Local Printer
Next, select the printer type. Refer to Section 36.7 Selecting the Printer Model and Finishing for de-
tails.

36.2. Adding an IPP Printer

An IPP printer is a printer attached to a different Linux system on the same network running CUPS or
a printer configured on another operating system to use IPP. By default, the Printer Configuration
Tool browses the network for any shared IPP printers. (This option can be changed by selecting Action
=> Sharing from the pulldown menu.) Any networked IPP printer found via CUPS browsing appears
in the main window under the Browsed queues category.
If you have a firewall configured on the print server, it must be able to send and receive connections
on the incoming UDP port, 631. If you have a firewall configured on the client (the computer sending
the print request), it must be allowed to send and accept connections on port 631.
