Model
GP5136GB
Updated 06/24
Contents:
Installation Instructions:
Pump Specifications:
Exploded View:
Parts List:
Kits/Torque Specs:
Repair Instructions:
Dimensions:
Warranty Information

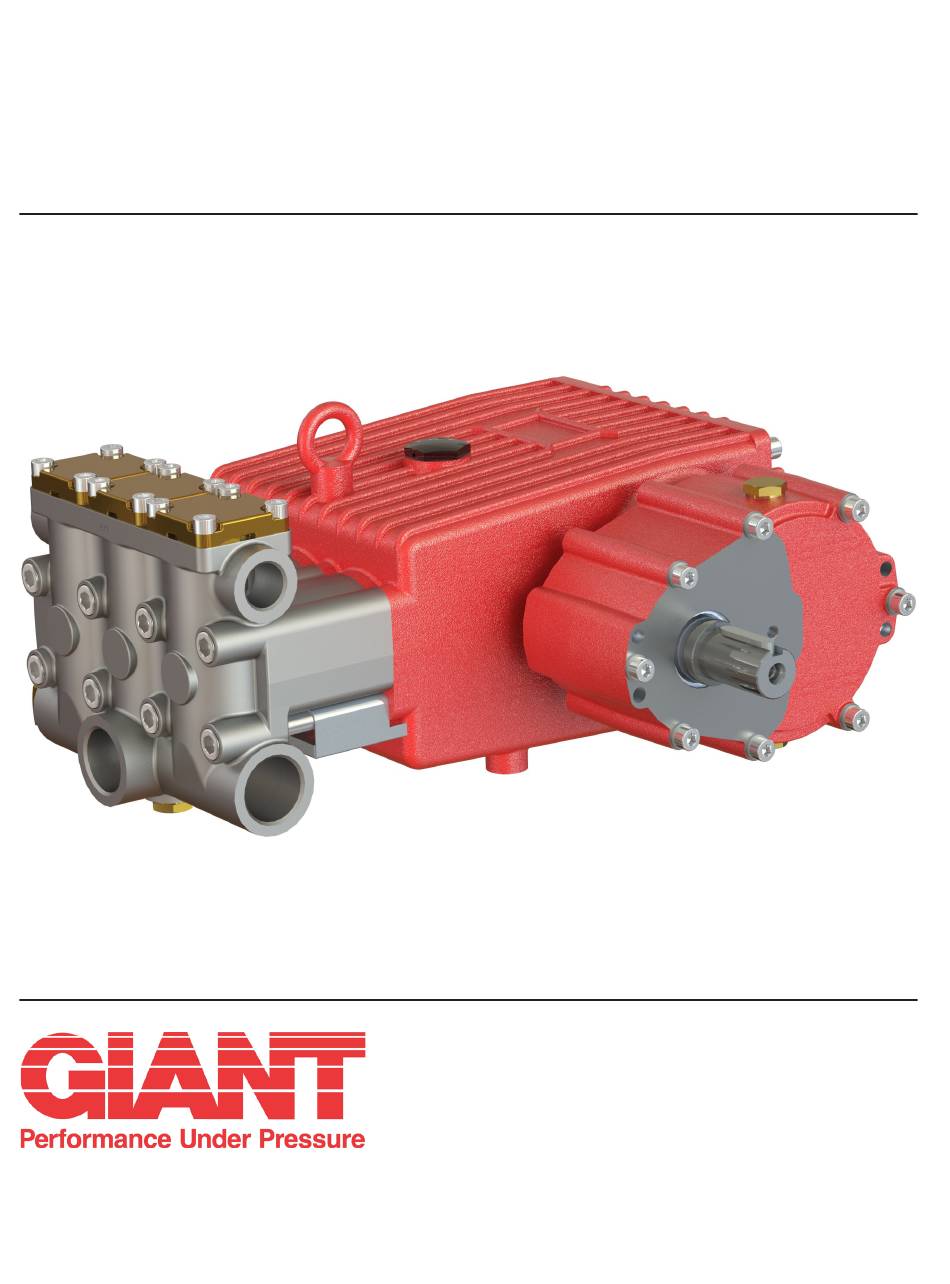

Triplex Ceramic
Plunger Pump
Operating Instructions /
Manual
page 2
page 3
page 4
page 5
page 5
pages 6-7
back page
back page
Advertisement
Table of Contents
Related Manuals for Giant GP5136GB
Summary of Contents for Giant GP5136GB
- Page 1 Triplex Ceramic Model Plunger Pump Operating Instructions / Manual GP5136GB Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View: page 4 Parts List: page 5 Kits/Torque Specs: page 5 Repair Instructions: pages 6-7 Dimensions: back page Updated 06/24...
-
Page 2: Installation Instructions
Oil: Use only 1.4 control. gallons (5.4 liters) of Industrial Gear Lube Oil (Giant p/n 01154) or ISO VG 220 (e.g. Aral Cavitation and/or compression of gases Degol BG220) or SAE 90 gear oil. lead to uncontrollable pressure-kicks which... -
Page 3: Specifications
Specifications Model GP5136GB U.S. (Metric) Volume............33.8 GPM ....127.8 L/min Discharge Pressure ........2320 PSI ....160 bar Power Required ..........56.0 BHP ....41.8 kW Speed (Continuous)............... 910 RPM Inlet Pressure ..........-4.35 to145 PSI ..-0.3 to 10 bar Plunger Diameter..........1.42” ......36 mm Crankshft Stroke ...........1.81”... - Page 4 GP5136GB Exploded View...
- Page 5 GP5136GB Spare Parts List ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 03248 Crankcase 12055 O-Ring 13000 Oil Filler Plug Assembly 08059 O-Ring 05943 Oil Sight Glass Assembly 13304 Inlet Valve Seat 13267 Crankcase Cover 13306 Valve Plate 13268 O-Ring...
- Page 6 GP5136GB Repair Kits Plunger Packing Kit - #09229 Inlet Valve Kit - #09231 Item Part# Description Qty. Item Part # Description Qty. 08183 O-Ring 12055 O-Ring 08059 O-Ring 13289 O-Ring 13291 Grooved Ring 13304 Valve Seat 07144 V-Sleeve 13306 Valve Plate...
- Page 7 GP5136GB Repair Instructions Important! Care must be taken that no glue gets between the plunger pipe (29B) and the centering sleeve (29A). The plunger pipe should not be strained by eccentric tightening of the tension screw or through damage to front of surface of plunger, otherwise it will probably break.
- Page 8 A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration. Call (419)-531-4600 or fax (419)-531-6836 to obtain an R.G.A.
