Models
GP5132, GP5132-SSP,
GP5136, GP5142 & GP5145
Updated 05/18
Contents:
Installation Instructions:
Pump Specifications:
Exploded View:
Parts List:
Kits/Torque Specs:
Repair Instructions:
Dimensions:
Warranty Information

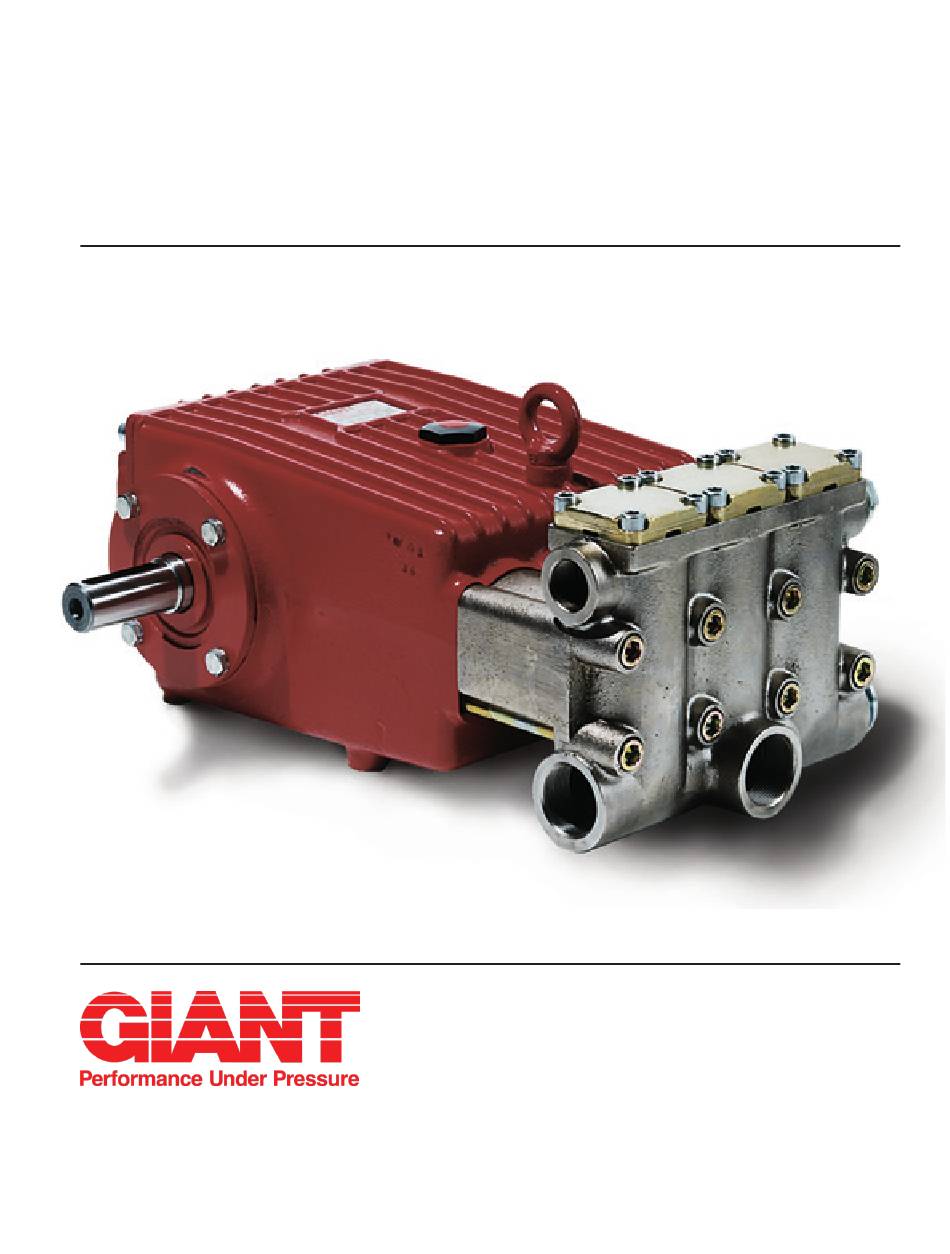

Triplex Ceramic
Plunger Pump
Operating Instructions /
Manual
page 2
page 3
page 4
page 5
page 6
page 7
back page
back page
Advertisement
Related Manuals for Giant GP5132
Summary of Contents for Giant GP5132
- Page 1 Models Triplex Ceramic Plunger Pump Operating Instructions / GP5132, GP5132-SSP, Manual GP5136, GP5142 & GP5145 Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View: page 4 Parts List: page 5 Kits/Torque Specs: page 6 Repair Instructions: page 7...
-
Page 2: Installation Instructions
Oil: Use only 1.2 gallons Cavitation and/or compression of gases lead (4.6 liters) of Industrial Gear Lube Oil (Giant p/n to uncontrollable pressure-kicks which can 01154) or ISO VG 220 (e.g. Aral Degol BG220) ruin pump and unit parts and also be dan- or SAE 90 gear oil. - Page 3 GP5100 SERIES PUMP SPECIFICATIONS Max. Max. Max. Power Max. Plunger NPSH Flow Pressure Speed Req’d. Temp. Diameter Required Model Ft-Head GP5132 27.7 2900 1000 1.26 27.9 GP5132* 3000 1444 1.26 27.9 GP5136 33.8 2320 1.42 27.9 GP5142 40.4 1885 54.4 1.65...
- Page 4 EXPLODED VIEW - GP5132, GP5132-SSP, GP5136, GP5142 & GP5145 PUMPS...
- Page 5 GP5132, GP5132-SSP, GP5136, GP5142 & GP5145 SPARE PARTS LIST ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 13266 Crankcase 13026 Pressure Ring 13000 Oil Filler Plug Assembly (GP5132/-SSP) 05943 Oil Sight Glass Assy. 07142 Pressure Ring (GP5136) 13267 Crankcase Cover...
- Page 6 GP5132, GP5132-SSP, GP5136, GP5142 and GP5145 REPAIR KITS Plunger Packing Kits Valve Assembly Kits GP5132/GP5132-SSP #09290 Inlet Valve Kit, GP5100 Series, #09231 Item Part# Description Qty. Item Part # Description Qty. 08183 O-Ring 12055 O-Ring 13360 Grooved Ring 08059 O-Ring...
- Page 7 (25) thoroughly. Then place new plunger pipe carefully through the oiled seals into the seal case. Check o-rings on seal sleeves and seal case (GP5132/GP5132-SSP only) and replace worn o-rings. Then push seal sleeve together with plunger pipe into the crankcase guide. Turn gear carefully until plunger (25) comes up against the plunger pipe.
- Page 8 NON-SALINE, clean water applications. 2. One (1) year from the date of shipment for all other Giant industrial and consumer pumps. 3. Six (6) months from the date of shipment for all rebuilt pumps.
