Model
GP7132 & GP7136
Contents:
Warranty Information:

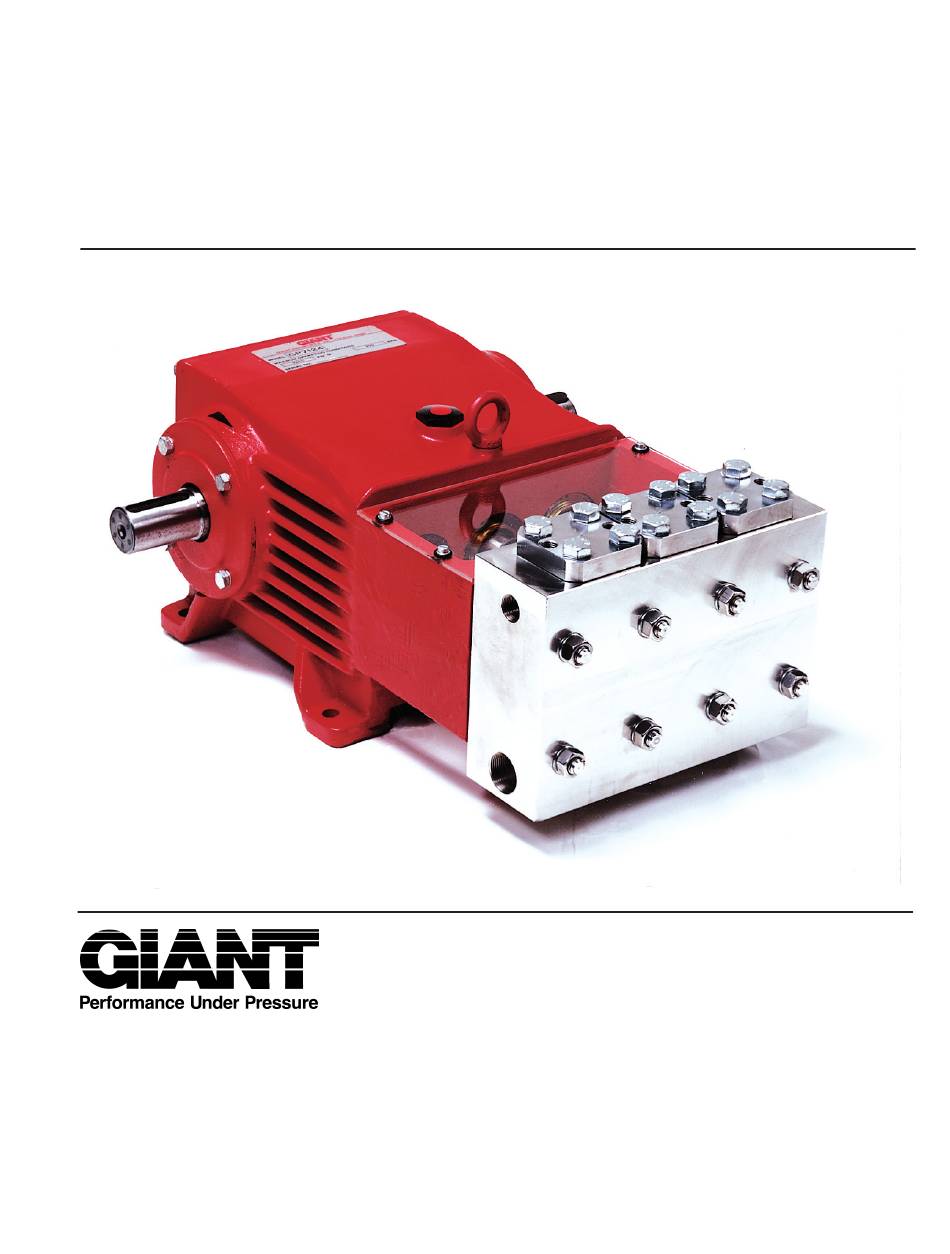

Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service
Manual
page 2
page 3
page 4
page 5
page 6
pages 7-9
page 9
page 10
page 10
page 11
back page
Advertisement
Table of Contents
Related Manuals for Giant GP7132
Summary of Contents for Giant GP7132
-
Page 1: Table Of Contents
Triplex Ceramic Plunger Pump Model Operating Instructions/ Repair and Service Manual GP7132 & GP7136 Contents: Installation Instructions: page 2 GP7132 Pump Specifications: page 3 Exploded View: page 4 Parts List/Kits page 5 GP7136 Pump Specifications: page 6 Repair and Service:... -
Page 2: Installation Instructions
IMPORTANT: When operating in high humidity or wide temperature fluctuations, oil must be changed if condensate or frothy oil occurs in crankcase. NOTE: Contact Giant Industries for Service School Information. Phone: (419)-531-4600. -
Page 3: Gp7132 Pump Specifications
GP7132 Pump Specifications U.S. Metric Maximum Volume** ............23.4 GPM ........88.5 L/min Maximum Discharge Pressure**........4350 PSI .......... 300 Bar Maximum Speed** ........................750 RPM Inlet Pressure ..............-4.35 to 145 PSI......-0.3 to 10 Bar Plunger Diameter.............1.3” .............32mm Plunger Stroke ..............2.0” .............52mm Crankshaft Diameter............1.9” .............48mm Key Width ................0.6”... -
Page 4: Exploded View
Exploded View - GP7132 and GP7136 Pumps... -
Page 5: Parts List/Kits
49A, 50A, 66 and 67) 06793 Plunger Pipe, GP7136 07662 Valve Tool (not shown) 07664 Tensioning Screw 07665 Copper Ring GP7132 and GP7136 PUMP REPAIR KITS Plunger Packing Kits Valve Assembly Kit - #09520 # 09519 (GP7132) Item Part # Description Qty. -
Page 6: Gp7136 Pump Specifications
GP7136 Pump Specifications U.S. Metric Maximum Volume** ............28.3 GPM ........107 L/min Maximum Discharge Pressure**........3625 PSI .......... 250 Bar Maximum Speed** ........................700 RPM Inlet Pressure ..............-4.35 to 145 PSI......-0.3 to 10 Bar Plunger Diameter.............1.4” .............36mm Plunger Stroke ..............2.0” .............52mm Crankshaft Diameter............1.9” .............48mm Key Width ................0.6”... -
Page 7: Repair And Service: Pages
GP7132 AND GP7136 REPAIR INSTRUCTIONS NOTE: Always take time to lubricate all metal and non-metal parts with a light film of oil before reassembling. This step will help ensure proper fit, at the same time protecting the pump non-metal parts (elastomers) from cutting and scoring. - Page 8 GP7132 AND GP7136 REPAIR INSTRUCTIONS Separate plunger Pull seal sleeves (39) (36A) from crosshead out of their fittings in (25) by means of one the crankcase. Take open-end wrench seal case (38) out of (M36). seal sleeve (39). Take a thin 10.
-
Page 9: Torque Specs
GP7132 AND GP7136 REPAIR INSTRUCTIONS CAUTION: Don’t loosen the 3 plunger (36) before the valve casing has been removed otherwise the plunger (36) could hit against the spacer pipe (51F) when the pump is being turned. Seal life can be increased if the pretensioning allows for a little leakage. This assists lubrication and keeps the seals cool. -
Page 10: Trouble Shooting Chart
Replace plungers Inlet pressure too high Reduce inlet pressure High Crankcase Wrong Grade of oil Giant oil is recommended Temperature Improper amount of oil in crankcase Adjust oil level to proper amount Preventative Maintenance Check-List & Recommended Spare Parts List... -
Page 11: Dimensions
GP7132 and GP7136 Dimensions - Inches (mm) - Page 12 A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under war- ranty consideration. Call (419)-531-4600 or fax (419)-531-6836 to obtain an R.G.A. number.
