Model
GP5132GB-180
Updated 02/23
Contents:
Installation Instructions:
Pump Specifications:
Exploded View:
Parts List:
Kits/Torque Specs:
Repair Instructions:
Dimensions:
Warranty Information
Triplex Ceramic
Plunger Pump
Operating Instructions /
Manual
page 2
page 3
page 4
page 5
page 5
pages 6-7
back page
back page
Advertisement
Table of Contents
Related Manuals for Giant GP5132GB-180
Summary of Contents for Giant GP5132GB-180

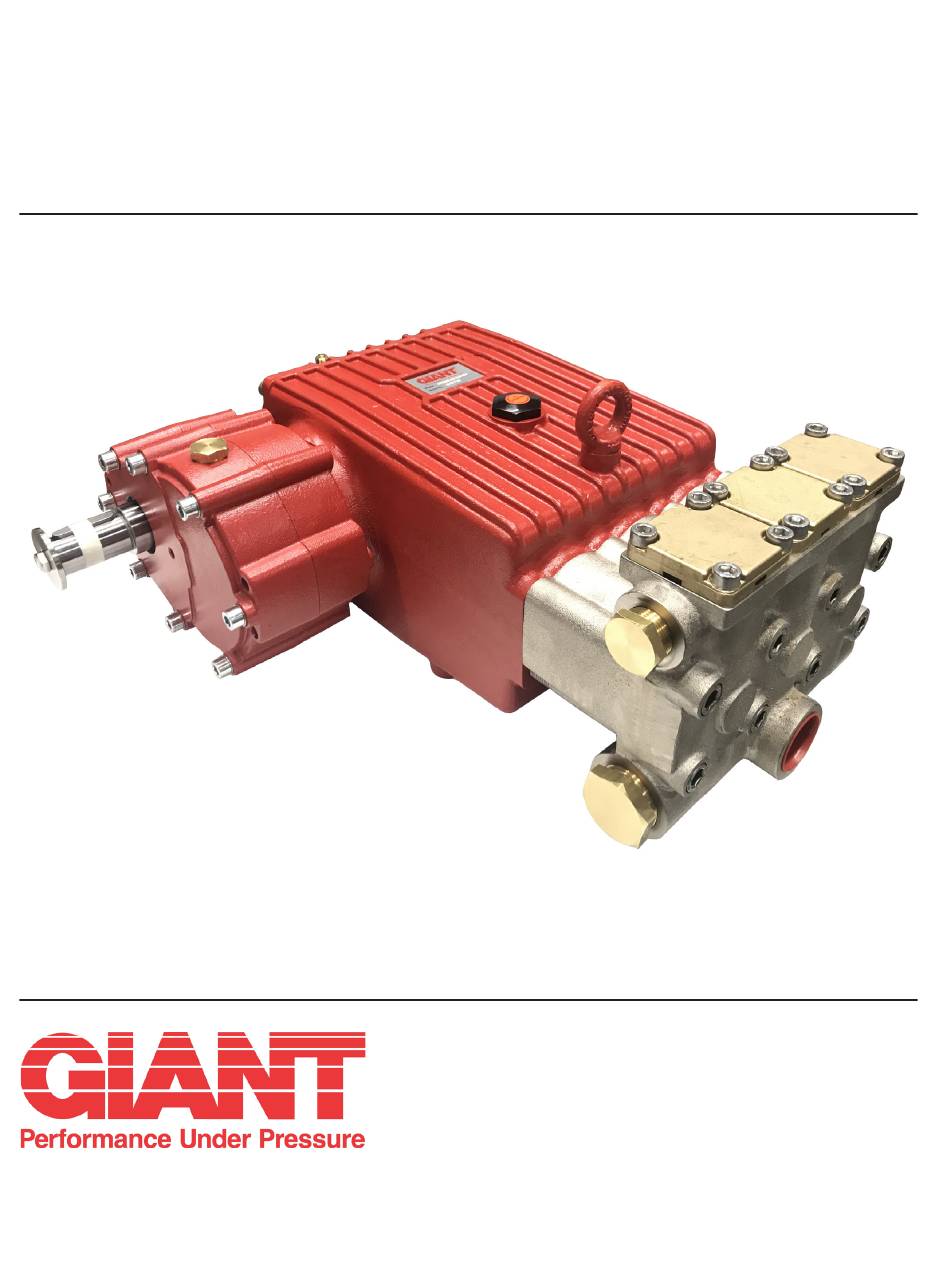

- Page 1 Triplex Ceramic Model Plunger Pump Operating Instructions / Manual GP5132GB-180 Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View: page 4 Parts List: page 5 Kits/Torque Specs: page 5 Repair Instructions: pages 6-7 Dimensions: back page Warranty Information...
-
Page 2: Installation Instructions
Oil: Use only 1.4 control. gallons (5.4 liters) of Industrial Gear Lube Oil (Giant p/n 01154) or ISO VG 220 (e.g. Aral Cavitation and/or compression of gases Degol BG220) or SAE 90 gear oil. lead to uncontrollable pressure-kicks which... -
Page 3: Specifications
Specifications Model GP5132GB-180 U.S. (Metric) Volume (Continuous)........27.2 GPM ....104.9 L/min Volume (Intermittent) ........40 GPM ....151.4 L/min Discharge Pressure ........3000 PSI ....200 bar Power Required (Continuous) ......57.0 BHP ....42.8 kW Power Required (Intermittent) ......83 BHP ....61.9 kW Speed (Continuous)............... - Page 4 GP5132GB-180 Exploded View...
- Page 5 GP5132GB-180 Spare Parts List ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 03248 Crankcase 13302 Inlet Valve Assembly 13000 Oil Filler Plug Assembly 12055 O-Ring 05943 Oil Sight Glass Assembly 08059 O-Ring 13267 Crankcase Cover 13304 Inlet Valve Seat 13268...
- Page 6 O-Ring 13284 Oil Seal 07700 O-Ring 13314 Valve Seat 13306 Valve Plate 13307 Valve Spring GP5132GB-180 Torque Specifications/Lubrication Information Position Item# Description Lubrication Torque Amount 03248 Crankcase Molycote Cu-Paste 05943 Oil Sight Glass Assembly Loctite 572 22 ft.-lbs. (30 Nm)
- Page 7 GP5132GB-180 Repair Instructions Important! Care must be taken that no glue gets between the plunger pipe (29B) and the centering sleeve (29A). The plunger pipe should not be strained by eccentric tightening of the tension screw or through damage to front of surface of plunger, otherwise it will probably break.
- Page 8 A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration. Call (419)-531-4600 or fax (419)-531-6836 to obtain an R.G.A.
