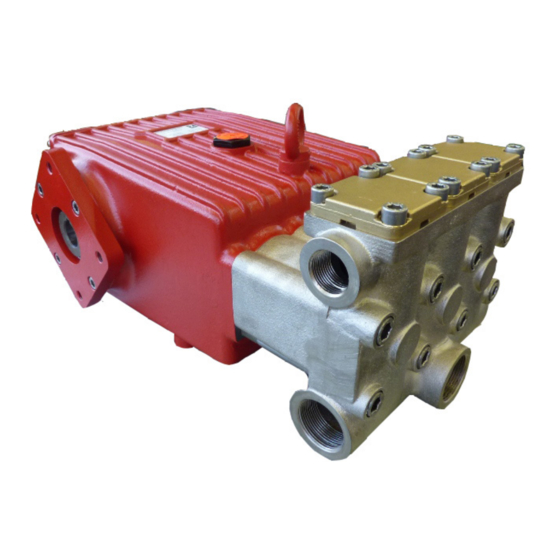

  • Page 1 Model Triplex Ceramic Plunger Pump Operating Instructions / Manual GP5132HS Hydraulic Drive Pump Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View: page 4 Parts List: page 5 Kits/Torque Specs: page 5 Repair Instructions: page 6 Dimensions: page 7...
  • Page 2 Finally, remember that high pressure opera- The use of a dampener with Giant Industries, Inc. tion in a pump system has many advantages. pumps is optional, although recommended by Giant But, if it is used carelessly and without Industries, Inc.
  • Page 3 (GPM X PSI) / 1450 = HP pump GPM. For the Application of a Hydraulic Motor: To Determine the Torque of a Hydraulic Motor -- (GPM x PSI x 36.77) / RPM = Torque (in-lbs) GP5132HS Torque Specifications Position Item# Description Torque Amount - Ft.-lbs (NM)
  • Page 4 GP5132HS Exploded View...
  • Page 5 GP5132HS Spare Parts List ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 13266 Crankcase 13359 Seal Sleeve 13000 Oil Filler Plug Assembly 08183 O-Ring 05943 Oil Sight Glass Assy. 13360 Grooved Ring 13267 Crankcase Cover 13361 Seal Case 13268 O-Ring...
  • Page 6 GP5132HS Repair Instructions To Check Valves Remove inner hexagon screw (48A) and remove plugs (48) with a screwdriver. Check O-rings on plugs (48B). Pull out tension spring (48C). Take spacer pipe (46D) together with the discharge valve out of the valve casing using a clipring pliers or a ø22 extractor tool.
  • Page 7 GP5132HS Dimensions Inches (mm)
  • Page 8 A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration. Call (419)-531-4600 or fax (419)-531-6836 to obtain an R.G.A.
