Models
GP8055-Brine
GP8060-Brine
GP8065-Brine
Updated 10/20
Contents:
Installation Instructions:
Pump Specifications:
Exploded View/Parts List:
Repair Kits/Tool List:
Torque Specifications:
Troubleshooting Chart:
Repair Instructions:
Dimensions:
Warranty Information

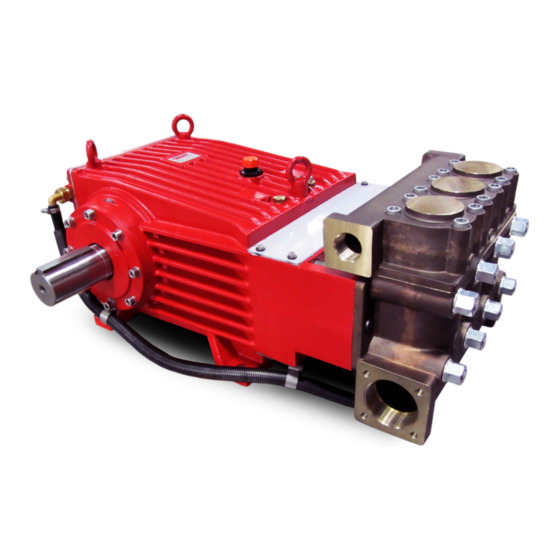

Triplex Ceramic
Plunger Pump
Models Manual
page 2
page 3-5
pages 6-7
page 8
page 8
page 8
pages 9-11
back page
back page
Advertisement
Related Manuals for Giant GP8055-Brine
Summary of Contents for Giant GP8055-Brine

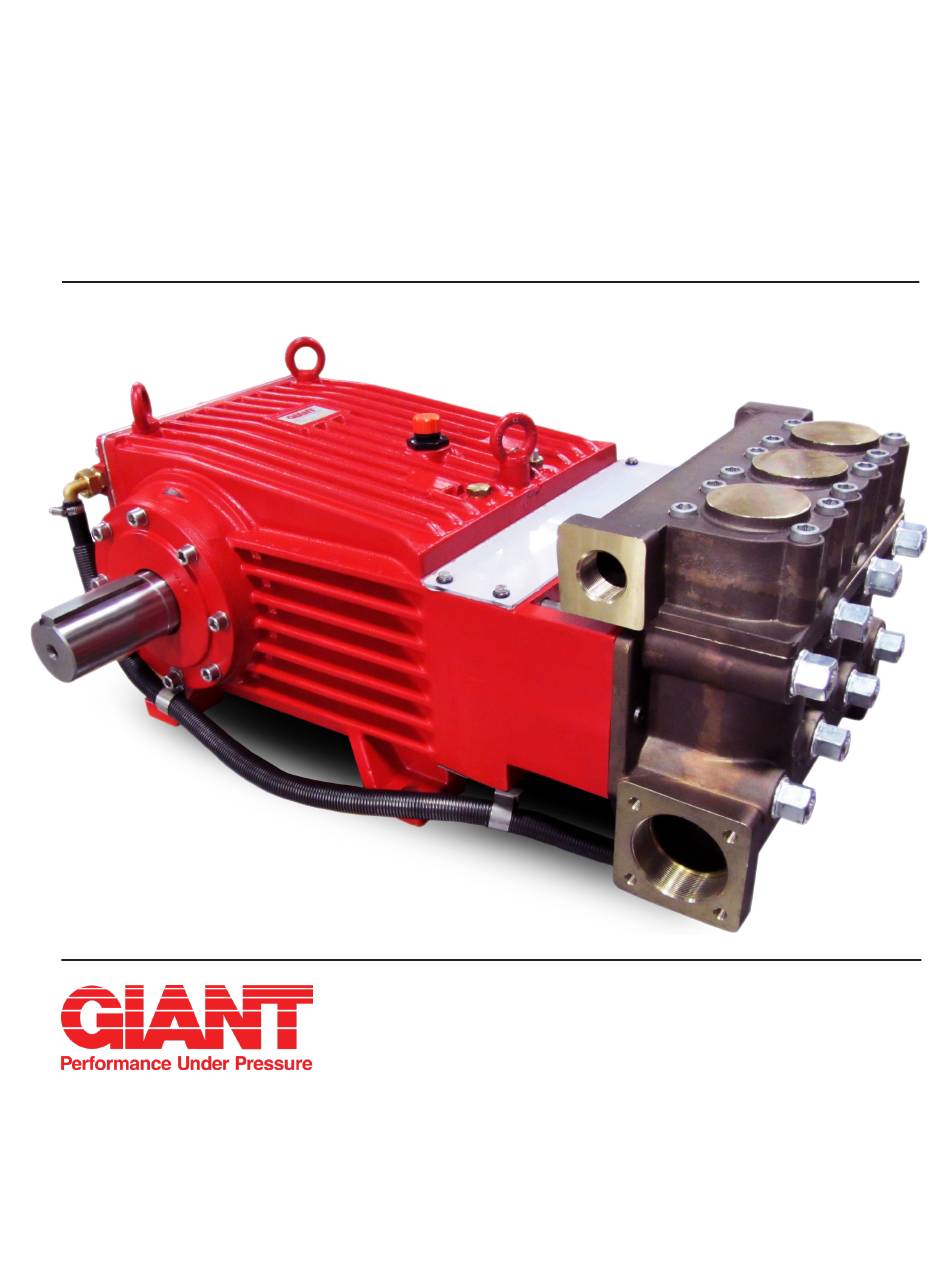

- Page 1 Models Triplex Ceramic Plunger Pump Models Manual GP8055-Brine GP8060-Brine GP8065-Brine Contents: Installation Instructions: page 2 Pump Specifications: page 3-5 Exploded View/Parts List: pages 6-7 Repair Kits/Tool List: page 8 Torque Specifications: page 8 Troubleshooting Chart: page 8 Repair Instructions: pages 9-11...
-
Page 2: Installation Instructions
GL4 (e.g. Aral Degol BG220) or SAE 90 GL4 gear oil and which is also fed through the cooling system (Giant p/n 01154). Initial change after 50 operating must not exceed 86 °F (30°C). The amount which hours and then every 1000 operating hours after one is fed into the cooling system depends on the pump year at the latest. - Page 3 Specifications Model GP8055-Brine U.S. (Metric) Volume ............Up to 75.3 GPM ......(285 LPM) Discharge Pressure ........Up to 3000 PSI .......(200 bar) Power Consumption ......... 145 BHP ..........108 kW Speed ............Up to 580 RPM ....... 580 RPM Inlet Pressure ..........Up to 29 PSI ........(2.0 bar) Plunger Diameter ........
- Page 4 Specifications Model GP8060-Brine U.S. (Metric) Volume ............Up to 89.0 GPM ......(340 LPM) Discharge Pressure ........Up to 2465 PSI ......... (170 bar) Power Consumption ......... 142 BHP ..........106 kW Speed ............Up to 580 RPM ........580 RPM Inlet Pressure ..........Up to 29 PSI ........(2.0 bar) Plunger Diameter ........
- Page 5 Specifications Model GP8065-Brine U.S. (Metric) Volume ............Up to 105.7 GPM ......(400 LPM) Discharge Pressure ........Up to 2000 PSI .........(140 bar) Power Consumption .........147 BHP ..........110 kW Speed ............Up to 580 RPM ......... 580 RPM Inlet Pressure ..........Up to 29 PSI ........(2.0 bar) Plunger Diameter ........2.55”...
- Page 6 Exploded View - GP8055/GP8060/GP8065 - Brine...
- Page 7 Part List - GP8055/GP8060/GP8065 - Brine Item Part Description Item Part Description 05380 Crankcase 06996 Seal Ring (GP8065) 06893 Oil Filler Plug Assembly with Vent 05276 Pressure Ring (GP8055) 22929 Copper Washer 05068 Pressure Ring (GP8060) 12256 Plug, 3/8” BSP 05117 Pressure Ring (GP8065) 05656...
-
Page 8: Troubleshooting
Pump Repair Kits - GP8055/GP8060/GP8065 - Brine Plunger Packing Kits Oil Seal Kit - #09584 GP8055 - #09616 Item Part # Description Qty. Item Part # Description Qty. 05058 Radial Shaft Seal 38A 13286 O-Ring 33A 05056 O-Ring 38B 05281 Support Ring Inlet Valve Kit - #09587-0100 39A 05066... - Page 9 Pump Repair Instructions - GP8055/GP8060/GP8065 - Brine Valve Inspection and Repair Remove bolts (58). 2) Remove discharge 3) Take out pressure springs casing (50B) up and away. (57A). Pull out assembled valves (51 & 52) with fitting tool. 4) The spring tension cap (51A, 52A) is screwed together with the valve seat (51B or 52B).
- Page 10 Pump Repair Instructions - GP8055/GP8060/GP8065 - Brine 8) Take out the seal case (38) from the valve (if Be careful not to damage the seal necessary secure 2 screwdrivers in the front O-ring sleeve (39) and pressure ring (41). Check the inner groove to extract seal casing from valve casing).
- Page 11 Pump Repair Instructions - GP8055/GP8060/GP8065 - Brine To Dismantle Crankcase Gear 11) Take out plungers and seal sleeves as described 12) Remove the connecting rod screws (24). above. Drain the oil by taking off the plug (12). After Connecting rods are marked 1 to removing the clip ring (33B), lever out the seal retainer 3 for identification.
- Page 12 Liability under this warranty is on all non-wear parts and limited to the replacement or repair of those products returned freight prepaid to Giant Industries which are deemed to be defective due to workmanship or failure of material. A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration.
