Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service
Manual
page 2
page 3
page 4
page 5
pages 6-7
page 7
page 7
back page
Advertisement
Related Manuals for Giant GP7170-4000
Summary of Contents for Giant GP7170-4000

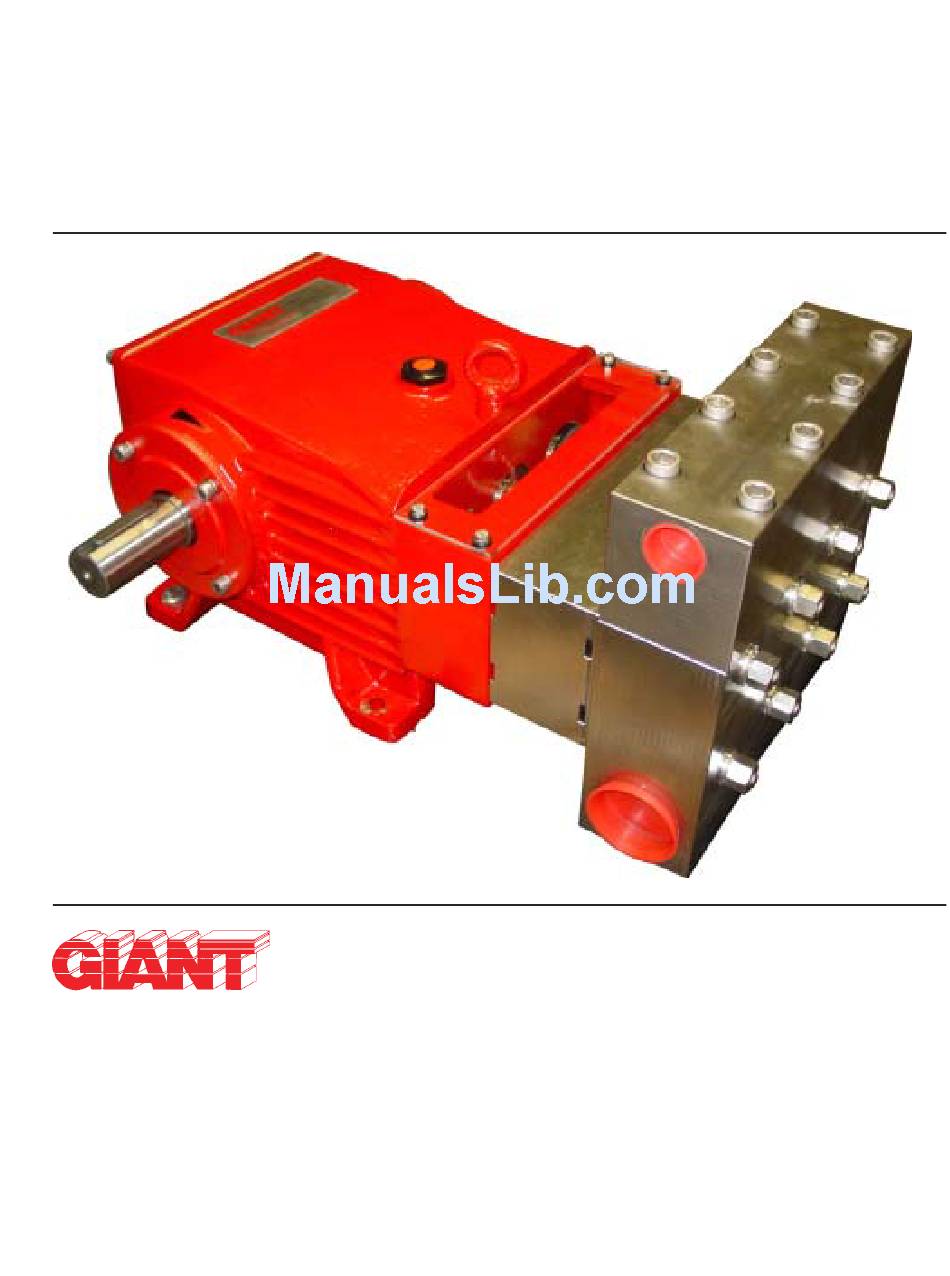

- Page 1 Triplex Ceramic Plunger Pump Model Operating Instructions/ Repair and Service Manual GP7170-4000 Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View: page 4 Parts List/Kits: page 5 Repair Instructions: pages 6-7 Torque Specifications: page 7 Recommended Spare Parts List: page 7 Warranty Information: back page...
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS Installation of the Giant Industries, Inc., pump is recommended by Giant Industries, Inc. to further not a complicated procedure, but there are some reduce system pulsation. Dampeners can also basic steps common to all pumps. The following reduce the severity of pressure spikes that occur information is to be considered as a general in systems using a shut-off gun. - Page 3 Specifications Model GP7170-4000 U.S....... Metric Volume ..............84.5 GPM ..... 320 LPM Discharge Pressure ..........1450 PSI ....... 100 bar Speed ......................Up to 700 RPM Inlet Pressure ....................Up to 90 PSI (10 bar) Plunger Diameter ..........2.48” ......63 mm Plunger Stroke .............
- Page 4 Exploded View - GP7170-4000...
- Page 5 GP7170-4000 PARTS LIST ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 06653 Crankcase 05234 Seal Sleeve 13000 Oil Filler Plug Assembly 05235 O-Ring for Seal Retainer 07601 Crankcase Cover 05236 Pressure Ring 07602 Seal for Crankcase Cover 05237 Drip Return Ring 07603 Oil Dip Stick 05238...
- Page 6 GP7170-4000 REPAIR INSTRUCTIONS NOTE: Always take time to lubricate all metal and non-metal parts with a light film of oil before reassembling. This step will help ensure proper fit, at the same time protecting the pump non-metal parts (elastomers) from cutting and scoring. To Check Valves Loosen and remove screws (54 with a 10mm allen wrench.
-
Page 7: Repair Instructions
GP7170-4000 REPAIR INSTRUCTIONS 24) After removing the C-clip (33B), pry out seal adapter (33) with a screwdriver. 25) Check seals (32) and surfaces of plunger base (25). 26) Remove crankcase cover (4). Loosen inner hexagon screws (24A) on the connecting rods (24) and push con rod halves as far into the crosshead guide as possible. - Page 8 A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration. Call (419)-531-4600 or fax (419)-531-6836 to obtain an R.G.A. number.
