Go to www.vtechcanada.com
for the latest VTech product news.
Quick start guide
(Canada version)
on purchasing your new VTech product. Before using this HD video monitor, please read
Important safety instructions.
For support, shopping, and everything new at VTech, visit our website at
www.vtechcanada.com.
What does HD Video Monitor do?

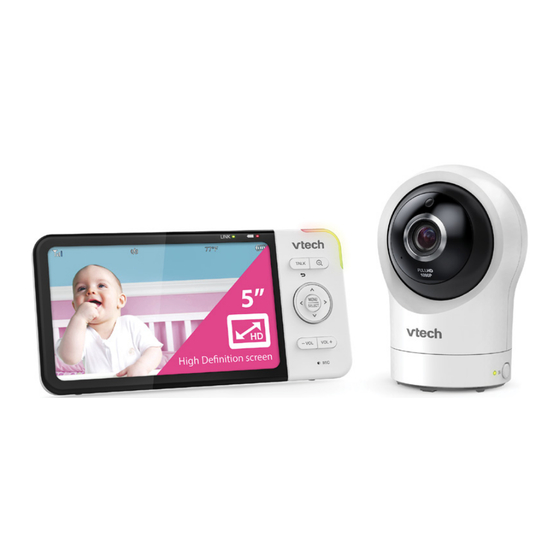

VTech 5-inch Smart Wi-Fi 1080p Pan and Tilt Monitor allows you to stay close to your baby
when you are on the move or away.
This monitor is Wi-Fi enabled, which uses your home wireless network to stream live video and
audio through the HD baby unit and 5-inch color screen parent unit. It allows you to maintain a
constant connection to your baby.
You can also monitor from your smartphone and mobile tablet.
VTech 5-inch Smart Wi-Fi 1080p Pan and Tilt Monitor uses MyVTech Baby 1080p app to let you
instantly see and hear what's happening with your baby from anywhere in the world.
The app can be downloaded from the App Store or the Google Play
smartphone or mobile tablet.
Congratulations
RM5764-2HD
5-inch Smart Wi-Fi 1080p
Pan and Tilt Monitor
For more support information
Store, directly from your
TM
RM5764HD
Advertisement
Table of Contents
Related Manuals for VTech RM5764HD
Summary of Contents for VTech RM5764HD
- Page 1 What does HD Video Monitor do? VTech 5-inch Smart Wi-Fi 1080p Pan and Tilt Monitor allows you to stay close to your baby when you are on the move or away. This monitor is Wi-Fi enabled, which uses your home wireless network to stream live video and audio through the HD baby unit and 5-inch color screen parent unit.
-
Page 2: What's In The Box
Your HD video monitor package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Important safety Quick start guide instructions 1 set for RM5764HD 2 sets for RM5764-2HD Requirements For mobile access: MyVTech Baby 1080p mobile app... -
Page 3: Baby Unit Overview
Overview Baby unit overview Light sensor Camera lens Microphone Infrared LEDs • Allow you to see clearly in a dark surrounding. LED indicator • Orange is steady on when the baby unit is connecting to the parent unit directly in local mode. •... -
Page 4: Parent Unit Overview
Parent unit overview LINK LED light Arrow keys • On when the parent unit is linked to the baby unit. • Press to navigate leftward, upward, • Flashes when the link to the baby unit rightward or downward, within the is lost. -
Page 5: How The System Works
How the system works Direct mode The parent unit and the baby unit of your video monitor connect to each others in Direct mode by default, which allows you to stream live video right out of the box. Direct mode connection lets you stream live video from parent unit only. - Page 6 Protect your privacy and online security VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of industry-recommended best practices to help keep your wireless connection private and your devices protected when online. We recommend you carefully review and consider complying with the following tips.
- Page 7 Connect, charge and power on the baby mon Connect, charge and power on the baby monitor Connect the baby monitor Charge the parent unit battery before use Connect the baby monitor The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power.
- Page 8 Charge the parent unit battery before use The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power. With the battery alone, the parent unit can cordlessly run for a short time only. •...
- Page 9 Parent unit icons Main Main Options Options Menu Menu General settings Monitoring mode (* For RM5764-2HD only) • Connect to home Wi-Fi network. • View baby unit 1 or 2 in Single mode. • Turn on/off Parent unit Wi-Fi Connection. •...
-
Page 10: Basic Operation
Basic operation After powering up your video monitor, the parent unit streams live video in direct mode. We recommend you follow the instructions on screen to set up home Wi-Fi network with your monitor for functionality enhancements and mobile access. See Auto software and firmware update Download app for mobile access... - Page 11 Talk to your baby via the baby unit 1. Press and hold the TALK key. 2. When the icon displays on screen, speak to your parent unit. Your voice is transmitted to the baby unit. 3. When finish talking, release Press and hold the TALK key and hear your baby again.
- Page 12 Test the sound level and position the HD Test the sound level and position the HD video monitor 3. To avoid causing high-pitched screeching noise from your HD video monitor: Make sure your baby unit and parent unit are more than 3 metres apart; OR •...
- Page 13 Make sure your baby unit and parent unit are more than 3 metres apart; OR • • Turn down the volume of your parent unit. 3. To avoid causing high-pitched screeching noise from your HD video monitor: Make sure your baby unit and parent unit are more than 3 metres apart; OR •...
-
Page 14: Minimum Requirement
Download app for mobile access You can download the free MyVTech Baby 1080p mobile app and install it to a mobile device, then use your mobile device and the mobile app to monitor your areas remotely. 1. Press MENU when the parent unit is idle. >... -
Page 15: Need Help
- If the QR code is not clearly displayed, adjust your camera’s focus by moving your device closer or further away until it is clear. 2. Search for the model - RM5764HD or RM5764-2HD. You can also call our Customer Support at 1-888-211-2005 for help. - Page 16 mount the baby unit (optional) Notes 1. Place the wall mount bracket on a NOTES NOTE 2. If you drill the holes into a stud, go wall and then use a pencil to mark to step 3. • Check for reception strength and baby two holes in parallel.
-
Page 17: General Product Care
General product care To keep this product working well and looking good, follow these guidelines: • Avoid putting it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •... -
Page 18: Limited Warranty
Product is fit for ordinary use) are limited to one year from the date of purchase. Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In no event shall VTech... -
Page 19: Technical Specifications
App Store is a trademark of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Specifications are subject to change without notice. © 2021 VTech Technologies Canada Ltd. All rights reserved. 04/21. RM5764-XHD_CA_QSG_V4.
