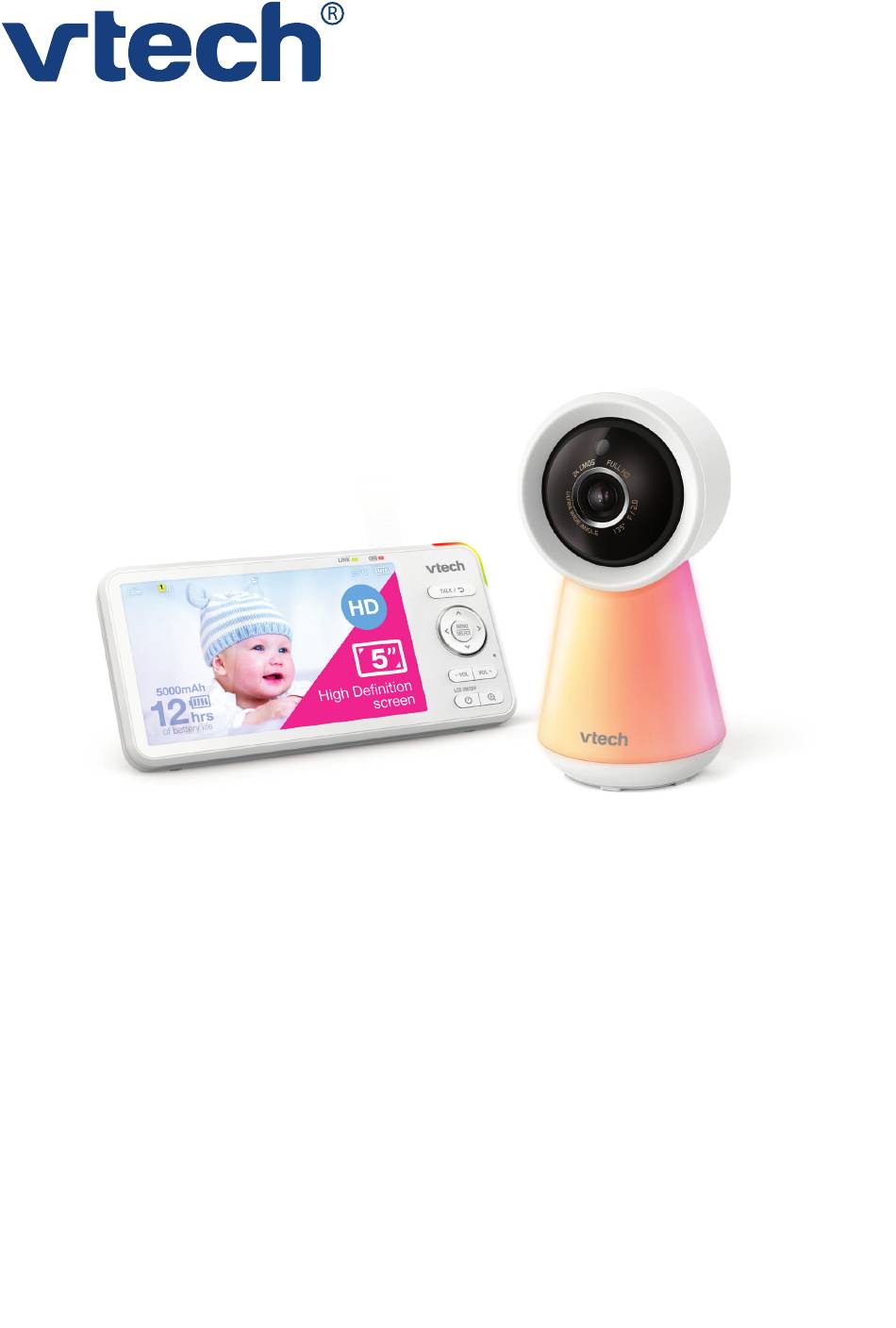

- Page 1 RM5756HD RM5756HD-2 5” Smart Wi-Fi 1080p Video Monitor User Guide This guide contains important information. Please keep it for future reference.
-
Page 2: Table Of Contents
Advanced Operation �������������������������������������������������������������������������������������������26 Download App for Mobile Access ..................26 Set up Wi-Fi Connection ......................27 Select Connection Mode ......................28 Monitoring Modes (RM5756HD-2 only) .................28 Night Light ..........................29 Melodies and Soothing Sounds .....................31 Sound, Motion, Temperature Alerts ..................32 Parent Unit Settings .......................35 Baby Unit Settings .........................36... -
Page 3: Important Safety Instructions
Power adapters information: reassembling can cause electric shock when the Baby Unit Output: 5V DC 1000mA product is subsequently used. VTech Telecommunications Ltd. Model: VT05EAU05100 21. You should test the sound reception every time you Parent Unit Output: 5V DC 2A turn on the units or move one of the components. - Page 4 (more than 3 ft (0.9m) away). Do not Electromagnetic fields (EMF) remove this tag. This VTech product complies with all standards regarding • Never place the camera unit(s) inside the baby’s electromagnetic fields (EMF). If handled properly and crib or playpen.
-
Page 5: Setup
Parent Unit Wall Mount Bracket Baby Unit Parent Unit Adapter Baby Unit Adapter Quick Start Guide 1 set for RM5756HD Learn to set up your units and have all detailed instructions on using your audio 2 sets for RM5756HD-2 baby monitor. -
Page 6: Overview
Overview Baby Unit... - Page 7 Light Sensor Camera Lens Infrared LEDs • Allow you to see clearly in a dark environment. Microphone Night Light Night Light Control Key • Go to Night Light section to learn more. ON/OFF Switch • Power it on or off. LED Indicator •...
- Page 8 Parent Unit...
- Page 9 LINK LED Light • On when the parent unit is linked to the baby unit. • Flashes when the link to the baby unit is lost. LED light • On when the parent unit is connected to AC power, and the battery is charging. •...
-
Page 10: Parent Unit Icons
Parent Unit Icons Main Options Menu Monitoring Mode (*For RM5756HD-2 only) • View baby units in Single mode. • View baby units in Patrol mode. • View baby units in Split screen. Night Light • Turn on or turn off night light. - Page 11 • Software Update. Status Icons Direct Mode Parent unit, baby unit 1 and baby unit 2 (*For RM5756HD-2 only) are connected to each others directly. Wi-Fi Router Mode Parent unit, baby unit 1 and baby unit 2 (*For RM5756HD-2 only) are connected to home Wi-Fi network.
- Page 12 Night light is turned on. Auto night light brightness is activated. Temperature alert is turned on. Parent unit is muted. ) Temperature detected is below setting. ( ) Temperature detected is within setting range. ( ) Temperature detected is above setting. Battery indicator Alert Icons Displays when motion that exceed the set sensitivity level is detected...
-
Page 13: How The System Works
How the System Works? Direct Mode The parent unit and the baby unit of your video monitor connect to each others in Direct mode by default, which allows you to stream live video right out of the box. Direct mode connection lets you stream live video from parent unit only. Local access Tip: You may experience reduced signal strength if your parent unit and baby unit are far apart,... - Page 14 Download and install the MyVTech Baby Pro mobile app to stream remotely. With the mobile app, your Wi-Fi router (not included) serves as a communicating channel between your baby unit and mobile device, allowing you to monitor and control your baby unit wherever you are. For details, see Download App for Mobile Access section.
-
Page 15: Protect Your Privacy And Online Security
Protect Your Privacy and Online Security Protect Your Privacy and Online Security VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of industry-recommended best practices to help keep your wireless connection private and your devices protected when online. -
Page 16: Connect The Baby Monitor
Connect the Baby Monitor Connect the parent unit and baby unit to a power supply with the included power adapters. Notes: • The rechargeable battery in the parent unit is built-in. • Use only the power adapters supplied with this product. •... -
Page 17: Charge The Parent Unit Battery
Charge the Parent Unit Battery The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power. The parent unit turns on automatically after it connects to the power socket for the first time using, and its battery will charge at the same time. -
Page 18: Basic Operation
Basic Operation After powering up your baby monitor, the parent unit streams live video in direct mode. Recommend to follow the instructions on screen to set up home Wi-Fi network with your monitor for functionality enhancements and mobile access. See Download App for Mobile Access and Set up Wi-Fi Connection in this user guide. - Page 19 2� Press and hold Power to turn on the parent unit, the welcoming screen appears and the LINK LED flashes. Press and hold 3� Once your baby unit and parent unit are powered on, the parent unit and baby unit will pair each other automatically. When they are connected successfully, the LINK LED lights steadily.
-
Page 20: Use The Menu
Use the Menu Press MENU on the parent unit to enter the main menu, choose a menu item, or save a setting. You can use the parent unit menu for advanced settings or operations, such as to play or stop the baby unit lullaby, or adjust the baby unit sound sensitivity. -
Page 21: Zoom
Zoom • Press on the parent unit to zoom in or out in a fixed zoom sequence. indicates that the image is magnified 3 times. • Press and hold to move the zoomed image upward or downward. • Press and hold to move the zoomed image leftward or rightward. -
Page 22: Turn On/Off The Parent Unit Screen
Turn on/off the Parent Unit Screen You can turn on or turn off the parent unit screen without powering off the unit. You will still hear sounds from the baby unit. | LCD ON/OFF • Press on the parent unit to turn off the screen. •... -
Page 23: Test The Sound Level And Position The Baby Monitor
Test the Sound Level and Position the Baby Monitor Testing the Sound Level of the Baby Monitor You may test your baby monitor before initial use, and at regular times thereafter. Note: This baby monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such. - Page 24 Positioning the Baby Monitor Caution: Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. 1. Place the baby unit more than 3 feet (1m) away from your baby. 2.
- Page 25 Notes: • To avoid causing high-pitched screeching noise from your baby monitor: • Make sure your baby unit and parent unit are more than 3 feet (1 m) apart; OR • Turn down the volume of your parent unit. > 3ft ( 1m ) <...
-
Page 26: Advanced Operation
Advanced Operation Download App for Mobile Access System requirements for mobile access: MyVTech Baby Pro mobile app Network Wi-Fi Wi-Fi router 2.4GHz 802.11 b/g/n Internet connection 1.5 Mbps @ 720p or 2.5 Mbps @1080p upload bandwidth per baby unit Download the free MyVTech Baby Pro mobile app and install it to a mobile device, then use your mobile device and the mobile app to monitor your areas remotely. -
Page 27: Set Up Wi-Fi Connection
After installing the mobile app, follow the instructions in the mobile app and parent unit to set up and pair your baby unit. In your mobile device: 1� Tap to run the mobile app in your mobile device, and then create a user account. -
Page 28: Select Connection Mode
6� Press to select your desired mode, then press MENU/SELECT to confirm. Monitoring Modes (RM5756HD-2 only) When more than one baby unit is paired to the parent unit, you can choose to view different baby units in three monitoring modes. Learn more about each below:... -
Page 29: Night Light
Night Light You can control the night light remotely on the parent unit or directly on the baby unit. On the Baby Unit Tap the Night Light Control Key located on the top of the baby unit to turn on/off the night light. Tap and hold the same key to adjust the night light brightness. - Page 30 On the Parent Unit Turn on/off 1� Press MENU/SELECT. 2� Press to scroll to Night Light menu, then press MENU or to enter. 3� Choose On, then press MENU/SELECT to confirm. The night light will turn on, and appears on the screen. 4�...
-
Page 31: Melodies And Soothing Sounds
Melodies and Soothing Sounds There are 5 melodies and 5 soothing sounds in the baby monitor for you to comfort your baby with. Play the Melodies and Soothing Sounds 1� Press MENU/SELECT to enter the main menu. 2� Press to navigate, then press MENU/SELECT to enter Melodies &... -
Page 32: Sound, Motion, Temperature Alerts
Sound, Motion, Temperature Alerts Sound Detection You can turn on Sound Detection Alert and adjust the baby unit’s sound Sensitivity to only detect your desired level of sounds. When the baby unit detects sounds that exceed the chosen level, the parent unit screen turns on if it has been switched off or dimmed, and the baby unit transmits the detected sounds to the parent unit. - Page 33 Turn on/off Sound Detection Alert 1� Press MENU/SELECT to enter the main menu. 2� Press Alerts menu, press MENU/SELECT to repeatedly to choose enter Sound settings. press 3� Press repeatedly to go to Sound Detection Alert, to turn on/off. appears on the screen. Turn on/off Auto Wake-Up When Auto Wake-Up is turned on, the parent unit screen stays off to save power when the baby unit detects no sound.
- Page 34 Adjust Motion Sensitivity 1� Press MENU/SELECT to enter the main menu. 2� Press Alerts menu, press MENU/SELECT, then repeatedly to choose to go to Motion settings. press press 3� Press repeatedly to go to Sensitivity, to adjust. Motion Sensitivity Level 3 (Highest) Level 2 (Medium) Level 1 (Lowest) Level Description...
-
Page 35: Parent Unit Settings
Parent Unit Settings Adjust LCD Brightness 1� Press MENU/SELECT to enter the main menu. 2� Press repeatedly to choose Parent Unit Settings menu. 3� Press repeatedly to select Brightness. ress 4� P to adjust (Level 1 - Lowest to Level 5 - Highest). Adjust Low Battery Alert Tone and No Link Alert Tone 1�... -
Page 36: Baby Unit Settings
Baby Unit Settings Night Vision The baby unit has infrared LEDs that allow you to see your baby clearly at night or in a dark room. When the baby unit being viewed detects low light levels, the infrared LEDs switch on automatically. When the night vision mode is activated, the images from the baby unit appear in black and white on the screen, and also appears. -
Page 37: Software And Firmware Update
Software and Firmware Update To ensure that your baby monitor is always at its best performance, the parent unit will prompt you to update its software and the baby unit firmware when there are new versions available. You can check if your device is running on the latest software or to update your device software manually: 1�... -
Page 38: Test The Best Location For The Baby Unit
On Baby Unit 1� Press and hold PAIR key until you hear a beep sound. 2� Release the PAIR key, and then press the PAIR key again five times until you hear a beep sound again. 3� The baby unit will sound another beep when the reset completes. Then, the baby unit will reboot. -
Page 39: Additional Information
Additional Information Wall Mount (Optional) Notes: • Check for reception strength and camera angle of the baby unit before drilling the holes. • The types of screws and plugs you need depend on the composition of the wall. You may need to purchase the screws and plugs separately to mount your baby units. - Page 40 3� Align the wall mount bracket and screws with the holes in the wall as shown. Tighten the screw in the middle hole first, so that the wall mount bracket position is fixed. You can tighten the other screw in the top hole. Insert the screws into the holes and tighten the screws until only 1/4 inch of the screws are exposed.
- Page 41 Place the baby unit on the wall mount bracket, and then slide it forward until it locks into place. Align the holes on the wall mount bracket with the screws on the wall, and slide the wall mount bracket down until it locks into place. 5.
-
Page 42: Frequently Asked Questions
Frequently Asked Questions Below are the questions most frequently asked about the baby monitor. Can I turn the parent unit dis- | LCD ON/OFF on the parent unit to turn off Yes, press play screen off but keep hear- the screen. The parent unit display will also dim automatically ing sounds from the baby unit? after being inactive for some time. -
Page 43: Storage
Storage When you are not going to use the baby monitor for some time, store the parent unit, the baby unit and the adapters in a cool and dry place. Adult Supervision • This baby monitor should be for use by adults only. •... -
Page 44: Customer Service And Product Warranty
24 months from date of purchase. VTech does not warrant that the product will be free from defects if defects are caused by an accident, misuse, abuse, improper installation or operation, vermin infestations, lack of reasonable care, unauthorised modification, loss of parts, tampering or attempted repair by a person not authorised by VTech;...
