Introduction

Intended use

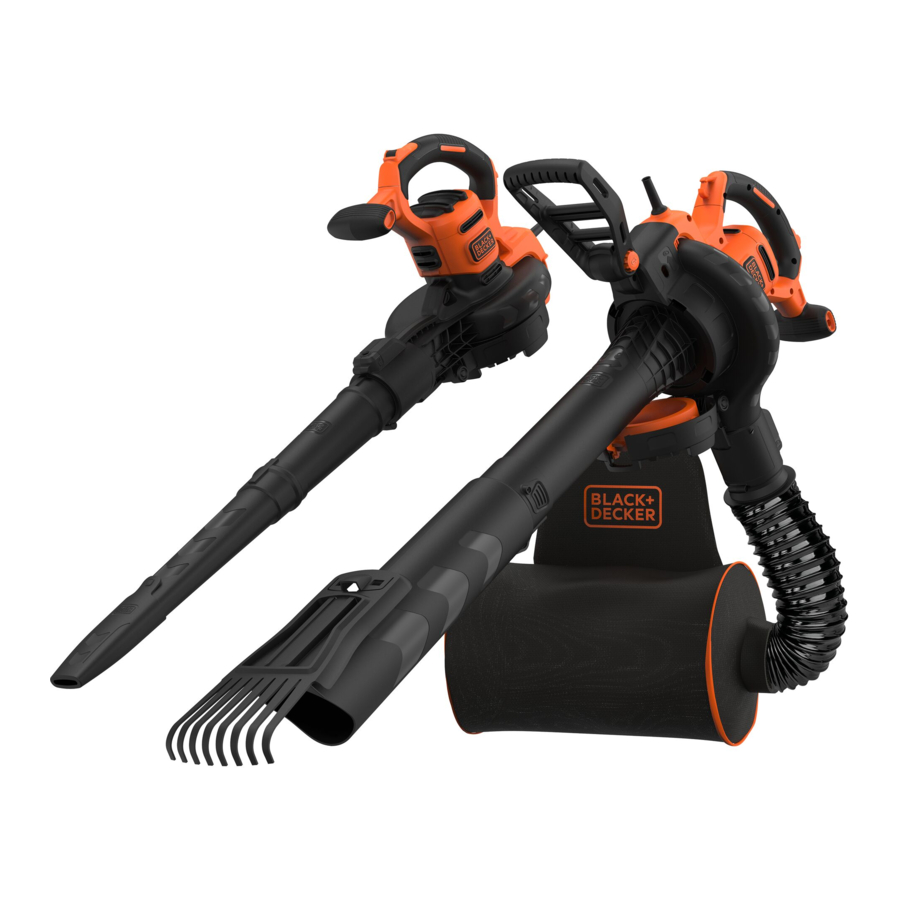

Your BLACK+DECKER TM BEBLV301 blower vac has been designed for leaf clearing. This appliance is intended for consumer and outdoor use only.

Using an extension cable

Always use an approved extension cable suitable for the power input of this tool (see technical data). The extension cable must be suitable for outdoor use and marked accordingly. Up to 30 m of 1.5 mm² HO5V V-F extension cable can be used without loss of product performance. Before use, inspect the extension cable for signs of damage, wear and ageing. Replace the extension cable if damaged or defective. When using a cable reel, always unwind the cable completely.

Residual risks

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc. Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any rotating/ moving parts.
• Injuries caused when changing any parts, blades or accessories.
• Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
• Impairment of hearing.
• Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.).

Vibration
The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN50636 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated. When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on Appliance

The following pictograms, along with the date code, are shown on the tool.

	Read the manual prior to operation.
	Wear safety glasses or goggles when operating this appliance.
	Wear suitable ear protection when operating this appliance.

	Do not expose the tool to rain or high humidity or leave outdoors while it is raining.
	Switch off: remove plug from mains before cleaning or maintenance.
	Disconnect the mains plug if the cord becomes damaged or entangled.
	Beware of flying objects.
	Keep bystanders away.
	Directive 2000/14/EC guaranteed sound power.

Features
This appliance includes some or all of the following features.

1. On/Off switch - speed control
2. Front handle
3. Adjustable back handle
   1. Adjustable back handle release button
   2. Additional strap
4. Power head
5. Upper vacuum tube
6. Lower vacuum tube
   1. Rake
7. Upper blower tube
8. Lower blower tube
9. Concentrator
10. Collection bag
11. Bag connector

Using your product

When using as a blower or vacuum, always wear safety glasses. If using in dusty conditions, wear a filter mask as well.

Switch off your product, allow the fan to stop and remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Assembly

Before assembly, make sure that the appliance is switched off and unplugged.

Always wear protective gloves when working with your blow vac.

Vacuum tube assembly (fig. A)
The vacuum tubes must be assembled together before use.

Do not operate the appliance with the vacuum tubes separated.

• To ease assembly, apply a soapy water solution to the joint area. Align the notches (5a) and the recesses (6a) on the upper
• Align the notches (5a) and the recesses (6a) on the upper (5) and lower (6) vacuum tubes. Push the lower vacuum tube (6) firmly onto the upper
• Push the lower vacuum tube (6) firmly onto the upper vacuum tube (5) until they click into place.

Do not separate the tubes once assembled.

Vacuum mode (fig. B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R)

• Rotate the fan guard assembly anti-clockwise (fig. B).
• Rotate the fan guard assembly anti-clockwise (fig. B).
• Insert the rod (14) (supplied) into the fan guard release (13) and push upward to release the fan guard assembly (12) as shown in figure C.
• Drop the fan guard assembly (12) forward as shown in figure D. Insert the assembled vacuum tube (5) into the available
• Insert the assembled vacuum tube (5) into the available recess in the power head (4) as shown in figure E. Rotate the assembled vacuum tube clockwise so that the
• Rotate the assembled vacuum tube clockwise so that the bayonet fixing locks into place as shown in figure E.
• Insert the collection bag connector (11) onto the power head receptacle (11a) as shown in figure F.
• Place the straps from the collection bag (10) over your shoulders (fig. G) this will support the additional weight as the back pack collection bag fills.

Fitting and removing the rake (fig. H)

• Position the rake (6a) above the mount (6c) on the bottom of the lower blow tube (6). Push down and slide the rake (6a) firmly onto the mount
• Push down and slide the rake (6a) firmly onto the mount (6c) until it clicks into place.
• To remove, lift the rake release (6b) and slide the rake (6a) off the mount (6c).

Adjusting the position of the back handle (fig. I)
The back handle (3) can be adjusted to provide optimum balance and comfort.

• Press in the release button (3a) on the left side of the back handle.
• Rotate the back handle (3) into the required position.
• Release the button (3a).

  Ensure that the teeth on the button are correctly aligned in slots in the handle and that the handle is secure. Position the vacuum tube slightly above the debris/leaves.
• Position the vacuum tube slightly above the debris/leaves.
  Switch on the appliance by pushing the On/Off switch (1) upwards (fig.j insert) and use a sweeping motion; the debris/leaves will be sucked up the tube, and thrown into the collection bag (10) (fig. J).

• As the bag fills, the power of the suction will decrease, switch off the appliance and unplug from the mains power supply. Unclip the the catch (10a) on the back pack collection bag
• Unclip the the catch (10a) on the back pack collection bag (fig K). Unfold the opening of the back pack collection pack (fig L).
• Unfold the opening of the back pack collection pack (fig L).
• Open the back pack collection pack (fig M) and proceed to empty its contents. To seal the collection bag, hold the flexible bars together
• To seal the collection bag, hold the flexible bars together and roll 2-3 times (fig N).
• Latch the retaining clip (10a) as shown in figure O.

  Never remove the collection bag without first turning off and unplugging the appliance.
  Note: If the suction decreases and the bag is not full, the vacuum tube is probably clogged with debris. Turn off and unplug the vacuum and clear the tube before continuing.

• When task is complete, rotate the assembled vacuum tube anticlockwise to release the bayonet fixing. Insert the rod (14) into the fan guard release (13) and push upwards to release the assembled vacuum tube. Remove the assembled vacuum tube from the powerhead as shown in figure P. Replace the fan guard assembly as shown in figure Q.
• Replace the fan guard assembly as shown in figure Q.
• Rotate the fan guard assembly clockwise as shown in figure R.

Blower mode (fig. S, T, U, V)

• Assemble the upper blow tube (7), the lower blow tube (8) and the optional concentrator (9) as shown in figure S.
• Push the assembled blow tube onto the vacuum outlet (11a) until the lock engages tightly with the blow tube as shown in figure T

  Never operate in Blow mode without the blow tube firmly in place.

• Hold the blow tube approximately 180 mm above the ground, switch on the appliance and using a sweeping motion from side to side, advance slowly keeping the accumulated debris/leaves in front of you (fig. U).
• Once you have blown the debris/leaves into a pile, you can remove the blow tube assembly by inserting the rod (14) into the aperture on the vacuum head and pushing down to release the lock as shown in figure V. Now you can convert to vacuum mode and collect the
• Now you can convert to vacuum mode and collect the debris.

Troubleshooting

Maintenance

Your BLACK+DECKER appliance has been designed to operate over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper appliance care and regular cleaning.

• Keep the appliance clean and dry.
• Remove any leaves stuck to the inside of the vacuum tube.
• Regularly clean the ventilation slots with a clean, dry paint brush. Regularly clean the collection bag and ensure that it is
• Regularly clean the collection bag and ensure that it is clean and empty after each use.
• To clean the appliance, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid. Do not use any abrasive or solvent-based cleaner. Self lubricating bearings are used in your product,
• Self lubricating bearings are used in your product, therefore lubrication is not required.

Mains plug replacement (U.K. & Ireland only)
If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the new plug.
• Connect the blue lead to the neutral terminal.

No connection is to be made to the earth terminal.
Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Technical data

Level of sound pressure according to EN 50636-2-100
Sound pressure level at the operator position: (L ) 90.0 dB(A), uncertainty pA (K) 1.2 dB(A)
Sound power level (L ) 102.5 dB(A), uncertainty (K) 1.1 dB(A) WA

Vibration total values (triax vector sum) according to EN 50636-2-100
Vibration (a ) 2.5 m/s 2 , uncertainty (K) 1.5 m/s 2 h
