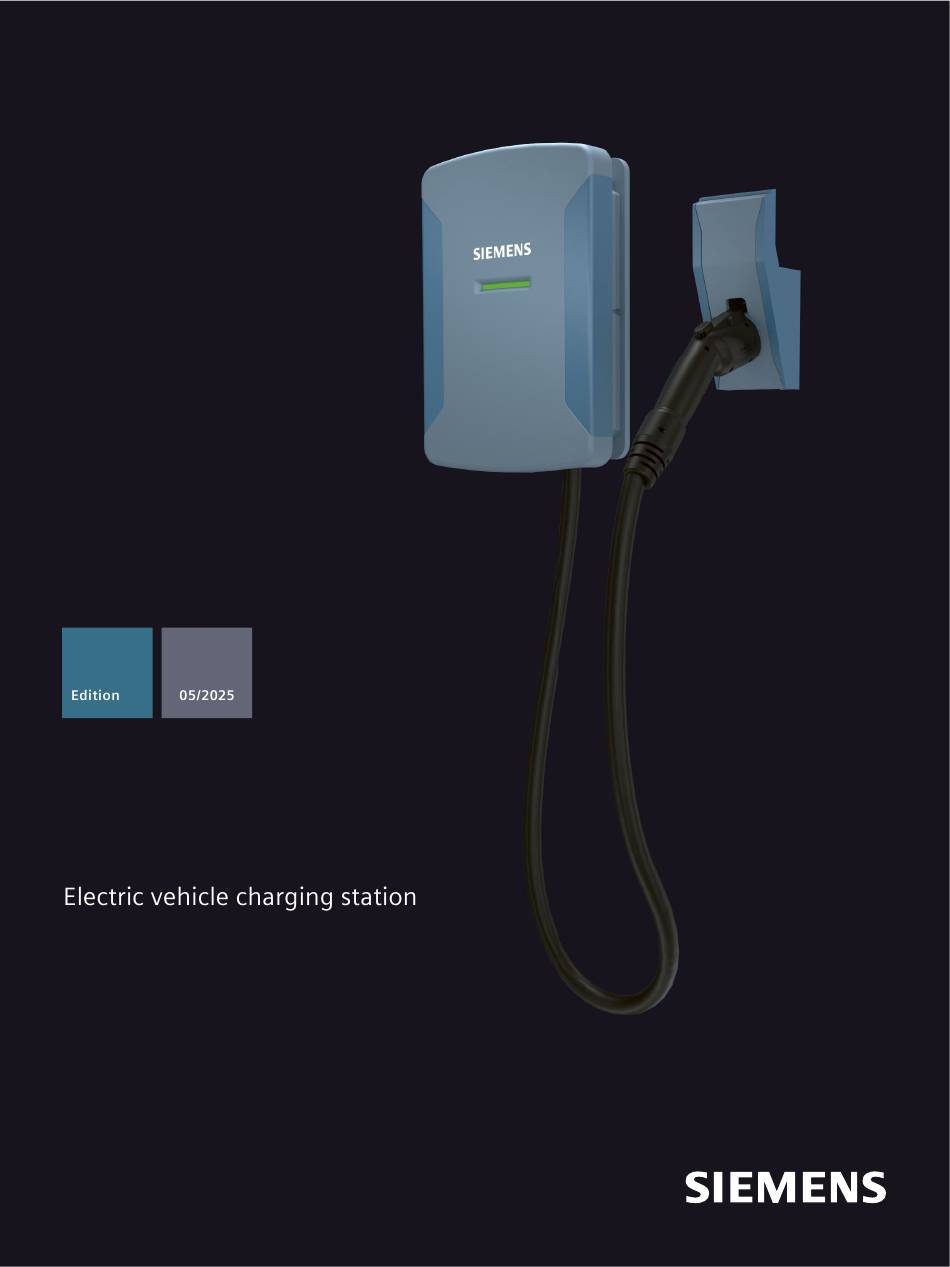

- Page 1 INSTALLATION AND OPERATIONS MANUAL VersiCharge Blue 80 AC Series 8EM1315-7BG1.-.FH. usa.siemens.com/versichargeblue80...
- Page 2 General Information Safety Information Mounting Instructions VersiCharge Blue™ 80 | Commissioning Installation and Operations Manual Operation Operating Instructions Faults Maintenance Warranty Help! Technical Data Appendix List of abbreviations 05/2025 Rev 02...
-
Page 3: Legal Information
Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. -
Page 4: Table Of Contents
Table of contents General Information........................... Safety Information..........................Read this First........................Safety Instructions (General and Specific)................Instructions Pertaining to a Risk of Fire or Electric Shock............ Code and Standard References..................10 Cybersecurity information....................12 Product Labels........................12 Supported grounding systems................... 13 2.7.1 Grounding requirements.................... - Page 5 Table of contents Operation............................38 Status LEDs location......................38 Status LEDs functions......................38 Charging the vehicle......................40 Stopping the charging process..................42 Uncommissioned Mode....................Faults..............................43 General Troubleshooting Guide..................43 Troubleshooting Guide for Technical Support..............44 Maintenance............................47 General Exterior Maintenance................... 47 General External Checks....................
-
Page 6: General Information
General Information Contact Information Siemens Industry, Inc. Smart Infrastructure eMobility Solutions 3617 Parkway Ln. Peachtree Corners, GA 30092 +1 (855) 950-6339, option 9 Website - (https://usa.siemens.com/versicharge/) FCC Compliance This equipment has been tested and found to comply with the limits for class A commercial digital devices, pursuant to part 15 of the FCC Rules. -
Page 7: Other Information
© 2024 Siemens Industry, Inc. All rights reserved. Open-source software Siemens accepts no liability for the use of the open-source software over and above the intended program sequence, or for any faults caused by modifications to the software. Copyright © Siemens AG, 2025, and licensors. All rights reserved. -
Page 8: Safety Information
Safety Information Read this First This manual contains instructions for use during the installation, operation and maintenance of the Siemens VersiCharge Blue™ 80 electric vehicle charging station. Safety Instructions (General and Specific) DANGER Hazardous Voltage. Will cause death or serious injury. -
Page 9: Instructions Pertaining To A Risk Of Fire Or Electric Shock
Safety Information 2.3 Instructions Pertaining to a Risk of Fire or Electric Shock Instructions Pertaining to a Risk of Fire or Electric Shock WARNING When using electric products, basic precautions should always be followed. This manual contains important instructions for units supplied with and without a NEMA 6-50 plug that shall be followed during the installation, operation and maintenance of the unit. -
Page 10: Code And Standard References
• This VersiCharge has been designated to meet the requirements in section 625 of the National Electric Code (NEC®). • UL Listing with Listing Number – Siemens VersiCharge devices are listed in UL file #E348556. • Complies with the following UL Standards: UL 1998, UL 991, UL2594/CSA C22.2 No.280/NMX-J-677-ANCE, UL 2231-1/CSA C22.2 No.281.1/NMX-J-668-1, UL 2231-2/CSA... - Page 11 Minimum PPE requirement for testing, inspecting and performing diagnostics and repair • Charging Circuit Interrupting Device (CCID): The Siemens VersiCharge line of EV Charging Systems includes a CCID. The CCID is required by UL Standard 2231 and is designed to detect ground faults within the system and disconnect power from the downstream conductors when a fault is detected.
-
Page 12: Cybersecurity Information
(https://www.siemens.com/industrialsecurity). Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends applying product updates as soon as they are available and using the latest product versions. Use of product versions that are no longer supported, and failure to apply latest updates may increase customer’s exposure to cyber threats. -
Page 13: Supported Grounding Systems
Specific system parameters must be met for proper connections with Siemens EVSEs. In wye systems, as depicted in the below images, connect the Siemens EVSE to any two lines. In delta systems, Siemens EVSEs should only be connected to L1 and L2 in a bonded, center- tapped secondary. -
Page 14: Unsuitable Grounding Systems
2.7.2 Unsuitable grounding systems Siemens EVSEs must not be connected to (1) a 120/208 VAC 3-phase ungrounded system, (2) a corner-grounded 120/240 VAC 3-phase delta system, or (3) any setup/configuration in which the center point of the AC power source is not grounded. -
Page 15: Mounting Instructions
Screw, #10-32 x 3/8", pan head, Phillips Lag screw, flanged hex head, 3/8 x 2-1/2” (holster) Label - installed output rating sheet Screw, M4 x 0.7 x 12mm, socket head Quick Start Guide - Siemens 80A 3.1.2 Standard Installation Equipment Preparation Tools and Equipment •... -
Page 16: Remove The Versicharge From Packaging
Mounting Instructions 3.2 Remove the VersiCharge from packaging Electrical Components and Connectors • 1-3/4” Conduit Connector • 1-1” Conduit Connector • 100A Circuit Breaker (smaller breakers may be used if allowed by NEC) • CAT I – 600V Multimeter (minimum rating) Wiring Materials •... -
Page 17: Mounting Using A Stud
Mounting Instructions 3.3 Mounting using a stud 1. Remove all components from the packaging. 2. Set aside the cable holster ④ ② and decorative cover 3. Make sure that the cover and the decorative cover are not scratched. If you are mounting the VersiCharge to a stud, follow the steps in the section Mounting Using a Stud (Page 17). -
Page 18: Alternate Mounting - Wallboard Mounting
4. Mount the bracket to the wall using two 1/4” diameter concrete anchors, based on their respective instructions. 5. If you are utilizing a dual post mount, refer to the online post installation guide, available at the following link (https://info.siemens.com/viewer/66450b5b4be539aa1f080d68). VersiCharge Blue™ 80 | Installation and Operations Manual Operating Instructions, 05/2025, Rev 02... -
Page 19: Remove The Main Cover And The Internal Barrier
Mounting Instructions 3.5 Remove the main cover and the internal barrier Remove the main cover and the internal barrier 1. Using the T-20 torque drive, remove the two screws to detach the main cover from the EVSE. NOTE Retain the screws, setting them aside in a safe location. 2. -
Page 20: Attach The Versicharge To The Mounting Bracket
Mounting Instructions 3.6 Attach the VersiCharge to the mounting bracket Attach the VersiCharge to the mounting bracket 1. Place the coupler aside to prevent it from being damaged. 2. Align the T-feature between the VersiCharge and wall mount and then slide the EVSE onto the wall mount. -
Page 21: Wiring The Versicharge
Mounting Instructions 3.7 Wiring the VersiCharge Wiring the VersiCharge 3.7.1 Wiring Information DANGER Hazardous Voltage. Will cause death, serious injury or property damage. To reduce risk of fire, connect only to a dedicated branch circuit rated 100A or greater in accordance with local codes. -
Page 22: Wiring Using The Bottom Left Entry
Mounting Instructions 3.7 Wiring the VersiCharge 3.7.2 Wiring using the bottom left entry Install 1” NPT flexible conduit and fitting Install 1” flexible conduit and NPT connector per the manufacturer’s installation instructions NOTE Straight liquid tight Arlington 1” NPT conduit (part number NMLT10-1) is recommended. Additionally, any standard 90 degree 1”... -
Page 23: Wire Connection
NOTE The charger will need to be mounted on the bracket to hardwire the device. NOTE Prior to wiring, the optimal power wire length inside the EVSE shall be cut to Siemens recommended length: • L1 Wire (Black): 9.5” • L2 Wire (Gray): 7.0”... -
Page 24: Wiring Using The Rear Entry
Mounting Instructions 3.7 Wiring the VersiCharge 1. Route the wires into the enclosure. 2. Route three (3) conductors (90°C 600V copper wire) connect them according to the wiring diagram. 3. Using a 5/32” hex head bit, tighten connections according to the Wiring Torque Table (Page 20-21). - Page 25 NOTE The charger will need to be mounted on the bracket to hardwire the device. NOTE Prior to wiring, the optimal power wire length inside the EVSE shall be cut to Siemens recommended length: • L1 Wire (Black): 9.5” • L2 Wire (Gray): 7.0”...
- Page 26 Mounting Instructions 3.7 Wiring the VersiCharge 1. Route the wires into the enclosure. NOTE For indoor installations where a watertight seal is not needed, conduit is not required. Wires can be routed directly through the rear hole. 2. Route three (3) conductors (90°C 600V copper wire) connect them according to the wiring diagram.
-
Page 27: Set The Maximum Current Switch
Mounting Instructions 3.7 Wiring the VersiCharge 3.7.4 Set the maximum current switch Establish branch circuit current rating. The VersiCharge can be installed on a branch circuit rated less than 100A if the maximum output current is reduced as specified in the following Table. DANGER Hazardous Voltage. - Page 28 Mounting Instructions 3.7 Wiring the VersiCharge Set amperage switch DANGER Hazardous Voltage. Will cause death or serious injury. Turn off power before working on this equipment. The voltage present could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced. The VersiCharge comes set to the maximum of the model.
- Page 29 Mounting Instructions 3.7 Wiring the VersiCharge Apply output rating The accessory kit supplied with the EVSE includes a set of rating labels. These labels align to the possible input voltages and output rating of the unit. The output label that matches the install of the kit shall be applied to the product label.
-
Page 30: Close The Versicharge
Mounting Instructions 3.8 Close the VersiCharge Close the VersiCharge DANGER Hazardous Voltage. Will cause death or serious injury. Turn off power before working on this equipment. The voltage present could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced. (Optional) Route the Ethernet cable 1. - Page 31 Mounting Instructions 3.8 Close the VersiCharge Replace the internal barrier If you are not using Ethernet cable, place the internal barrier on top of the base and install, push it in, and torque the screws. Replace the main cover NOTE Ensure that the gasket is fully seated in the cover groove (it should not protrude above/beyond the groove), with no visible twists or breaks.
- Page 32 Mounting Instructions 3.8 Close the VersiCharge 1. Replace the main cover on the unit and attach using the eight (8) M4 x 0.7 x 16 mm screws (the two retained when removed earlier and 6 from the hardware kit). 2. Torque to 16 in-lbs. (1.8 Nm) using the Torx head (T20) bit. 3.
-
Page 33: Mount The Cable Holster
Mounting Instructions 3.9 Mount the cable holster Mount the cable holster 1. Mount the cable holster in an acceptable location within close proximity of the VersiCharge. – If you are installing a charger in a public environment, the cable holster must be mounted at least 18 inches above the ground if being installed indoors or at least 24 inches above the ground if being installed outdoors. -
Page 34: Commissioning
Commissioning Required Open Ports Note that the following open ports are required for communication with Siemens Device Management and the logging server. Domain name Ports Application layer Usage protocol versichargesg.com 443, 9019 HTTPS, WSS Registration, upgrade requests, WebSocket communication versichargesg.blob.core.windows.net... -
Page 35: Commissioning With Pc Or Mobile Device
4.2 Commissioning with PC or mobile device Commissioning with PC or mobile device For the integrated functions of the charger, you need an Internet connection to connect to Siemens Device Management. The connection is set up during the commissioning described here. NOTE If a charger is moved to another network or if ownership is changed, the charger must be deregistered before recommissioning. - Page 36 – Mobile Internet (SIM card only in the Cellular device) – Wi-Fi 5. Connect the charger to Siemens Device Management. This takes place automatically. 6. Assign a descriptive name for the charger. 7. Check the settings. You can find detailed commissioning instructions on the Internet (https://support.industry.siemens.com/cs/ww/de/view/109814740/en).
- Page 37 If you want to change network settings such as SSID and password after the charger has been successfully connected to Siemens Device Management, proceed as follows: 1. Delete the link of the charger with Siemens Device Management via the Sifinity Go App or via VersiCloud (https://www.versichargesg.com/Account).
-
Page 38: Operation
Operation Status LEDs location ① Status LEDs (multifunction display for charging status/error states) Figure 5-1 Status LEDs location Status LEDs functions Status LEDs Description Charger status Green color The charger is ready for operation. Status LEDS light up Blue color Charging in progress. Status LEDs ascending left to right Blue color... - Page 39 Operation 5.2 Status LEDs functions Status LEDs Description Charger status Yellow color Note: The electric vehicle is not ready to charge. Status LEDs pulsing User interaction is required (authentication or plugging of charging cable). Yellow color The authentication process is running and the charger is waiting for Status LEDs ping pong charging to start.
-
Page 40: Charging The Vehicle
Operation 5.3 Charging the vehicle Charging the vehicle DANGER Risk of electric shock and fire. Touching live parts may cause electric shock or even death. Defective connectors or cables may cause fire. Safety instructions during the charging process • Do not kink or squeeze the charging cable. Do not draw the charging cable over sharp edges or hot surfaces. - Page 41 Operation 5.3 Charging the vehicle Charging process Proceed as follows to start charging: Figure 5-2 Charging the vehicle 1. Check if the required charging point is ready for operation: – The Status LEDs light up green. 2. Make sure that the charging cable is not damp or dirty. Then connect the charger to your vehicle.
-
Page 42: Stopping The Charging Process
To perform commissioning, follow the instructions in the section Commissioning (Page 34). Note that the following functions are not available in this mode: • Connection with Siemens backend system • Connection with OCPP backend • Connection and control via network, smartphones and digital terminals •... -
Page 43: Faults
4. If the red LEDs remain lit, try the above troubleshooting steps two more times. 5. If the problem is not resolved, open a service ticket on the Internet (https://emobility.usa.siemens.com/s/eMobilityCloud) or via the support hotline (855-950-6339, option 9). If the Status LEDs light up green and yellow, the charger is offline, but charging may still be possible. -
Page 44: Troubleshooting Guide For Technical Support
Follow the instructions below to open a service ticket: 1. Read status LEDs off the charger. 2. This specific combination of red LED lights will be provided in the service ticket (https://emobility.usa.siemens.com/s/eMobilityCloud) or via the support hotline (855-950-6339, option 9). ①... - Page 45 Faults 6.2 Troubleshooting Guide for Technical Support CAUTION The troubleshooting actions listed below should only be performed by a qualified electrician. Detailed safety measures are available in the chapter Safety Information (Page 8). Status LEDs Description Charger status Recovery Suggestions All LEDs light up red Closed/Welded Contact Check supply and charging cable.
- Page 46 Faults 6.2 Troubleshooting Guide for Technical Support Status LEDs Description Charger status Recovery Suggestions Left LED lights up Internal Temperature Fault This fault can be rectified by allowing The terminal has overheated due the temperature to drop. to the continuous high current Discontinue charging for 30 minutes and Center LEDs off drawn by the load...
-
Page 47: Maintenance
Any additional service must be conducted by qualified personnel. If any damage is observed on the unit, contact your supplier or Siemens immediately. General exterior maintenance is recommended to be performed every six months, depending on the environment. -
Page 48: Cleaning Steps For Polluted Coupler
Maintenance 7.3 Cleaning Steps for Polluted Coupler Cleaning Steps for Polluted Coupler 1. De-energize the unit and ensure the coupler is not connected to a vehicle. 2. Use a dry cloth to clean the cable, connector, and plug pins. 3. For the inside of the pins, use a dry cotton swab to remove debris. Do not use abrasive agents, compressed air, water jets, or steam cleaners. -
Page 49: Warranty
LEGAL NOTICE: Use of this product indicates acceptance of these terms and non-compliance may void the warranty. Please access the product warranties at the following links: Product Warranties • VersiCharge™ - Applies to all VersiCharge™ (https://assets.new.siemens.com/siemens/assets/api/uuid: aa957eb2-0e18-4983-a559-6c9a30851e1d/SIE-B40053-00-4AUS-VersiCharge-AC-Limited- Warranty.pdf) Accessories Warranties • VersiCharge™ Accessories - Applies to all VersiCharge™ accessories (https://assets.new.siemens. -
Page 50: Help
Help! Call us any time, any day, at +1 (855) 950-6339, option 9, or contact us via support ticket at (https://emobility.usa.siemens.com/s/eMobilityCloud). VersiCharge Blue™ 80 | Installation and Operations Manual Operating Instructions, 05/2025, Rev 02... -
Page 51: Technical Data
-40 °C to +50 °C, >50 °C with derating, -40° C to +85° C (storage), 98% relative humid ity, non-condensing Colors Siemens blue (Pantone 7700); FE gray Certificates and standards cUL listed According to UL2594, UL 991, UL 1998, UL 2231, file no. E348556 ... - Page 52 Description Catalog number UL Commercial (Wi-Fi and SIM) 80A 8EM1315-7BG16-1FH2 Data plans, accessories and bundles for chargers: Siemens offers chargers with data plans, posts and bundled solutions such as AC StartUp for customer convenience. See the table below: Description Catalog number AC StartUp for 4 chargers ...
-
Page 53: Appendix
Appendix Wiring Schematics Branch circuit shall be rated ≥125% of the current setting of the EVSE. Consult Sections 625.41 and 625.42 of the NEC for detailed information. GFCI may be required. Consult Section 625.54 of the NEC for detailed information. This additional disconnecting means may not be required if the branch circuit breaker can serve this purpose. -
Page 54: Hardwire Bending Diagrams
Appendix A.2 Hardwire Bending Diagrams Hardwire Bending Diagrams A full-size wire bending diagram is supplied in the box. VersiCharge Blue™ 80 | Installation and Operations Manual Operating Instructions, 05/2025, Rev 02... -
Page 55: List Of Abbreviations
List of abbreviations Alternating current Access Point Name Direct current Electrostatic Discharge Electric Vehicle Frequently Asked Questions International Electronical Commission Impact Protection International Organization for Standardization Ingress Protection Miniature circuit breaker Measurement Instruments Directive OCPP Open Charge Point Protocol Personal Computer RCCB Residual current operated circuit breaker RFID... - Page 56 Siemens Industry, Inc. including field conditions and project parameters. Siemens does not make representations, warranties, or assurances as to the accuracy or completeness of the content contained herein. Siemens reserves the United States of America right to modify the technology and product specifications in its sole...
