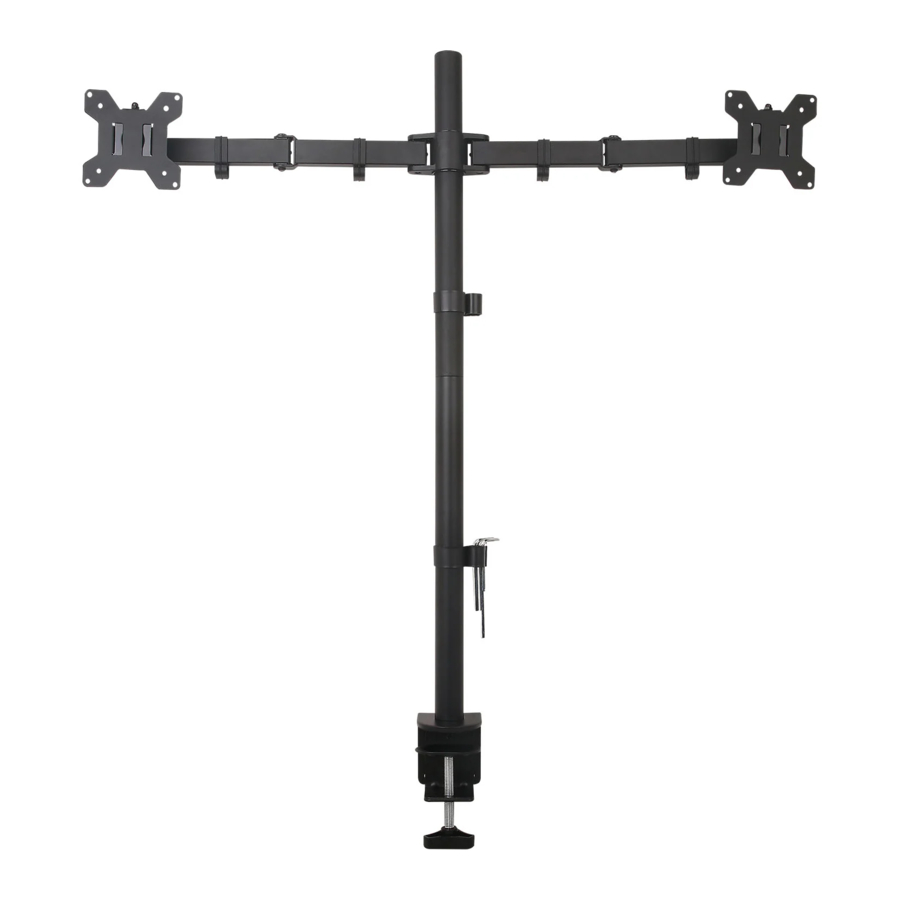

Wali M002XL Installation Manual

Table of Contents

Contents

1 Supplied Parts List
2 Option A: 31.5'' Pole Installation
3 Option B:16.3'' Pole Installation
4 Option A: Clamp Installation
5 Option B: Grommet Base Installation
6 Documents / Resources
- 6.1 Download manual

Supplied Parts List

Option A: 31.5'' Pole Installation

Loosen the screw on the Lower Pole with Allen key 2mm . Connect o Lower Pole a1 to Upper Pole a2 and tighten the screw with Allen key 2mm to fix the two poles. o
Option A: 31.5'' Pole Installation

Option B:16.3'' Pole Installation

Press Pole Cover into the top of Lower Pole t t .
Option B :16.3'' Pole Installation

Option A: Clamp Installation

Connect Lower Pole a and C-Clamp Brace from the bottom using M5x14 c Bolt and tighten with Allen Key 3mm.
f o

Select the preferred height according to your desk thickness. Connect C-Clamp to C-Clamp
b Brace using M8x12 Bolt and tighten with Allen Key 5mm . Rotate the hand knob clockwise to fasten for stability.

Option B: Grommet Base Installation

Place Lower Pole onto Grommet Base Plate . Connect them from the bottom using M5x14 Bolt and tighten with Allen Key 3mm .
1. Existing Grommet Hole Installation
  If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk mount. Position the Lower Pole on the mounting surface and secure using the Support Plate , M10 Washer , Spring Washer , and M10 Bolt . Fasten the Bolt using i the provided Wrench . p
2. Self-drilled Grommet Hole Installation
  Mark the position of the hole on your mounting surface. Drill a 3/8"(10mm) diameter hole at the marked position through the mounting surface. Position the Lower Pole on the mounting surface and secure using the Support Plate , M10 Washer , Spring Washer , and M10 Bolt . Fasten the Bolt using the provided Wrench . p

Put the Wire Clips and Swivel Arm through the Upper Pole , adjust the preferred height and tighten using Allen Key 6mm . Attach the Wire Clips to the Swivel Arm . o n2 d
Select bolts and spacers (if needed) according to your TV/Monitor. Attach the VESA Plate to the Monitor and tighten with a screwdriver. (Screwdriver not included)
1. Select Monitor Screws
2. Select Spacers ( if needed )
3. Flat Back Monitor
4. Curved or Recessed Back Monitor
Put the assembled TV/Monitor onto the Swivel Arm and tighten the VESA Plate with d Nut for stability. h
If one monitor is lower, remove the Nut and turn the bolt counter-clockwise using Allen key 3mm to raise the monitor. Tighten the VESA Plate with Nut for stability after the adjustment.
Guide the cable through the Wire Clips (, ) and store the Allen Keys in the Wire Clip . Adjust the tilt angle using Allen Key 6mm . Manually swivel, tilt, and rotate the monitor for the best viewing angle.
