INSTALLATION MANUAL

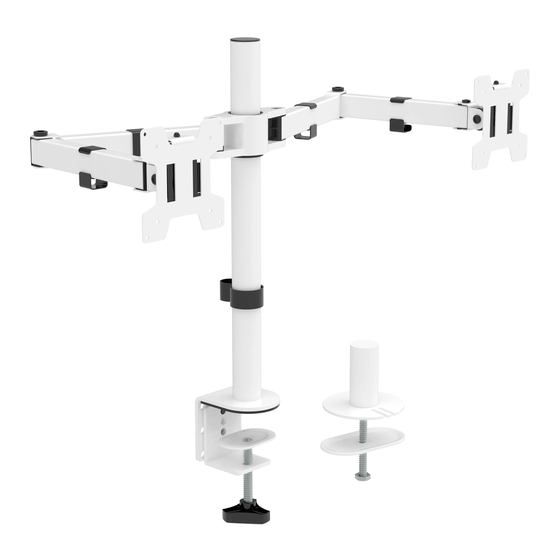

Dual Monitor Desk Mount
M002-W
Supplied Parts List
Pole
C-Clamp
C-Clamp Brace
a (x1)
b (x1)
c (x1)
M10 Washer
Spring Washer
Grommet Base Plate
k (x1)
l (x1)
m (x1)
2
Option A : Clamp Installation
Option A : Clamp Installation
1. Connect Pole a and C-Clamp Brace c from the bottom using M5x14 Bolt f and
a
c
tighten with Allen Key 3mm o .
o
a
f
o
www.walielectric.com
support@walielectric.com
1-844-SATTLER (18447288537)
75x75\100x100
Swivel Arm
VESA Plate
M5x14 Bolt
d (x1)
e (x2)
f (x3)
Wire Clip
Wire Clip
Allen Key
n1 (x1)
n2 (x4)
o (x1)
2. Select the preferred height according to your desk thickness. Connect C-Clamp b to C-Clamp
f
Brace c using M8x12 Bolt g and tighten with Allen Key 5mm o . Rotate the hand knob
c
clockwise to fasten for stability.
c
WARNING
！
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly or inappropriate use.
TIPOVER WARNING
！
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
RATED
(10kg/22lbs)x2
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.
SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
M8x12 Bolt
Nut
g (x2)
h (x2)
Wrench
M4x12 Bolt
p (x1)
q (x8)
g
o
c
b
Hand Knob
1
Measure the thickness of your mounting surface or desk.
M10 Bolt
Support Plate
i (x1)
j (x1)
M4x30 Bolt
M4 Spacer
r (x8)
s (x8)
Option B : Grommet Base Installation
I. Place Pole a onto Grommet Base Plate m . Connect them from the bottom using M5x14 Bolt
a
b
and tighten with Allen Key 3mm
g
o
f
o
RT OF MONITOR OR STAND.
Fit clamp: 0.4"- 4"
Grommet: 0.4"- 3"
m
o
.
a
m
f
