Evaluation Board for
FEATURES
Self-contained board for generating RF frequencies
Flexibility for reference input, PFD frequency, and loop
bandwidth
Accompanying software allows complete control of
synthesizer functions from a PC
USB/battery-operated 9 V supplies
Typical phase noise performance of −141 dBc/Hz at 3 MHz offset
Typical spurious performance of −65 dBc at 200 kHz offset
(1.3 GHz output)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Downloaded from
Elcodis.com
electronic components distributor
ADF4360-5
Integrated PLL and VCO Frequency Synthesizer

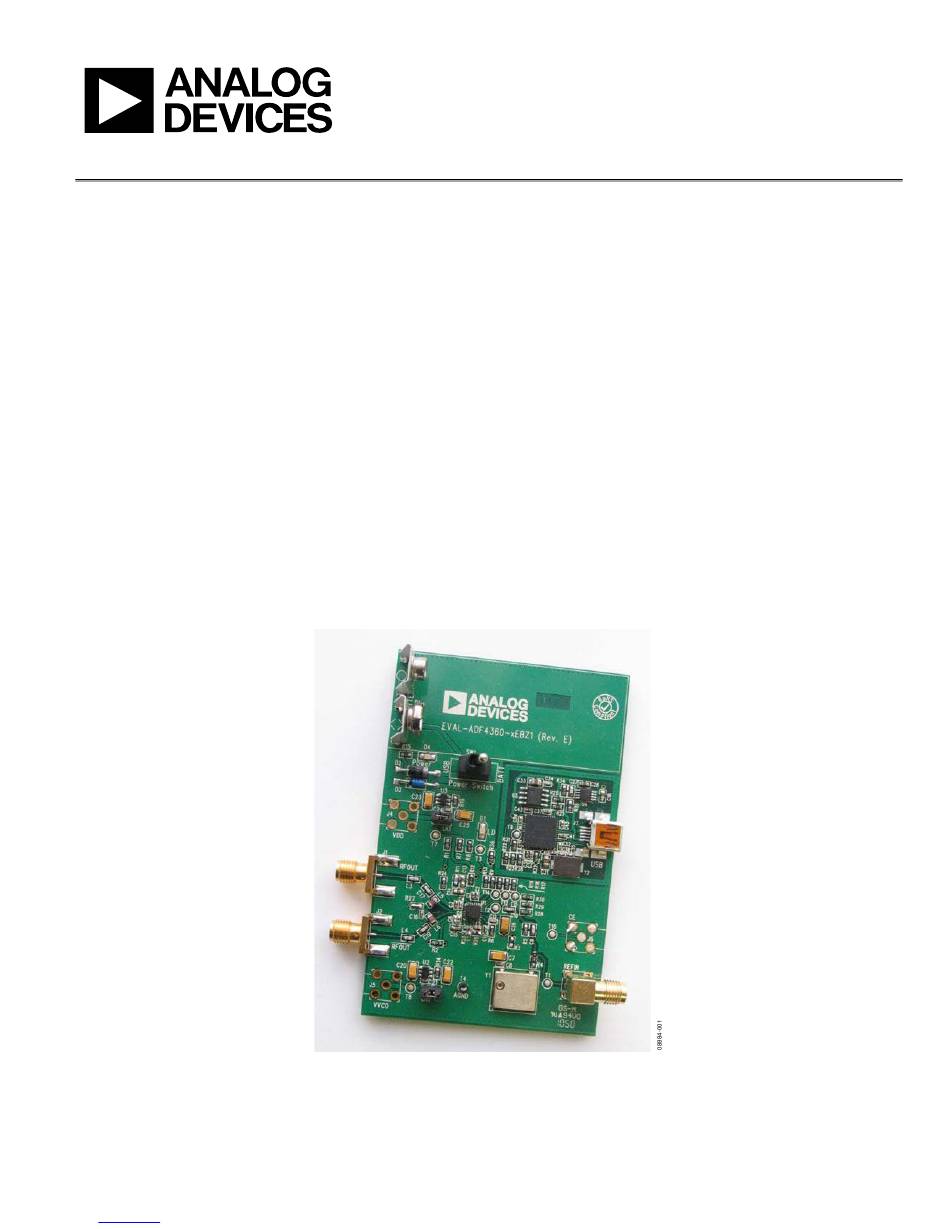

EVALUATION BOARD PHOTOGRAPH
Figure 1.
Rev. A | Page 1 of 12
Evaluation Board User Guide
GENERAL DESCRIPTION
The ADF4360-5EBZ1 evaluation board is designed to allow the
user to evaluate the performance of the
synthesizer consisting of an integrated PLL and VCO (see Figure 1).
It contains the ADF4360-5BCPZ, a USB connector, and SMA
connectors for the RF outputs. Unpopulated SMA footprints are
available for the power supplies, the chip enable (CE), and the
external reference input. The evaluation board also contains the
loop filter to complete the PLL. It can be modified as necessary for
the PLL requirements of the user. A USB cable is included with
the board to allow software programmability from a PC.
The package also contains a CD with Windows® software to allow
quick, user-friendly programming of the synthesizer. The CD
contains additional PLL data sheets, technical notes, articles, and
ADIsimPLL™ V3.4 (Analog Devices, Inc., PLL simulation
software). More information is available at www.analog.com/pll.
UG-100
ADF4360-5
frequency
Advertisement
Table of Contents
Related Manuals for Analog Devices UG-100
Summary of Contents for Analog Devices UG-100
-
Page 1: Features
The package also contains a CD with Windows® software to allow quick, user-friendly programming of the synthesizer. The CD contains additional PLL data sheets, technical notes, articles, and ADIsimPLL™ V3.4 (Analog Devices, Inc., PLL simulation software). More information is available at www.analog.com/pll. EVALUATION BOARD PHOTOGRAPH Figure 1. -
Page 2: Table Of Contents
UG-100 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Windows XP OS ................4 General Description ................. 1 Windows Vista OS and Windows 7 (32-Bit) OS ......5 Evaluation Board Photograph ............1 Windows 7 64-Bit OS ..............5 Revision History ................2 Using the Evaluation Board Software ..........6... -
Page 3: Evaluation Board Hardware
Evaluation Board User Guide UG-100 EVALUATION BOARD HARDWARE The evaluation board comes with a cable to connect it to the Users may provide their own power supplies using the J4 and J5 USB port of a PC. The silkscreen and cable diagram for the connectors, as shown in Figure 2. -
Page 4: Evaluation Board Software Quick Start Procedures
The install wizard guides you through the installation process. The software is installed in a default directory called C:/Program Files/Analog Devices/ADF4360. The software requires Microsoft’s .NET Framework Version 3.5 or later to be installed on your machine. The installer automati- cally downloads the framework from the Microsoft website if you do not have this installed. -
Page 5: Windows Vista Os And Windows 7 (32-Bit) Os
Connect your USB evaluation board. The driver should be found automatically. Note that installing this driver package disables older versions of Analog Devices PLL software; therefore, only install if needed. Figure 6. Unknown Device Properties Rev. A | Page 5 of 12 Downloaded from Elcodis.com... -
Page 6: Changes To Using The Evaluation Board Software Section
The main interface window appears (see Figure 8). Confirm that Analog Devices RFG.L Eval Board connected is displayed In the Sweep and hop tab, the user can make the device sweep at the top of the window. Otherwise, the software has no connec- a range of frequencies, or hop between two set frequencies. - Page 7 Evaluation Board User Guide UG-100 Figure 8. Software Front Panel Display Rev. A | Page 7 of 12 Downloaded from Elcodis.com electronic components distributor...
-
Page 8: Changes To Evaluation Board Schematics Section
UG-100 Evaluation Board User Guide EVALUATION BOARD SCHEMATICS Figure 9. EVAL-ADF4360-5EBZ1 Schematic Rev. A | Page 8 of 12 Downloaded from Elcodis.com electronic components distributor... - Page 9 Evaluation Board User Guide UG-100 Figure 10. EVAL-ADF4360-5EBZ1 Schematic (Continued) Rev. A | Page 9 of 12 Downloaded from Elcodis.com electronic components distributor...
- Page 10 UG-100 Evaluation Board User Guide Figure 11. EVAL-ADF4360-5EBZ1 Schematic (Continued) Rev. A | Page 10 of 12 Downloaded from Elcodis.com electronic components distributor...
-
Page 11: Changes To Bill Of Materials Section
Evaluation Board User Guide UG-100 ORDERING INFORMATION BILL OF MATERIALS Table 1. Reference Designator Part Description Manufacturer/Part No. C1, C3, C5, C29, C30, C32, Capacitor, 0402, 0.1 µF, 16 V Kemet C0402C104K4RAC C37, C38, C39, C40, C41, C42, C43 C2, C4, C6, C8... - Page 12 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
