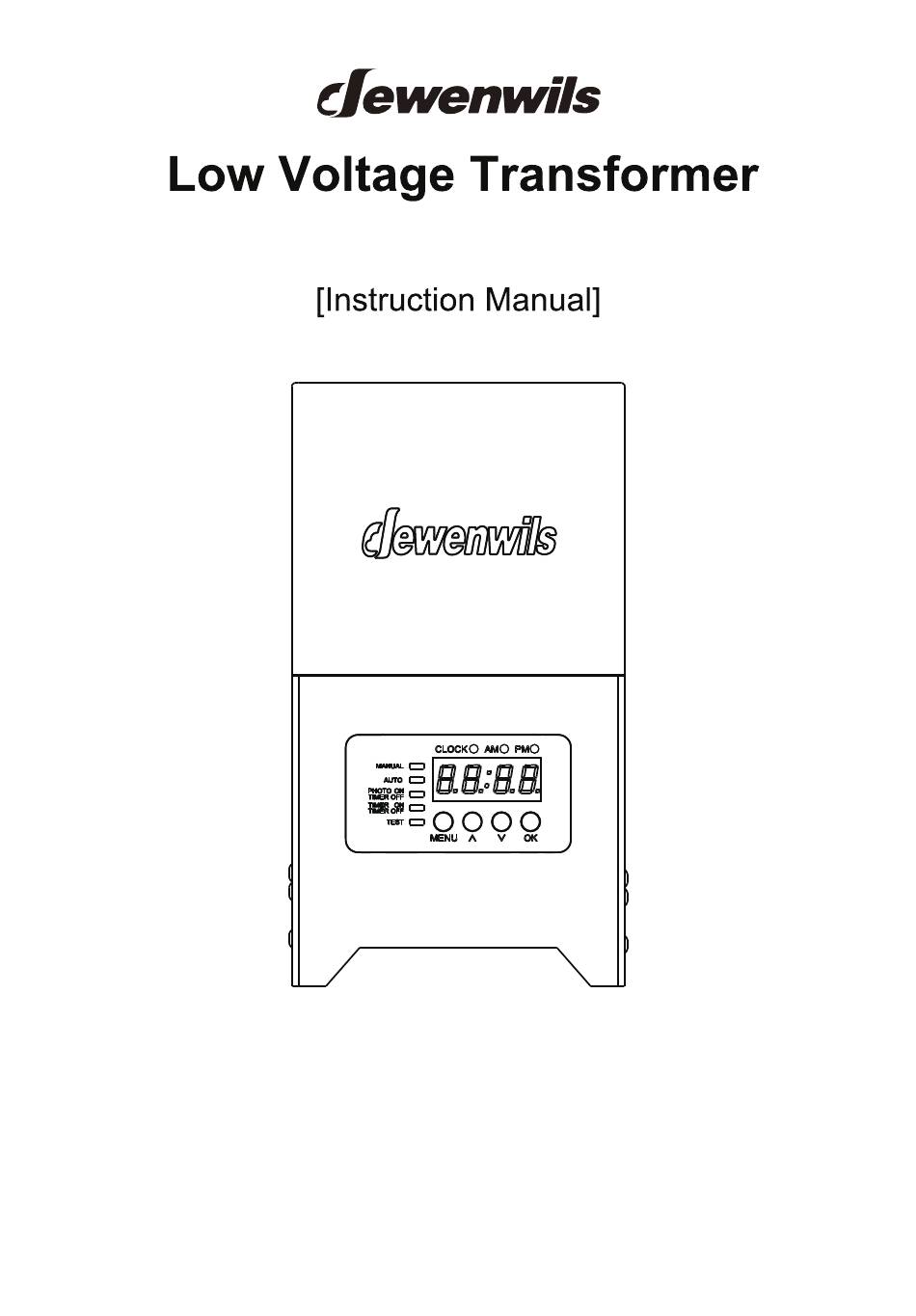

- Page 1 SKU: HCLT03H Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V41022...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS: Important safety information to reduce risk of fire injury. 1. Do not install within 10 feet (3 m) of a pool, spa or fountain. 2. There are no serviceable parts inside the power supply unit. DO NOT DISASSEMBLE IT. 3. - Page 3 2.Connect the cable to the Transformer Lay the transformer on a flat, stable surface and use screwdriver to connect the stripped ends of the cable under the terminal clamping plate. Note: Gently pull on the landscape cable to verify if the connection is strong. This transformer has multiple output terminals: 2 x Common (COM), 12V &...
- Page 4 4.Attaching Your Fixtures Turn the transformer on. Use the cable connectors to attach your fixtures with the cable. Then it will light up. 5.Mounting the Transformer Use the screw to mount the transformer directly on a wall. 12 inch to 48 inch (0.3 m to 1.2 m) high from the ground would be suggested.12in.
- Page 5 6.Connecting & Mounting Photo Sensor Push the bi-pin connector into the mating socket, then screw the connector cover. Mount the photo sensor bracket on a wall or other solid surface with the screw provided. Snap the sensor into the bracket. Route or coil the excess wire to protect it from lawn mowers, trimmers, etc.
- Page 6 To change the operation modes of the transformer, press the MENU button to light the indicator of the selected mode.
- Page 7 TEST - Use this mode to test the photo sensor and transformer operation. Covering the photo eye turns on the transformer. Uncovering the photo sensor during the daytime or shining a bright light onto the photo sensor will turn off the transformer. Note that there is no 30 seconds delay in this mode.
- Page 8 TIPS: 1. The transformer has a power-off memory function. When the transformer powers on again, the transformer will enter the working mode before the power failure. 2. Circuit breaker may need to be reset if the transformer is not working.
-
Page 9: Specifications
SPECIFICATIONS - Model: MTM0150-15-DIGI-PC - Input Voltage: 120VAC, 60Hz - Output: 12/15VAC - Max Power Rating: 150W One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date. Please note that the warranty does not cover damage caused by personal misuse or improper installation.
