Summary of Contents for Dewenwils HOSL03H

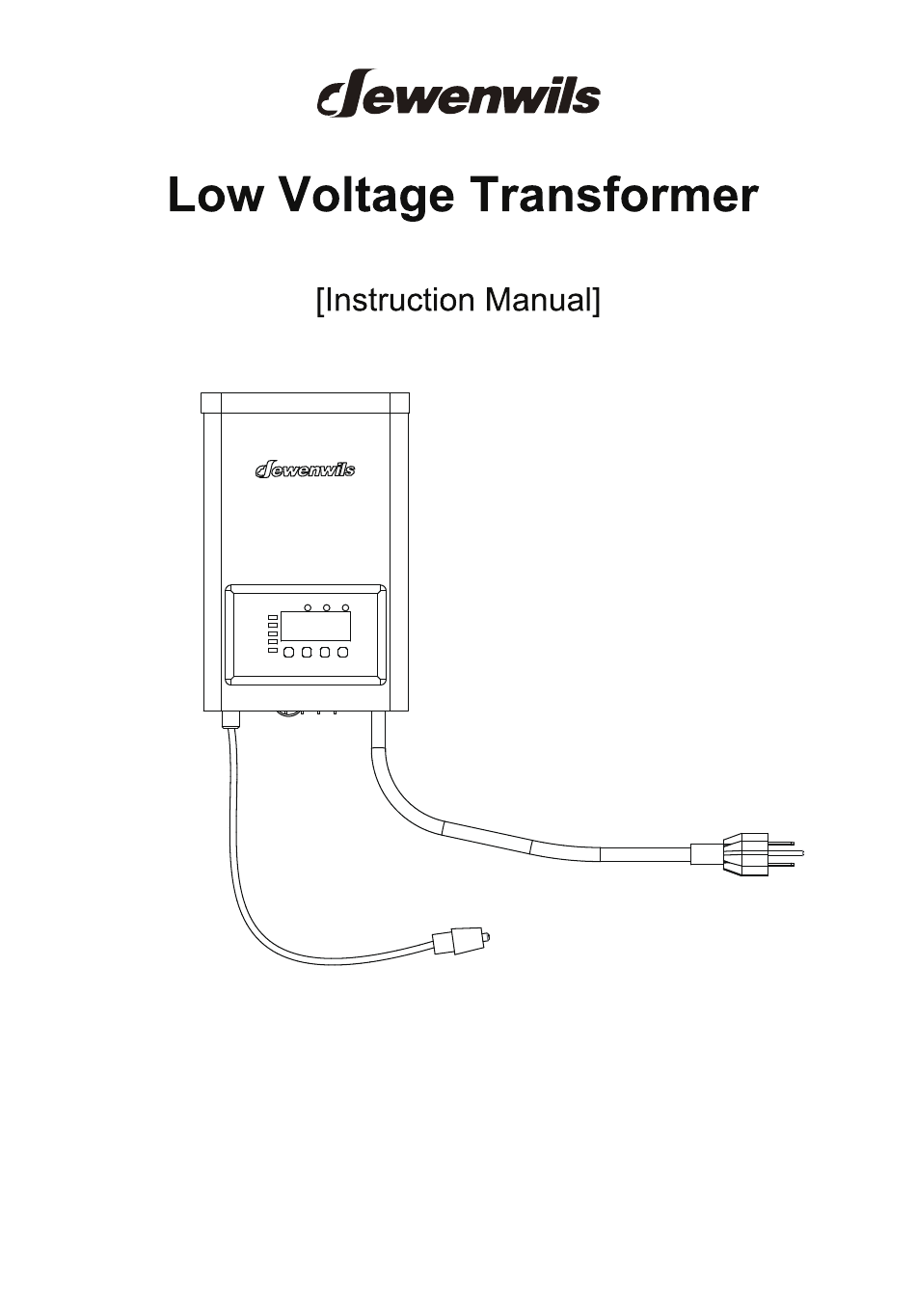

- Page 1 SKU: HOSL03H Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V20627...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS: Important safety information to reduce risk of fire injury. 1. Do not install within 10 feet (3 m) of a pool, spa or fountain. 2. There are no serviceable parts inside the power supply unit. DO NOT DISASSEMBLE IT. 3. - Page 3 2. Connecting the cable to the Transformer Lay the transformer on a flat, stable surface and use screwdriver to connect the stripped ends of the cable under the terminal clamping plate. Tips: Thread your cable through the white plastic loop to reduce its gravity. As the following image shows, there are 3 group wiring ports(COM/12V/ 14V for each group), you can choose any group of them to connect your cable.
- Page 4 4.Attaching Your Fixtures Use the cable connectors to attach your fixtures with the cable. Plug the transformer in the GFCI outlet and enter the ON mode. Then the lamps will light up. 5.Mounting the Transformer Use the screw to mount the transformer directly on a wall. 12 inch to 48 inch (0.3 m to 1.2 m) high from the ground would be suggested.12in.
- Page 5 6.Connecting & Mounting Photo Sensor Push the bi-pin connector into the mating socket, then screw the connector cover. Mount the photo sensor bracket on a wall or other solid surface with the screw provided. Snap the sensor into the bracket. Route or coil the excess wire to protect it from lawn mowers, trimmers, etc.
- Page 6 To change the operation modes of the transformer, press the MENU button to lit the indicator of the selected mode.
- Page 7 TEST - Use this mode to test the photo sensor and transformer operation. Covering the photo eye turns on the transformer. Uncovering the photo sensor during the daytime or shining a bright light onto the photo sensor will turn off the transformer. Note that there is no 30 seconds delay in this mode.
- Page 8 TIPS: 1. The transformer has a power-off memory function. When the transformer powers on again, the transformer will enter the working mode before the power failure. 2. Circuit breaker may need to be reset if the transformer is not working.
-
Page 9: Specifications
SPECIFICATIONS - Model: HD-120-12W-1 - Input Voltage: 120VAC, 60Hz - Output: 12VAC/14 VAC - Max Power Rating: 120W - Photo Sensor Cable Length: 6 ft PACKING LIST -1 x Low-Voltage Transformer -3 x Screws -3 x Wall Anchors -1 x Photo Sensor Bracket -1 x Photo Sensor -1 x Instruction Manual One Year Limited Warranty...
