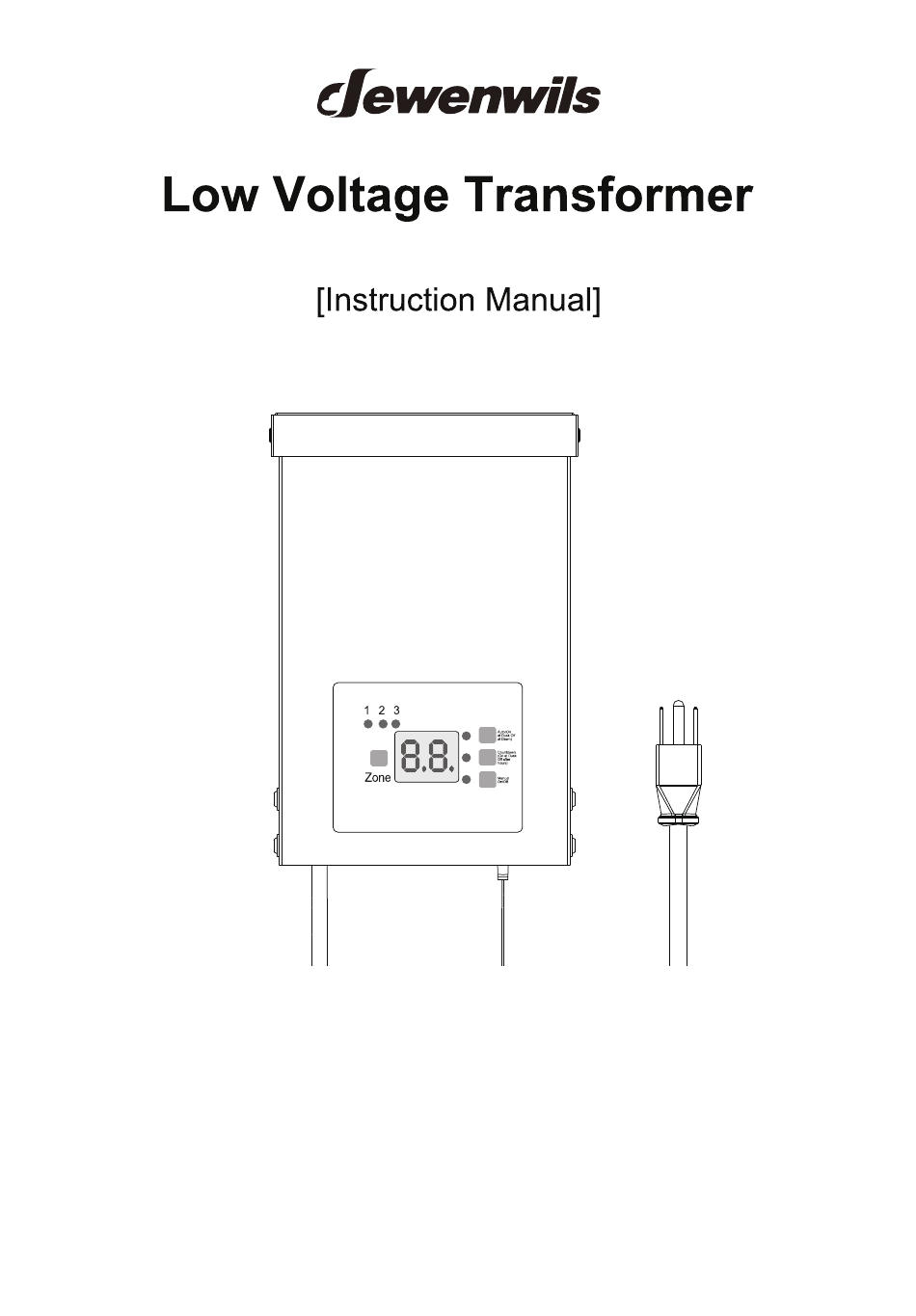

- Page 1 SKU: HOSL03E Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V20627...
- Page 2 SAFETY INSTRUCTIONS Important safety information to reduce risk of fire injury. 1. Do not install within 10 feet (3 m) of a pool, spa or fountain. 2. There are no serviceable parts inside the power supply unit. DO NOT DISASSEMBLE. 3.
- Page 3 2.Connecting the cable to the Transformer Lay the transformer on a flat, stable surface and use screwdriver to connect the stripped ends of the cable under the terminal clamping plate. Tips: Thread your cable through the white plastic loop to reduce its gravity. As the following image shows, there are 3 group wiring ports(COM/12V/ 14V for each group), you can choose any group of them to connect your cable.
- Page 4 5.Mounting the Transformer Use the screw to mount the transformer directly on a wall. 12 inch to 48 inch (0.3 m to 1.2 m) high from the ground would be suggested.12in. to 48in. (0.3m to 1.2m)
- Page 5 Tips: After completing installation, please remove the cap from the photocell sensor for exposing it to light.
- Page 6 Figure 1: OFF MODE The currently selected output port of the transformer has no output voltage, and the load lamps do not light up. Figure 2: ON MODE The currently selected output port of the transformer will maintain the output through the day, and the load lamps will be always on.
- Page 8 SPECIFICATIONS - Model: TD-120-12WF-1 - Input Voltage: 120VAC, 60Hz - Output: 12VAC/14 VAC - Max Power Rating: 120W - Photo Sensor Cable Length: 6 ft PACKING LIST 1 x Low Voltage Transformer 2 x Screws 2 x Wall Anchors 1 x Instruction Manual One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date.
