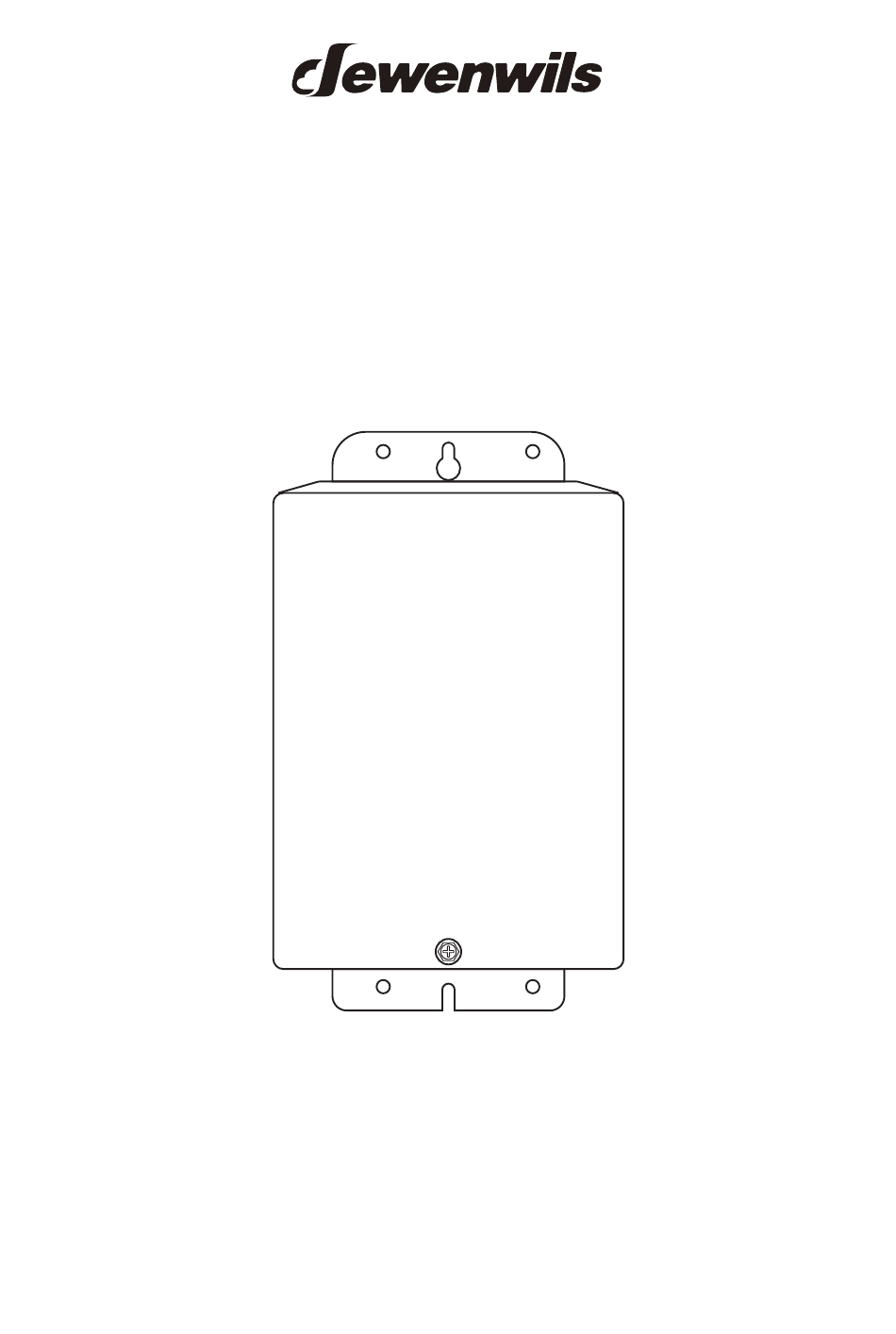

- Page 1 Low Voltage Transformer SKU: HOSL05C [Instruction Manual] Thank you for your purchase. Please contact us if you have any questions. We will get back to you within 24 hours. Email: support@dewenwils.com Please attach your Order ID so that we can serve you better.
- Page 2 Warning: All wiring and installation must be in accordance with local building and electrical codes. Always disconnect transformer from power source before performing work on lighting system. Calculate lighting capacity correctly – total load of fixtures may not exceed 300VA. 1.Disconnect from power source prior to opening the case.

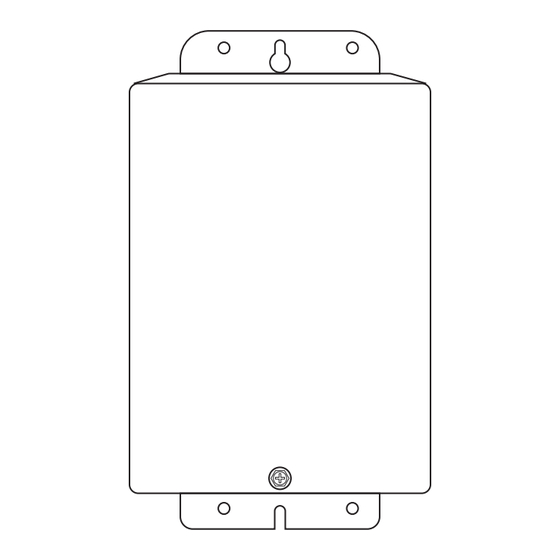

- Page 3 Installation 1. Turn off the main circuit. 2. Remove the metal cover by a screwdriver (NOT Included), and take out the mounting brackets, screws and anchors inside.(Figure 1) Figure 1 Upward 3. Unscrew the top and bottom screws on the back of the transformer, install the mounting brackets and tighten the screws again.
- Page 4 5.Use electrical tape to connect the Black Wire and White Wire of the High Voltage Wiring Compartment with your live and neutral wires seperately, then place these connected wire in the High Voltage Wiring Compartment.(Figure 4) Figure 4 6.Use the included wiring caps to connect the output line of the transformer with your load input line, then place the connected line in the Low Voltage...
- Page 5 - Max Power Rating: 300W One Year Limited Warranty DEWENWILS warrants this product to be free from defects in material and workmanship for a period of one year from the date of purchase. Warranty is void if damage is caused by misuse or improper installation.
