Dewenwils HOSL08E Instruction Manual

Low voltage transformer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

SKU: HOSL08E
Please pay attention to the warning signs
Read the instructions with caution before operating
and keep it properly
V31017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOSL08E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dewenwils HOSL08E

Summary of Contents for Dewenwils HOSL08E

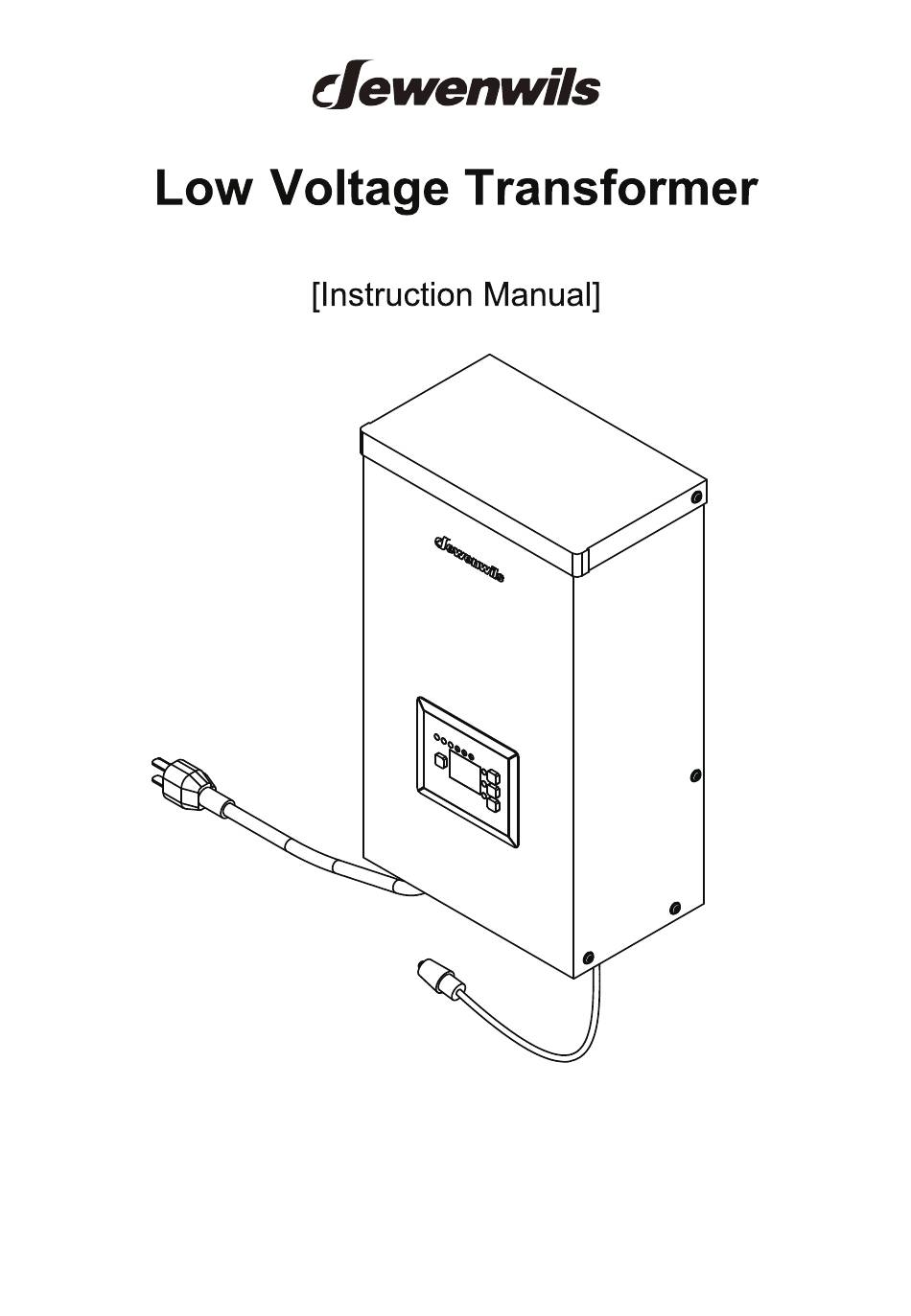

  • Page 1 SKU: HOSL08E Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V31017...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS: Important safety information to reduce risk of fire injury. 1. Do not install within 10 feet (3 m) of a pool, spa or fountain. 2. There are no serviceable parts inside the power supply unit. DO NOT DISASSEMBLE. 3.
  • Page 3 2. Connecting the cable to the Transformer Lay the transformer on a flat, stable surface and use screwdriver to connect the stripped ends of the cable under the terminal clamping plate. Tips: Wire under each terminal pressure plate and tighten screw securely. Make sure wire insulation clears pressure plate.
  • Page 4 4.Attaching Your Fixtures Use the cable connectors to attach your fixtures with the cable. Plug the transformer in the GFCI outlet and enter the ON mode. Then the lamps will light up. 5.Mounting the Transformer Use the screw to mount the transformer directly on a wall. 12 inch to 48 inch (0.3 m to 1.2 m) high from the ground would be suggested.12in.
  • Page 5 Tips: After completing installation, please remove the cap from the photocell sensor for exposing it to light. A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3...
  • Page 6 Figure 1: OFF MODE The transformer does not work, there is no output voltage, and the load lamps will not light. Figure 2: ON MODE The transformer will maintain the output throughout the day, and the load lamps will always be on. Note: If the "."...

  • Page 8: Specifications

    SPECIFICATIONS - Input Voltage: 120VAC,60Hz - Output: 12/14VAC - Max Power Rating: 600W PACKING LIST - Low Voltage Transformer x 1 - Instruction Manual x 1 One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date.
