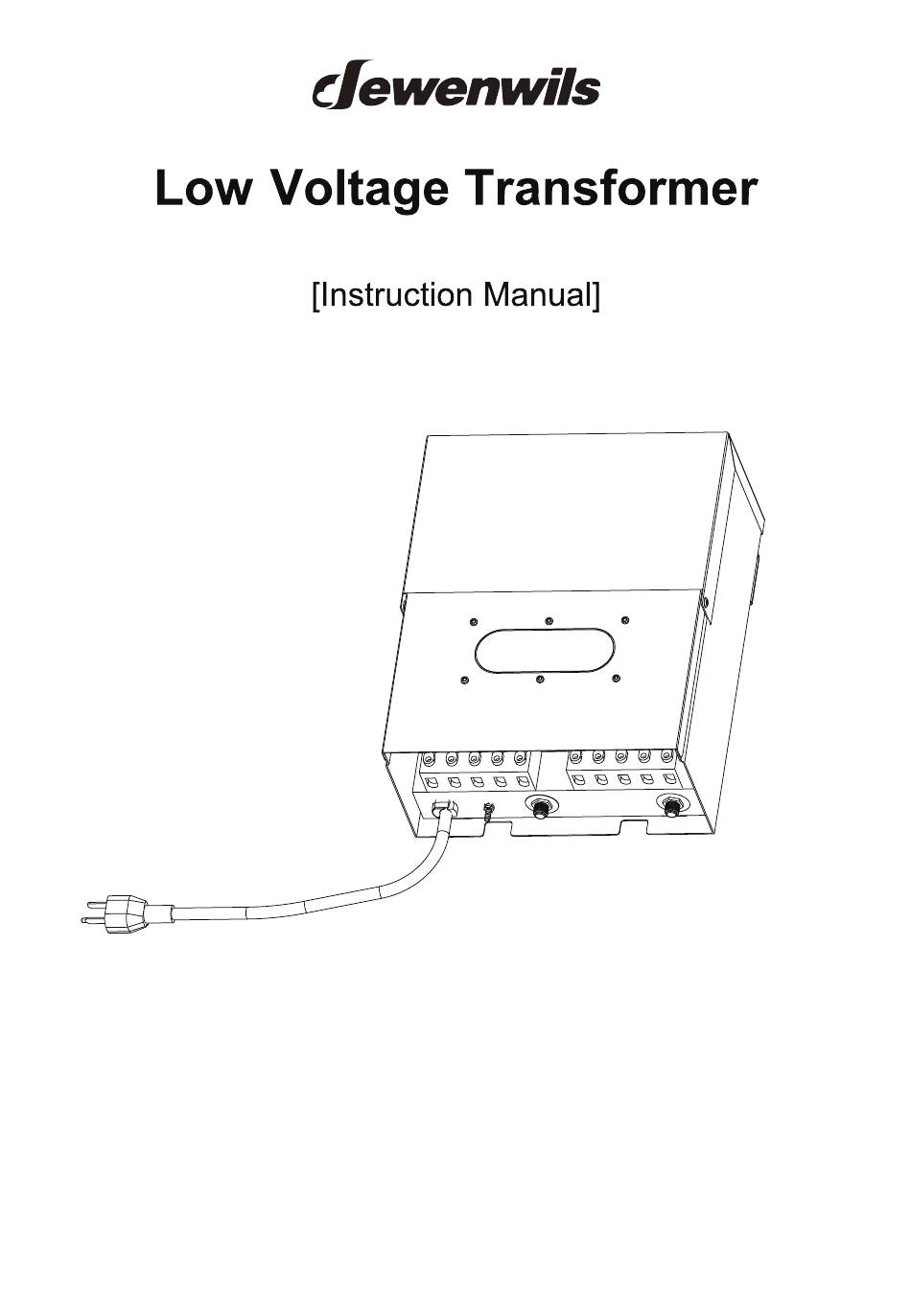

- Page 1 SKU: HOSL08A Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V20704...
- Page 2 SAFETY INSTRUCTIONS: Important safety information to reduce risk of fire injury. 1. Do not install within 10 feet (3 m) of a pool, spa or fountain. 2. There are no serviceable parts inside the power supply unit. DO NOT DISASSEMBLE. 3.
- Page 3 2. Connecting the cable to the Transformer Lay the transformer on a flat, stable surface and use screwdriver to connect the stripped ends of the cable under the terminal clamping plate. Tips: Wire under each terminal pressure plate and tighten screw securely. Make sure wire insulation clears pressure plate.
- Page 4 4.Attaching Your Fixtures Use the cable connectors to attach your fixtures with the cable. Plug the transformer in the GFCI outlet and enter the ON mode. Then the lamps will light up. 5.Mounting the Transformer Use the screw to mount the transformer directly on a wall. 12 inch to 48 inch (0.3 m to 1.2 m) high from the ground would be suggested.12in.
- Page 5 Figure 1: OFF MODE The transformer does not work, there is no output voltage, and the load lamps will not light. Figure 2: ON MODE The transformer will maintain the output throughout the day, and the load lamps will always be on. Note: If the "."...
- Page 6 TIPS: 1. When the transformer is working, the dot in the lower right corner of the display lights up. If the dot is not light up, it means that the transformer has no output voltage. 2. The transformer has a power-off memory function. After the transformer has been working in the current mode for 24 hours, the transformer will remember the current working mode.
- Page 7 Step 5: Press the up/down button to enter AUTO mode or COUNTDOWN mode, cover the sensor for more than 30s, the load lamp will light up. CABLE SELECTION CHART...
- Page 8 SPECIFICATIONS - Model: DA-600-12W4-1 - Input Voltage: 120VAC, 60Hz - Output: 12VAC/14 VAC - Max Power Rating: 600W, Each zone has a maximum output power of 300w. - Photo Sensor Cable Length: 6 ft PACKING LIST -1 x Low-Voltage Transformer -2 x Screws -2 x Wall Anchors -1 x Instruction Manual...
