Summary of Contents for Dewenwils HOSL07C

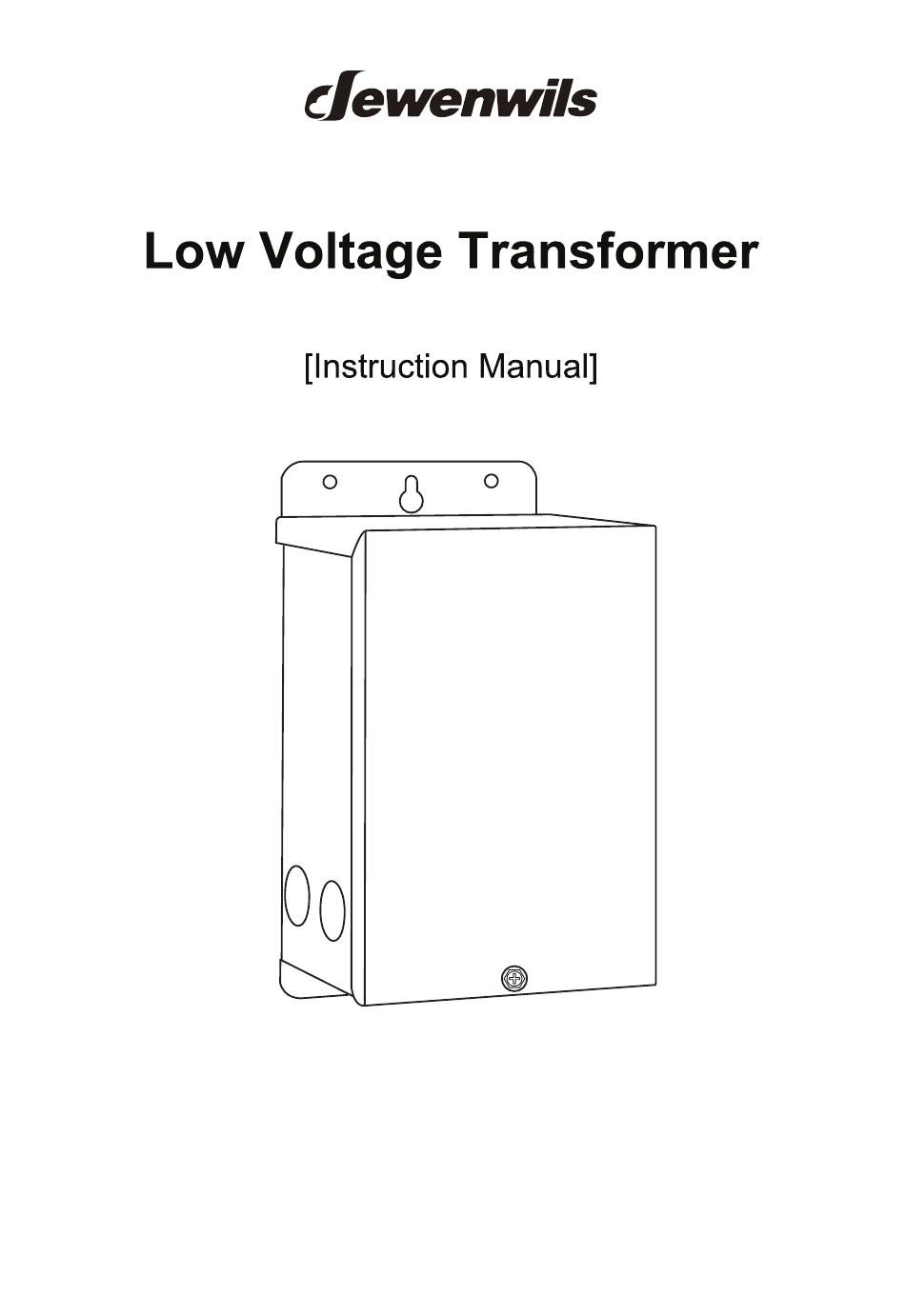

- Page 1 SKU: HOSL07C Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V21118...
- Page 2 Warning: All wiring and installation must be in accordance with local building and electrical codes. Always disconnect transformer from power source before performing work on lighting system. Calculate lighting capacity correctly - total load of fixtures may not exceed 200VA. 1.
-
Page 3: Installation
Installation 1.Turn off the main circuit. 2.Remove the metal cover with a screwdriver(Not included), and take out the mounting bracket, screws and anchors inside. (Figure 1) 3.Unscrew the top and bottom screws on the back of the transformer, install the mounting brackets and tighten the screws again. - Page 4 5.Use electrical tape to connect the Black Wire and White Wire of the High Voltage Wiring Compartment with your live and neutral wires separately, then place these connected wires in the High Voltage Wiring Compartment.(Figure 4) 6.Use the included wiring caps to connect the output line of the transformer with your load input line, then place the connected line...
-
Page 5: Circuit Breaker
Make all repairs to the lighting system before reconnecting the transformer to the power source. After the problem has been determined and solved, reset the breaker by flipping the Circuit Breaker. - Model: HOSL07C - Input Voltage: 120VAC, 60Hz - Output: 12/13/14VAC...
