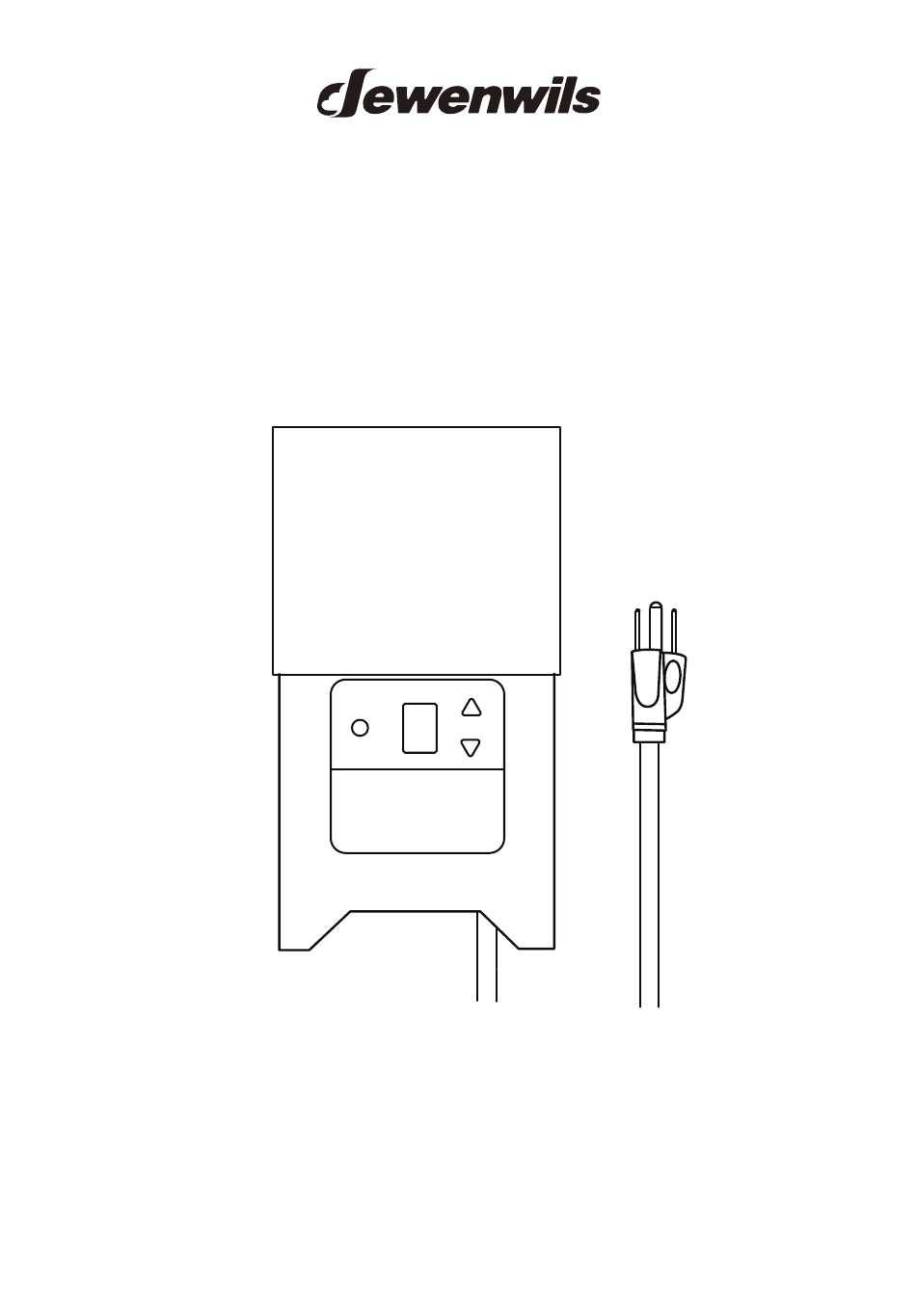

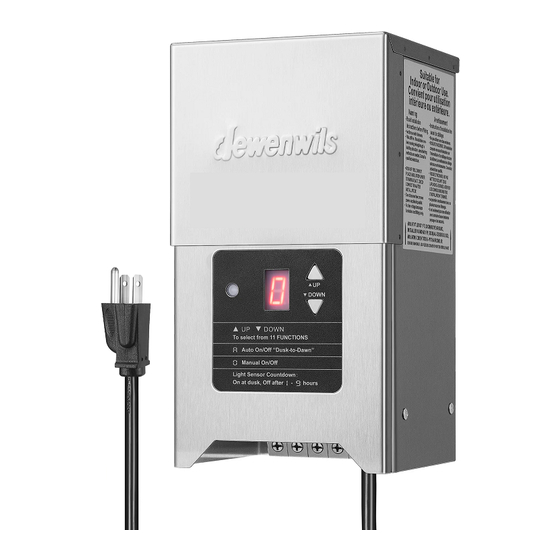

- Page 1 Low Voltage Transformer SKU: HSLT05A [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V30316...
- Page 2 SAFETY INSTRUCTIONS Important safety information to reduce risk of fire injury. 1.Do not install within 10 feet (3 m) of a pool, spa or fountain. 2.There are no serviceable parts inside the power supply unit. DO NOT DISASSEMBLE. 3.Do not repair or tamper with cord or plug. 4.Do not submerge transformer in water.
- Page 3 - Split the cable 2" and strip ½" of insulation from wire ends. - Insert the stripped wire ends into the terminals. - Tighten screws securely. SCREW CONNECTIONS MUST BE TIGHTENED 18lb-in. - Plug transformer power cord into a 120V GFCI protected receptacle marked "...
- Page 4 3.Placing Your Fixtures and Routing the cable Lay your fixtures (not included) to your desired location. Be sure they do not exceed the 300-watt rating of the transformer. Coil the rest of the cable after connecting the last fixture. 4.Attaching Your Fixtures Turn the transformer on.
- Page 5 Operating Instructions Figure 1: OFF MODE The transformer does not work, there is no output voltage, and the load lamps will not light. Figure 2: ON MODE The transformer will maintain the output throughout the day, and the load lamps will always be on. Figure 3: AUTO MODE In this mode, the transformer will take 30s to detect the external environment firstly.
- Page 6 and the load lamp will light. Then it will turn off automatically when the the countdown is over. If it is during the day, the transformer will have no output and the load lamps will not light. Note: When the system starts to count down, if the surrounding light shines on the sensor for more than 30s, the countdown will end, the transformer will stop output, and the load lamp will go out.
- Page 7 Step 3: Check whether the connection between the lamp and the buried wire is correct. Step 4: After troubleshooting, replug the transformer into the power outlet. Step 5: Press the up/down button to enter AUTO mode or COUNTDOWN mode, cover the sensor for more than 30s, the load lamp will light up. Specifications: - Input Voltage:120VAC，60Hz - Output:12/15VAC...
- Page 8 One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date. Please note that the warranty does not cover damage caused by personal misuse or improper installation. Please attach your Order ID and Name so that our dedicated customer service team can help you better.
