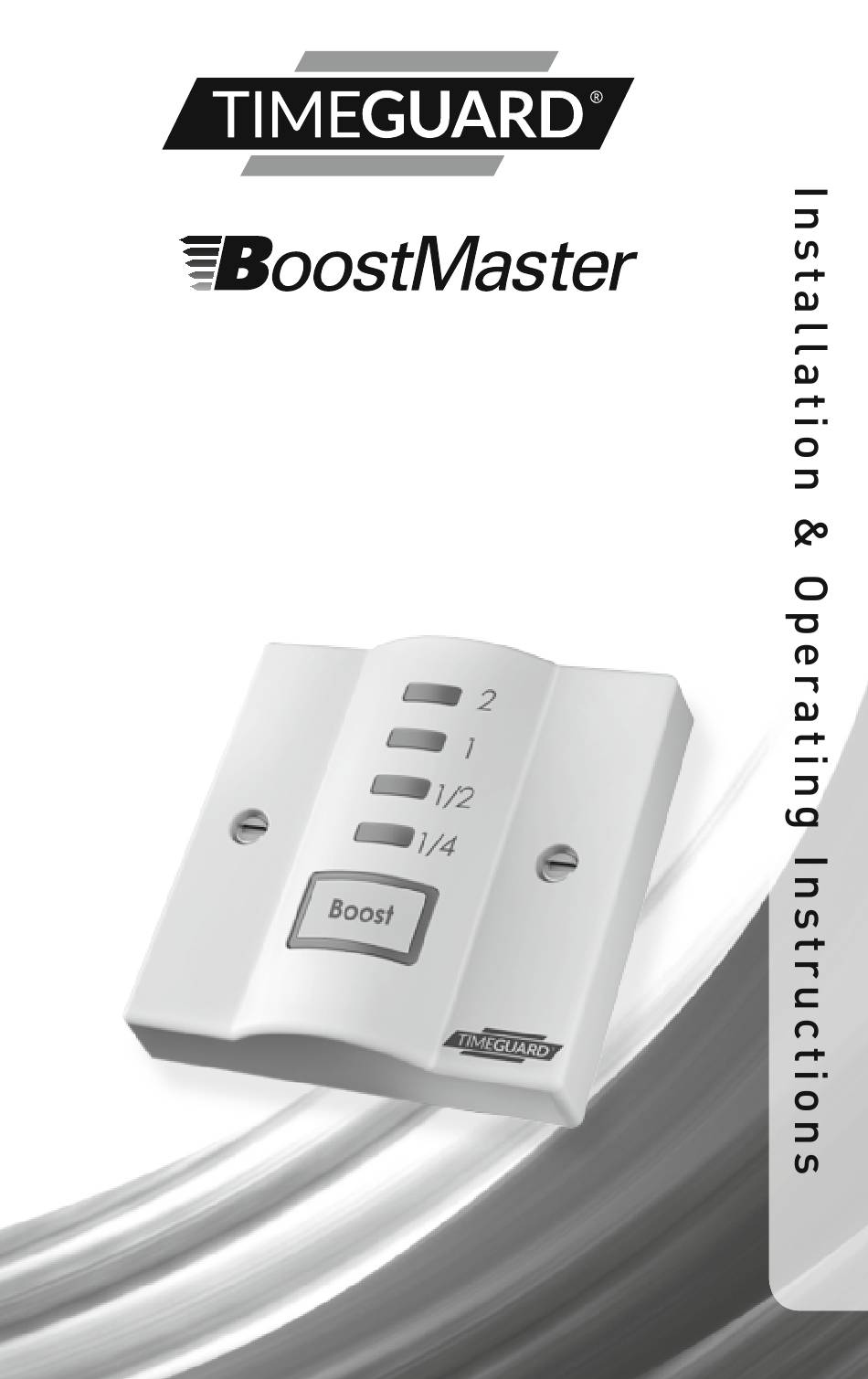

- Page 1 2 Hour Electronic Boost Timer Model No. TGBT4...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the boost timer is switched off and the circuit supply fuses are removed or the circuit breaker turned off. - Page 3 Also available in the Boost timer range: • TGBT5 4 hour boost timer. • TGBT6 2 hour plug-in boost timer. • FBT4 2 hour fused spur boost timer. • FBT5 4 hour fused spur boost timer. Boost time LED’s Boost Boost Button...
-
Page 4: Installation
4. Installation • Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned off. • Connect the incoming 230V 50Hz supply and outgoing load cables to the relevant terminals ensuring correct polarity is observed and that all bare conductors are sleeved (see section 5. -
Page 5: Connection Diagram
5. Connection Diagram The terminals are marked as follows on the rear of the boost timer; Live out Neutral out Live in Neutral in Cord grip/ blanking plate fixing screw holes Mains Supply Live (Brown or Red) to L IN Neutral (Blue or Black) to N IN Load Switch Live (Brown or Red) to L OUT... -
Page 6: Operation
6. Operation • The required boost time is selected by pressing the button marked boost, repeatedly. The LEDs adjacent to the time markers will light up in sequence, showing the selected boost period. • The LED’s adjacent to the time markers (above the Boost button) will light up in the sequence;... -
Page 7: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs... - Page 8 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
