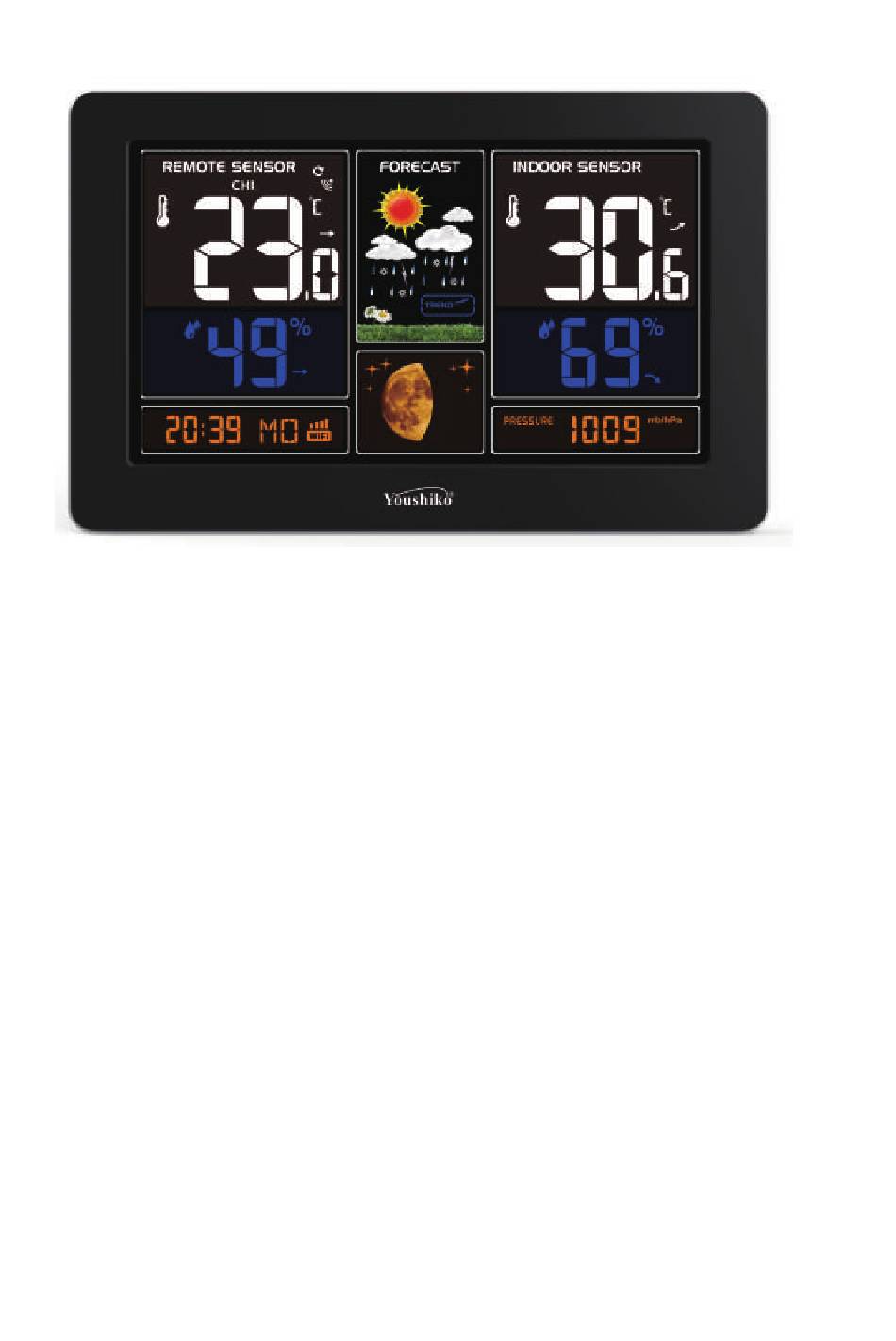

YOUSHIKO YC9463 WIFI WEATHER STATION
Technical Data and Features
Base station:
Perpetual Calendar Up to Year 2099
Day of week in 7 languages user selectable: English, German, Italian, French, Spanish,
Netherlands and Danish
Time in optional 12/24 hour format.
Automatic calibration of network time service
The moon phase display
Barometric pressure:
— Barometric pressure measurement ranges: 600 hPa/mb to 1100 hPa/mb
17.72 inHg to 32.50 inHg
450.1mmHg to 825.2mmHg
— Pressure alternatively in hPa/mb or inHg or mmHg
Indoor humidity measurable range: 20%RH to 95%RH
Indoor temperature:
— temperature measurement ranges:-20°C to 60°C
-4°F to 140°F
— Temperature alternatively in °C or °F.
Minimum/maximum display for humidity and temperature
The weather forecasting function (according to the change of air pressure)
Connects directly to wifi network, connect to Tuya Smart System
Power Supply:
Battery: 2 x LR6 AA and mains adapter: DC5V 1A
Advertisement
Table of Contents
Related Manuals for Youshiko YC9463
Summary of Contents for Youshiko YC9463
- Page 1 YOUSHIKO YC9463 WIFI WEATHER STATION Technical Data and Features Base station: Perpetual Calendar Up to Year 2099 Day of week in 7 languages user selectable: English, German, Italian, French, Spanish, Netherlands and Danish Time in optional 12/24 hour format.
- Page 2 Wireless Outdoor Sensor: ( Model no: YC9313 ) — Outdoor temperature measurement ranges: -40°C (-4°F) ~ 70°C (158°F) — Outdoor measurable range: 20%RH to 95%RH — Data transmission frequency: 433 MHz — Wireless range: max. 60 m (open area) — Batteries: 2 x LR06 (UM-3), 1.5 V (size AA) —...
- Page 3 Part A-Positive LCD A1: Time/Calendar / Weed A2: Outdoor Humidity A3: Outdoor Temperature A4: Weather Forecasting A5: Indoor Temperature A6: Indoor Humidity A7: Barometric pressure A8: Moon Phase Part B – Back button and power B1: “MEM” button B2: “MODE/SET” button B3: “▲/WIFI”...
-
Page 4: Preparation Before Use
Preparation before use/ Download Tuya Smart App: According to the brand of the phone, search for tuya through the IOS APP Store or Android's Google play, find the APP with the icon below, and download the APP. Initial operation: ... - Page 5 of the base station after the power adapter is unexpectedly cut off. Note: after the power adapter is disconnected, the WIFI connection of the base station will be automatically disconnected. So you must use power supply 24/7 Base station and APP bonding： ...
- Page 6 Starting to pair, the product, mobile phone and wireless Paired router are as close as possible successfully After the pairing is completed, the APP will automatically jump to the main interface, and the product will automatically update the network time, report the atmospheric pressure, indoor temperature and humidity, and the temperature and humidity of the three outdoor channels.
- Page 7 When the pairing is unsuccessful, you can try a few more times. If it is still unsuccessful, please press the product " " button once, the display of the time bar position will change 02 AP and WIFI icon, at the same time, AP will flash display, then WIFI The indicator light will flash once every 3 seconds.
-
Page 8: Manual Time Setting
choose the same channel at the same time (a total of 1, 2, 3 channel can choose) Press the " " key can switch the display of different channels of outdoor temperature and humidity, when displaying the symbol " ", will display the channel every 5 seconds automatically switch a channel ... - Page 9 Press “ ” button to confirm your setting, the language selection for the Weekday displays starts to flash. Now use “ ” and “ ” buttons to select a language. Language Sunday Monday Tuesday Wednesday Thursday Friday Saturday German, GE English, EN French, FR Italian, IT...
-
Page 10: Maximum/Minimum Temperature/Relative Humidity
After successfully connecting with the outdoor sensor, the weather station can display the outdoor temperature/humidity and the temperature/humidity trend (outdoor). You may see the following displays: The temperature/humidity is rising. The temperature/humidity is remaining constant. The temperature/humidity is falling. Maximum/Minimum Temperature/Relative Humidity ... -
Page 11: Background Lighting
slightly sunny cloudy rainy Heavy rainy Snowy cloudy The weather station can display the barometric pressure trend. You may see the following displays: The barometric pressure will rise. The barometric pressure will remain constant. The barometric pressure will fall. Background lighting ... - Page 12 This booklet may contain errors or misprints. The information it contains is regularly checked andλ corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized All enquires: service@youshiko.co.uk...
