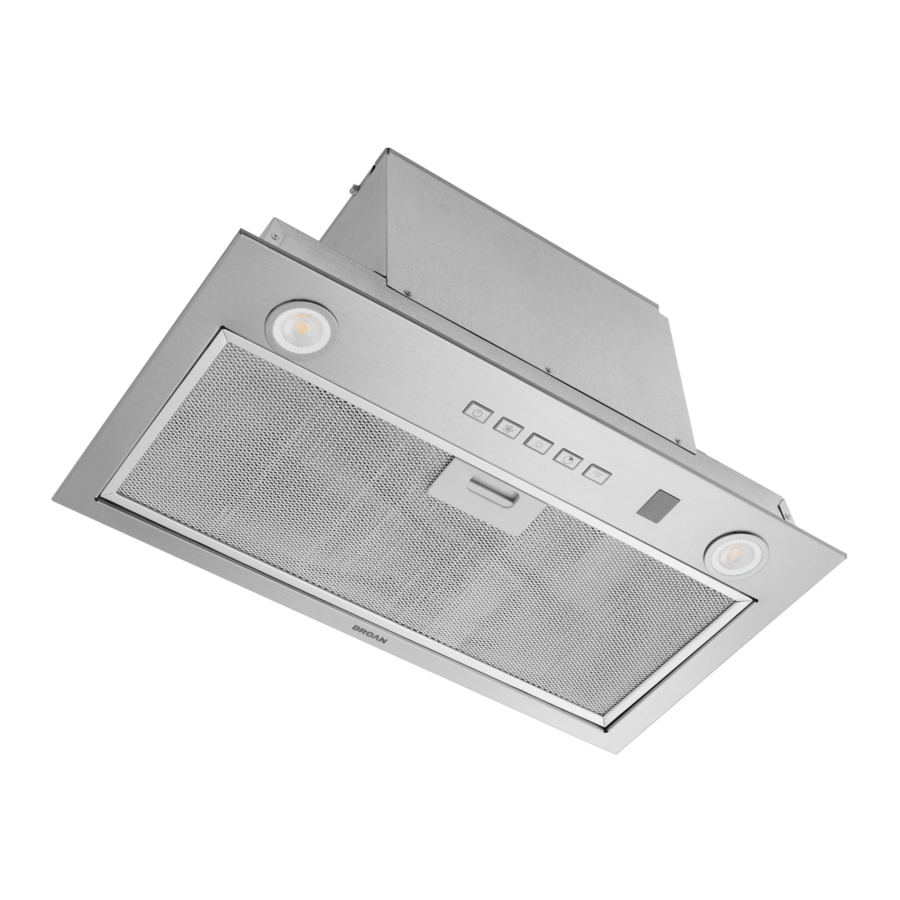

NuTone PM400SSV, PM600SSV Manual

INSTALLATION

RECOMMENDED TOOLS AND ACCESSORIES

• Measuring tape
• Phillips screwdriver no. 2
• Nut driver or socket 3/8"
• Flat blade screwdriver (to open knockout holes)
• Saw (to cut holes in cabinet)
• Sheet metal shears
• Pliers
• Metal foil duct tape
• Scissors (to cut metal foil duct tape)
• Pencil
• Wire stripper
• 2 Appropriate wire nuts
• Strain relief, 7/8" diameter (to secure house wiring cable to the hood)
• Liner (optional)

CONTENTS

Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.

Make sure that the following items are included:

INSTALL THE DUCTWORK (DUCTED INSTALLATION ONLY)

NOTE: To reduce the risk of fire, use only metal ductwork.

1. Decide where the ductwork will run between the hood and the outside. (FIG. 1)

2. A straight, short duct run will allow the unit to perform most efficiently.
3. Long duct runs, elbows, and transitions will reduce the performance of the unit. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
4. Install wall cap or roof cap (sold separately). Connect metal ductwork to cap and work back towards the unit location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

OPTIONAL LINERS

For installations where the unit unit is less than 30" above cooktop, this powerpack insert should be mounted into a metal liner (FIG. 2) to protect cabinetry combustible material from heat, in order to meet building code requirements. This will allow easier cleaning and provide protection to the cabinetry. Refer to table at right to find the liner model corresponding to the cabinet style and width.

FIG. 2

LINER MODEL	CABINET NOMINAL WIDTH
LB30SS	30"
LB36SS	36"

Visit www.broan-nutone.com or www.broan-nutone.ca to view specific model information.

REMOVE THE ADAPTER/DAMPER AND 6-IN. ROUND DAMPER ASSEMBLY

Detach and set aside the 3¼" x 10" adapter/damper and the 6-in.-round damper assembly (grey parts in FIG. 3) from back and one side of the powerpack insert by removing their 2 retaining screws. Discard the screws.

REMOVE THE CABINET BRACKETS

Detach the cabinet brackets (grey part in FIG. 4) from the back of the powerpack insert by removing its 3 retaining screws. Discard the screws.

Fold up and down the bracket until it is split in two separate parts (FIG. 5). Keep the brackets for possible further use.

NOTE: Both cabinet brackets have one wide edge and one narrow edge (FIG. 6), to cover all installation configurations depending on cabinet widths.

PREPARE THE CABINET

The cabinet must be secured to wall studs or other wooden framework behind the drywall to support the weight of this unit. Failure to do so may cause personal injury or damage to countertop or cooktop.

NOTES:

1. The unit has to be installed inside the cabinet. If installing with one of the optional liners, use it as a template to cut the hole in the bottom of the cabinet.
2. The unit should be mounted centered laterally over the cooktop burners.
3. For back to front position, the unit must be mounted according to local building codes.

1. Cut a hole in the bottom of the cabinet, using the dimensions shown (FIG. 7), or use the optional liner as a template.

2. Where needed, install the metal liner.
3. Measure the remaining material of the cabinet bottom sides (C), (FIG. 8) if it is 1/4" or more, there is no need to use the cabinet brackets. Go to step 8 in "PREPARE THE CABINET".
4. When there is less than 1/4" remaining material (C), carefully remove those strips. Measure the cabinet inner width (D) (FIG. 8).

   Refer to the table below to see which cabinet bracket edge configuration must be used.

NARROW EDGE	WIDE EDGE
D From 19-9/16" to < 20"	D From 20" to 20-1/2"

5. Pay attention to the Ease of Install hooks location on the unit (distance given from unit front flange, FIG. 9).

   Measure and mark the position of the Ease of Install hooks (shown as E in FIG. 10 on next page) on both cabinet side walls.
6. Install the cabinet brackets as follow (FIG. 10):

   1. Align the bracket flush with the bottom of the right cabinet side panel, with the hooks marked position (E) between the bottom embossed holes. For the narrow edge configuration, trace a line on the top of the bracket. For wide edge configuration, trace a line at the bottom of the central slots.
   2. Lift the bracket flush with the marked lined. Assemble the bracket to the cabinet side panel using 2 no. 8 x 5/8" wood screws (included in parts bag) through the upper holes.
      NOTE: Do not use the embossed holes to attach the bracket to the cabinet.
   3. Repeat steps to for the left cabinet side panel.
   4. Measure the distance between both bottom bracket edges (F) (FIG. 11). The table below shows the appropriate distance needed.

      If the measured distance needs to be shortened, screw two no. 8-32 x 1/4" machine screws, in each bottom embossed cabinet brackets hole; this will slightly bend the bottom part of the brackets (FIG. 12). Screw both brackets until the appropriate distance is obtained.


HORIZONTAL EXHAUST INSTALLATION ONLY (ALL UNITS)

This powerpack insert is factory shipped to exhaust vertically; however, it is possible to make it exhaust horizontally (3¼" x 10" ducting only).

8. Cut the hole for the horizontal exhaust through the back wall of the cabinet using the dimensions shown. (FIG. 13).


PREPARE THE UNIT

ALL INSTALLATIONS

NOTE: Since this manual covers 2 different unit models, some details in the following illustrations may slightly differ from your unit.

1. If present, remove all protective polyfilm from the unit and/or parts.
2. Remove the grease filter by pushing down on latch tab and tilting the filter downward (FIG. 14). Set aside the filter.

3. Disassemble the electrical compartment cover (grey part in FIG. 15) from inside the unit by removing its retaining screw. Remove the parts bag behind the cover. Set aside the parts bag and the cover along with its screw.

4. Punch out one of the two knock-out holes. Install an appropriate 7/8" diameter strain relief (not included, grey part in FIG. 16).


NOTE: The HCK44 cord connection kit (optional) can be used instead of the house power cable. Refer to the instruction packed with the HCK44 cord connection kit.

HORIZONTAL EXHAUST INSTALLATION ONLY

5. Remove and discard the screw circled in FIG. 17.

   NOTE: This screw might be present or not.
6. Unplug the blower cable from its connector on faceplate.
   Disassemble the faceplate from the unit by removing its 4 retaining screws (two per side, circled in FIG. 18). Set aside the faceplate along with its screws.

7. Remove the 4 screws (two per side) retaining the blower support plate to the top of the unit (FIG. 19). Carefully lift out and set aside the blower with its support plate. The blower will be reinstalled later in the unit.

8. From inside the unit, detach the back plate (grey part in FIG. 20) by removing its both retaining nuts using 3/8" diameter socket. Set aside the nuts and plate.

9. Install the back plate on top of the unit, where the blower support plate was. Orient the holes nearby the corners towards the back of the unit. Assemble to the top of the unit using 4 screws previously removed in step 7 (FIG. 21).


VERTICAL EXHAUST INSTALLATION ONLY

10. For rectangular ducting, use 2 included no. 8-18 x 1/4" metal screws to attach the included 3¼" x 10" adapter damper on top of the unit, over the blower exhaust opening (FIG. 22).


NOTE: The damper hinge must be towards the front of the unit.

For round ducting, use 4 included no. 8-18 x 1/4" metal screws to attach the included 6-in. round (or 8-in. round, PM600SSV unit only) adapter damper on top of the unit, over the blower exhaust opening (FIG. 22).

NOTE: The damper hinge must be parallel to the sides of the unit.

INSTALL THE UNIT

1. Run house power cable between service panel and unit location. Stub out a 2-foot length of power cable inside the cabinet. Insert the power cable in the unit through the 7/8" diameter strain relief previously installed.
   NOTE: Not necessary if the optional HCK44 cord connection kit is used.
2. Insert the unit in the cabinet, until you feel a 'click' from both sides of the unit, confirming that the Ease of Install Hooks rest on the top of the cabinet bottom sides , or cabinet brackets or (FIG. 23). Move the unit from left to right, from rear to front and up to ensure the Ease of Install Hooks are retaining the unit inside the cabinet.

   NOTE: The unit will be protruding below the cabinetry until tightened.
   NOTE: If, for any reason, the unit has to be removed from the cabinet, it is possible to disengage the Ease of Install Hooks. To do so, while holding and pushing on one side of the unit, lift simultaneously the Ease of Install Hooks levers (1 and 2, grey parts in FIG. 24) in the other side of the unit until the hooks are retracted.

3. Lift the unit until contact is made between the unit flange and cabinet. Secure the unit to the cabinet using 4 no. 8 x 5/8" wood screws included in parts bag (2 screws per side). Use upper or lower holes (1, 2, 3, 4, 5 or6) (FIG. 25).


   The Ease of Install hooks TEMPORARILY hold the unit in place. The unit MUST BE secured to the cabinet using the included 4 screws.

   Never use this unit as a shelf.

HORIZONTAL EXHAUST INSTALLATION ONLY

4. From inside the unit, slide the 3¼" x 10" adapter/damper in the horizontal duct, then attach it to the unit using aluminum duct tape all around the joint (FIG. 26). Ensure the damper opens as shown in damper side view.

5. Insert the blower with its support plate inside the unit, where the back plate was initially (A). Attach to the unit using 2 nuts previously removed in step 8 in "PREPARE THE UNIT" (B) (FIG. 27).

6. Reinstall and secure the faceplate to the unit using its 4 retaining screws (two per side, circled in FIG. 28). Plug the blower cable to its connector on faceplate (FIG. 28).


CONNECT DUCTWORK

VERTICAL EXHAUST INSTALLATION ONLY

Ducted Installation
Use 6-in. round, 8-in. round (PM600SSV only) or 3¼" x 10" metal duct to connect the adapter damper on the top of the unit to the ductwork above (FIG. 29, 8-in. round not shown). Seal the joint using aluminum duct tape.

Non-Ducted Installation
A non-duct kit is required for this type of installation
(purchase separately, model number: HARKPM21).
To install, follow the instructions packed with the kit.

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

1. Using appropriate wire nuts (not included), connect house power cable to unit wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire to GREEN ground screw (FIG. 30).

2. Reinstall the electrical cover in the unit; ensuring the bottom tabs are inserted in their embossed location. Secure in place using its retaining screw (FIG. 31).


Take care not to pinch wires while reinstalling wiring cover.

INSTALL THE FILTER

Ducted Installation

Reinstall the grease filter.

Non-Ducted Installation

Attach the non-ducted filter (included with the HARKPM21 non-duct kit) to the back of the grease filter using clips (provided with non-ducted filter). To order a new nonducted filter, use service part number S99010464.

OPERATION

PM400SSV

NOTES:

1. Each time a key is pressed, a beep is emitted to acknowledge the command. To disable, when the fan and lights are OFF, press on the Lights key (Ž) for 5 seconds. To put it back, when the fan and lights are OFF, press again on the Lights key ( Ž) for 5 seconds.
2. Each time a key is pressed, its backlight turns ON. When a function is turned OFF, so does the corresponding key backlight.

1. Master ON/OFF:
   Press this key to turn on the light and the fan at the last saved intensity. The backlights of the master ON/OFF button, fan button and light button are turned ON. When either light and fan are ON, pressing on this key will memorize the current fan speed and lighting level prior to shut them OFF.
   Whenever there is an active function (light or fan is turned ON directly by pressing the fan or light key), the master ON/OFF backlight is turned ON. When the last active function is turned OFF (light or fan is turned OFF directly by pressing the fan or light key), the master ON/OFF backlight is also turned OFF.
2. Fan:
   When fan is OFF, a key press turns ON the fan to the last saved speed. If there was no speed saved, the fan will be set on LOW speed. To change the fan speed, press the key again until the desired speed is reached (from LOW, to MEDIUM to HIGH speed to OFF).
   When the fan is ON (no matter the speed level), a long key press turns the fan OFF and the current fan speed setting is saved to memory.
   Filter Cleaning Reminder
   When the user turns the fan OFF, and the fan key backlight flashes slowly during 30 seconds, then this means it is time to clean the hood and filter. Refer to the Maintenance and Cleaning Section. This will happen every time the user turns the fan OFF (and the timer has not been reset).
   Once the cleaning is done, at any time during the 30-second signal (and the fan is OFF), a long press of the fan key will reset the timer and stop the key backlight flashing.
3. Lights:
   Press this key to turn ON the lights to the last saved intensity. If there was no light intensity saved, the lights will be set on LOW intensity. Press another time to set the lights to HIGH intensity. Pressing another time after the HIGH intensity will turn OFF the light.
   When the lights are ON, a long press turns the lights OFF and the current light intensity is saved to memory. The next time the lights are turned ON (either with the light key or the master ON/OFF key), it does so at the last saved intensity.
4.  Delay OFF:
   When fan is ON, press this key to activate the delay function; the delay off key backlight will be ON for the duration of the delay (or until cancelled). The fan will continue to operate for 10 minutes and then, will shut off automatically.
   When the delay mode is active, it is possible to change the fan speed by pressing the fan key without affecting the remaining time of the delay.
   To cancel the delay function before the end of the 10 minute-cycle, press again on the delay OFF key or on the Master ON/OFF key.
5.  Wi-Fi/Bluetooth^®:
   Go to "WI-FI/BLUETOOTH® (PM400SSV AND PM600SSV)".

PM600SSV

NOTES:

1. Each time a key is pressed, a beep is emitted to acknowledge the command. To disable, when the fan and lights are OFF, press on the Lights key ( Ž) for 5 seconds. To put it back, when the fan and lights are OFF, press again on the Lights key (Ž) for 5 seconds.
2. Each time a key is pressed, its backlight turns ON. When a function is turned OFF, so does the corresponding key backlight.

1. Master ON/OFF:
   Press this key to turn on the light and the fan at the last saved intensity. The backlights of the master ON/OFF key, fan key and light key are turned ON. When either light and fan are ON, pressing on this key will memorize the current fan speed and lighting level prior to shut them OFF.
   Whenever there is an active function (light or fan is turned ON directly by pressing the fan or light key), the master ON/OFF backlight is turned ON. When the last active function is turned OFF (light or fan is turned OFF directly by pressing the fan or light key), the master ON/OFF backlight is also turned OFF.
2.  Fan:
   When fan is OFF, a key press turns ON the fan to the last saved speed. If there was no speed saved, the fan will be set on LOW speed. To change the fan speed, press the key again until the desired speed is reached (from LOW, to MEDIUM-LOW, to MEDIUM-HIGH, to HIGH speed to OFF).
   When the fan is ON (no matter the speed level), a long key press turns the fan OFF and the current fan speed setting is saved to memory.
   Filter Cleaning Reminder
   When the user turns the fan OFF, and the fan key backlight flashes slowly during 30 seconds, then this means it is time to clean the hood and filter. Refer to the Maintenance and Cleaning Section. This will happen every time the user turns the fan OFF (and the timer has not been reset).
   Once the cleaning is done, at any time during the 30-second signal (and the fan is OFF), a long press of the fan key will reset the timer and stop the key backlight flashing.
3. Ž Lights:
   Press this key to turn ON the lights to the last saved intensity. If there was no light intensity saved, the lights will be set on LOW intensity. To change the lights intensity, press the key again until the desired level is reached (from LOW, to MEDIUM, to HIGH intensity, to OFF).
   When the lights are ON, a long press turns the lights OFF and the current light intensity is saved to memory. The next time the lights are turned ON (either with the light key or the master ON/OFF key), it does so at the last saved intensity.
4.  Auto (SMART SENSE):
   When the fan is OFF, press this key to enable the Auto mode. When a cooking session is detected, this function will automatically start or adjust the fan speed according to the heat detected on the cooktop. The fan will automatically turn OFF when there is no longer sufficient heat detected on the cooktop.
   When the hood is OFF and not in use for 3 minutes, the Auto key backlight will automatically turn OFF. Pressing any key will turn the backlight back ON. To disable the Auto mode, press for a long time the Auto key until the backlight turns OFF.
   Manual fan speed adjustment in Auto mode:
   When the Auto mode is operating, it is possible to manually change the fan speed using the fan key. The Auto key backlight will turn OFF to indicate that the Auto mode is on pause (until the fan has been manually turned OFF). When the heat is sufficiently low on the cooktop, the Auto mode function will automatically be re-enabled and its backlight will turn ON.
   Auto Mode Characteristics:
   • The Auto Mode sensor measures the temperature related to cooking activity on the range or cooktop.
   • When removing a pan or pot from a hot stove surface, the fan speed may increase. This is not unusual since the sensor detects a temperature increase.
   • The fan may turn OFF when cooking at a very low temperature level, especially with induction units.
   • The fan may turn OFF temporarily when adding cold or frozen items in the pan or pot. When the items heat up sufficiently, the fan will automatically turn back ON.
   • When opening the door of a hot oven or when running a self-cleaning oven, the fan may start automatically.
   • When starting to cook, there may be a short delay of the fan operation while the pot/pan heats up.
   • After cooking is finished, it is normal for the fan to remain ON for a short period of time until the cooking surface/pot/pan cools down.
5.  Wi-Fi/Bluetooth^®:
   Go to "WI-FI/BLUETOOTH® (PM400SSV AND PM600SSV)".

WI-FI/BLUETOOTH® (PM400SSV AND PM600SSV)

This key is used to pair the powerpack insert (via Bluetooth to a smart device and to connect it to your home Wi-Fi network, or deactivate Wi-Fi/Bluetooth.

ACTIVATING PAIRING MODE

Before starting this procedure, ensure fan and lights are OFF.
Press the key 3 seconds to initiate the pairing process, if the Wi-Fi/Bluetooth function was OFF, it will turn back ON. The key backlight will flash (15 secs) showing that the device is ready to be paired.

WI-FI/BLUETOOTH FUNCTIONALITY

To turn OFF the Wi-Fi/Bluetooth function, press the key for 3 seconds. Once the key backlight is flashing, press the Master ON/OFF key () for 3 seconds. The Wi-Fi/ Bluetooth function and key backlight will turn OFF. To turn back ON the Wi-Fi/Bluetooth function, press the key for 3 seconds.

When the hood is OFF and not in use for 3 minutes, the Wi-Fi/Bluetooth key backlight will automatically turn OFF. Pressing any key will turn the backlight back ON.

RESETTING WI -FI /BLUETOOTH

To reset the Wi-fi/ Bluetooth connectivity (remove saved devices and disconnect from the Wi-Fi network), press the key for 3 seconds. Once the key backlight is flashing, press the key again for 10 seconds.

ESSENTIALS TO CONNECT YOUR WI -FI /BLUETOOTH UNIT

Before you connect your powerpack insert to a Wi-Fi network, you will need:

• A smart device with the latest version of iOS or Android operating system
• The smart device has access to the internet and Wi-Fi and Bluetooth are enabled
• The smart device within 5 meters (16 ft.) of the powerpack unit
• The powerpack unit is within the Wi-Fi signal range of your home network
• The name of your Wi-Fi home network (SSID) and its password
• No other Bluetooth enabled smart device nearby.

CONNECTING YOUR WI -FI /B LUETOOTH UNIT

1. Download the Broan Kitchen app.




2. Follow the instructions in the app.
3. Scan the QR code below if you need more details for installing and using the app.


USING YOUR CONNECTED ITEM

Now that your unit is properly connected, you can experience all the functionalities through the app. Even if you are not physically close to the unit, you can control it through the app using your Wi-fi network.

VOICE CONTROL

You can control the powerpack insert through your voice assistant device (Alexa or Google Home).

USING ALEXA APP OR ALEXA SPEAKER OR DISPLAY

You can rename your powerpack insert using the Alexa app. Keep in mind that this only renames the device on Alexa's end.

Here are some of the currently Alexa voice commands for your powerpack insert:
Alexa, turn ON powerpack
Alexa, turn OFF powerpack
Alexa, set the powerpack fan ON
Alexa, set the powerpack fan OFF
Alexa, set powerpack fan speed to 1
Alexa, set powerpack fan speed to 2
Alexa, set powerpack fan speed to 3
Alexa, set powerpack fan speed to 4 (PM600SSV unit only)
Alexa, set the powerpack lights ON
Alexa, set the powerpack lights OFF
Alexa, set powerpack lights to 1
Alexa, set powerpack light to 2
Alexa, set powerpack lights to 3 (PM600SSV unit only)

USING GOOGLE ASSISTANT ENABLED SPEAKER OR DISPLAY

Alexa, set powerpack lights to 3 (PM600SSV unit only) Say "Hey Google" and Google will start listening to your commands.

Here are some of the currently Google voice commands for your powerpack insert:
Hey Google, turn ON powerpack
Hey Google, turn OFF powerpack
Hey Google, set the powerpack fan ON
Hey Google, set the powerpack fan OFF
Hey Google, set powerpack fan speed to 1
Hey Google, set powerpack fan speed to 2
Hey Google, set powerpack fan speed to 3
Hey Google, set powerpack fan speed to 4 (PM600SSV unit only)
Hey Google, set the powerpack lights ON
Hey Google, set the powerpack lights OFF
Hey Google, set powerpack lights to 1
Hey Google, set powerpack light to 2
Hey Google, set powerpack lights to 3 (PM600SSV unit only)

FIRMWARE UPDATE

Periodic firmware updates will improve your experience using the unit. You will be able to explore new features that are added to the device and have enhanced user experience while interacting with the device. A Broan user account must be created in order to take advantage of Firmware updates.

When updates are available, you will be notified through the app. We recommend installing updates when they are available; it only takes a few minutes.

When a firmware is available, you will need:

• the powerpack insert connected to your Wi-Fi home network
• your smart device with the Broan app properly installed and configured

ALL UNITS

HEAT SENTRY™

Your unit is equipped with a HEAT SENTRY™ thermostat.
This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1. If blower is OFF - it turns blower ON to HIGH speed.
2. If blower is ON at a lower speed setting - it turns blower up to HIGH speed.

When the temperature level drops to normal, the blower will return to its original setting.

NOTE: When Heat Sentry is activated, the fan key backlight flashes slowly and the fan speed cannot be changed.

The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF. When this occurs, it is impossible to turn the blower OFF with its key. If you must stop the blower, set the main power switch (located behind the filter, on inner side of the unit faceplate) in OFF position (if it is possible to do so safely).
See inset in FIG. 32.

CODE READY TECHNOLOGY™ ACTIVATION

The Code Ready Technology option allows to change the blower output from the factory setting (PM400SSV: 400 CFM, PM600SSV: 600 CFM) to a maximum of 300 CFM for PM400SSV unit and 400 CFM or 300 CFM for PM600SSV unit. Activating the CRT option will reduce the airflow, so that the powerpack insert will perform within the allowable limit of Make-Up Air (MUA) codes (to meet some building code requirements). Do not change the blower CFM setting unless this change is required by code. This change will alter the performance of the product.

1. This change CANNOT be reverted.
2. CRT can only be set withinthe first 5 minutes of applying power to the unit.
3. A power outage will not deactivate the CRT.
4. Fan and lights must be OFF.

CRT PROCEDURE FOR PM400SSV UNIT

1. Switch power ON using the main power switch (located behind the filter) and press simultaneously on Fan (A) and Lights (B) keys for 5 seconds; Fan (A) and Lights (B) key backlights will now flash to indicate you entered the CRT menu.
2. To select the 300 CFM maximum airflow, press on the Lights (B) key for 5 seconds, then release; the Lights key backlight will now flash to indicate 300 CFM has been selected (the Fan (A) key backlight will be shut).
3. A second 5-second press on the Lights (B) key and release confirms the selection; the Lights key backlight quickly flashes twice and the buzzer sounds a double beep. The user interface returns to normal operation.
4. Locate the CRT sticker near the HVI Certification label inside the hood, behind the filter.
   Check the proper box (300 CFM).

CRT PROCEDURE FOR PM600SSV UNIT

1. Switch power ON using the main power switch (located behind the filter) and press simultaneously on Fan (A) and Lights (B) keys for 5 seconds; Fan (A) and Lights (B) key backlights will now flash to indicate you entered the CRT menu.

400 CFM MAXIMUM AIRFLOW

2. To select the 400 CFM maximum airflow, press on the Fan (A) key for 5 seconds, then release; the Fan key backlight will now flash to indicate 400 CFM has been selected (the Light (B) key backlight will be shut).
3. A second 5-second press on the Fan (A) key and release confirms the selection; the Fan key backlight quickly flashes twice and the buzzer sounds a double beep. The user interface returns to normal operation.
4. Locate the CRT sticker near the HVI Certification label inside the powerpack insert, behind the filter. Check the proper box (400 CFM).

300 CFM MAXIMUM AIRFLOW

2. To select the 300 CFM maximum airflow, press on the Lights (B) key for 5 seconds, then release; the Lights key backlight will now flash to indicate 300 CFM has been selected (the Fan (A) key backlight will be shut).
3. A second 5-second press on the Lights (B) key and release confirms the selection; the Lights key backlight quickly flashes twice and the buzzer sounds a double beep. The user interface returns to normal operation.
4. Locate the CRT sticker near the HVI Certification label inside the powerpack insert, behind the filter. Check the proper box (300 CFM).

MAINTENANCE & CLEANING

ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY BEFORE CARRYING OUT ANY OPERATIONS ON THE APPLIANCE.

Grease Filter

The grease filter should be cleaned frequently. Use a warm dishwashing detergent solution. Grease filter is dishwasher safe.

Clean the filter in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. To minimize or prevent discoloration, hand wash filter using a mild detergent.

Non-Ducted Recirculation Filter

The Non-Ducted Recirculation filter should be changed every 3 to 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking.

STAINLESS STEEL CLEANING

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the unit. During construction/ renovation, cover the unit to make sure no dust sticks to the stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range. Wiring Diagrams

WIRING DIAGRAMS

PM400SSV

PM600SSV

SERVICE PARTS

PM400SSV

KEY NO.	PART NUMBER	DESCRIPTION	QTY.
1	SV08487-36	6-IN. ROUND ADAPTER / DAMPER	1
2	S99271702	CAPACITOR 17 μF	1
3	S97021510	BLOWER ASS'Y 400 CFM	1
4	S1108581	MAIN PCB	1
5	S98012198-808	FACEPLATE	1
6	S1108579	SOFT TOUCH 5-BUTTON CONTROL	1
7	S99271694	LED MODULE ASSEMBLY (PAIR)	1
8	S99010464	CHARCOAL FILTER WITH CLIPS (NOT SHOWN) (NON-DUCTED INSTALLATION ONLY, INCLUDED IN NON-DUCT KIT NO. HARKPM21)	1
9	S99010400	MICROMESH GREASE FILTER	1
10	S1104978	PARTS BAG INCLUDING: 4 NO. 8-18 X 1/4" METAL SCREWS, 4 NO. 8-32 X 1/4" MACHINE SCREWS, 8 NO. 8-15 X 5/8" PAN HEAD WOOD SCREWS, 4 NO. 6-18 X 5/8" TRUSS HEAD WOOD SCREWS.	1
11	SR740014	3¼" X 10" ADAPTER / DAMPER	1

PM600SSV

KEY NO.	PART NUMBER	DESCRIPTION	QTY.
1	SV08487-36	6-IN. ROUND ADAPTER / DAMPER	1
2	S99271379	CAPACITOR 25 μF	1
3	S97021509	BLOWER ASS'Y 600 CFM	1
4	S1108581	MAIN PCB	1
5	S98012198-812	FACEPLATE	1
6	S1108580	SOFT TOUCH 5-BUTTON CONTROL	1
7	S99271694	LED MODULE ASSEMBLY (PAIR)	1
8	S99010464	CHARCOAL FILTER WITH CLIPS (CLIPS NOT SHOWN) (NON-DUCTED INSTALLATION ONLY, INCLUDED IN NON-DUCT KIT NO. HARKPM21)	1
9	HPFBN1	HYBRID BAFFLE FILTER	1
10	S1104978	PARTS BAG INCLUDING: 4 NO. 8-18 X 1/4" METAL SCREWS, 4 NO. 8-32 X 1/4" MACHINE SCREWS, 8 NO. 8-15 X 5/8" PAN HEAD WOOD SCREWS, 4 NO. 6-18 X 5/8" TRUSS HEAD WOOD SCREWS.	1
11	SR740014	3¼" X 10" ADAPTER / DAMPER	1
12	SV24383-36	8-IN. ROUND ADAPTER / DAMPER	1
13	S1106565	SENSOR IR FOR AUTO-OPERATION (INCLUDING HARNESS) (NOT SHOWN)	1

To register your product, please visit our website:
In the United States - broan-nutone.com
In Canada - broan-nutone.ca

For Technical Support, call:
In the United States - 800-637-1453
In Canada - 800-567-3855

Safety

Installer: Leave this manual with the homeowner.

READ AND SAVE THESE INSTRUCTIONS

Intended for domestic cooking only!

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
• Do not use this unit with any separate solid-state speed control device.
• To reduce the risk of fire, use only metal ductwork.
• This unit must be grounded.
• When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
• When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

1. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the size of the surface element.
   TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*
5. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
6. NEVER PICK UP A FLAMING PAN - You may be burned.
7. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
8. Use an extinguisher ONLY if:
   1. You know you have a Class ABC extinguisher and you already know how to operate it.
   2. The fire is small and contained in the area where it started.
   3. The fire department is being called.
   4. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

• For indoor residential use only.
• To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
• Take care when using cleaning agents or detergents.
• Avoid using food products that produce flames under the Range Hood.
• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
• Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
• The bottom of the hood MUST NOT BE LESS than 24" and recommended at a maximum of 30" above the cooktop for best capture of cooking impurities.
• Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.
• Please read specification label on product for further information and requirements.

For ADA compliance installation guidelines, please type the model number into our website.

WWW.BROAN-NUTONE.COM

Documents / Resources

References

• Broan-NuTone | Better Air. Better Life.
• Broan-NuTone - Residential exhaust ventilation and air quality products
• App Store - Apple
• Google Play
• Broan-NuTone | Better Air. Better Life.
• Broan-NuTone - Residential exhaust ventilation and air quality products

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download NuTone PM400SSV, PM600SSV Manual
