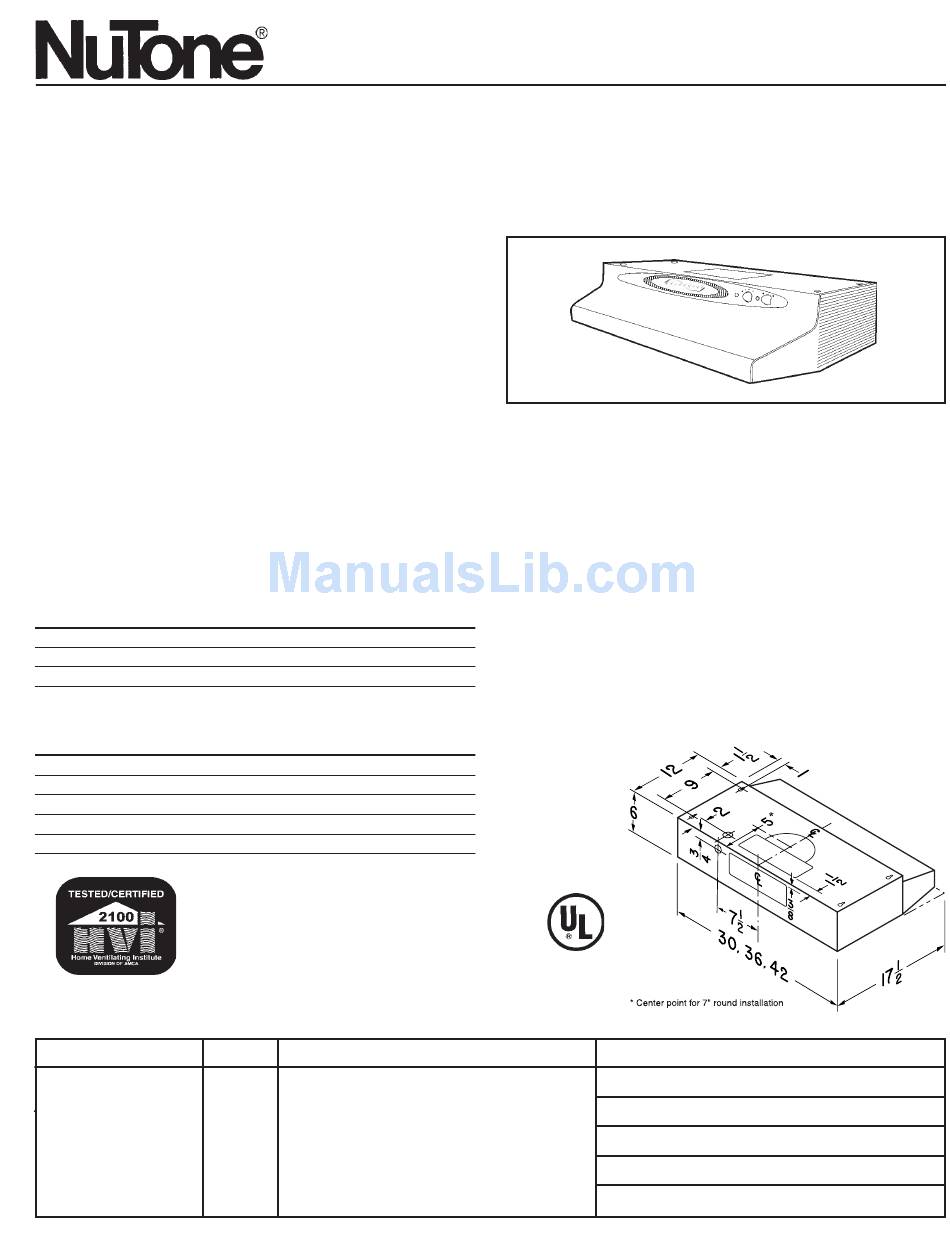

NuTone WA6500 Architectural & Engineering Specifications

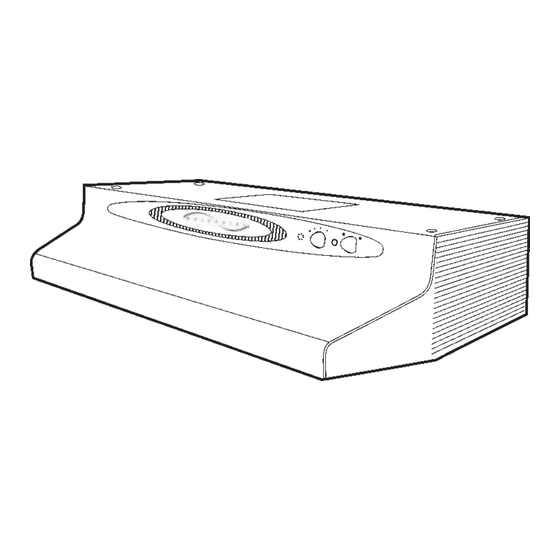

NuTone's WhispAire ™ range hood has a patented air chamber
design that significantly reduces noise up to 40 percent over
comparable, conventional hoods.

DESCRIPTION

• Three (3) ducting options:
- 3¼" x 10", horizontal or vertical discharge
- 7" round, vertical discharge
- Non-ducted, using WA65F filter (sold separately)
• Infinite, rotary speed control offers quiet fan operation
• Rotary light control
• Two, 40W, Type A-15 appliance bulbs provide bright cooktop
lighting (bulbs not included)
• Translucent, polymeric light lens - easily removed for relamping
• Convenient night-light
• Thermally-protected, plug-in motor
• Electronically-balanced, polymeric fan blade
• Washable, aluminum mesh grease filter
• Optional non-ducted filter (WA65F) for particulate and odor
removal
• Keyhole mounting slots for easy installation
• Available in 30", 36", or 42" widths
• Powder-coated, baked enamel finishes in White, Almond, Biscuit,
and Black, as well as Stainless Steel construction
• UL Listed

SPECIFICATIONS

VOLTS HZ. AMPS
120 60 1.7
120 60 1.7
120 60 1.7

MODEL NUMBERS

FINISH

30" WIDTH
White WA6530WW WA6536WW WA6542WW
Almond WA6530AA
Biscuit WA6530BC
Black WA6530BL
Stainless Steel WA6530SS
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed by
the Home Ventilating Institute, for off-the-shelf
products, as they are available to consumers.
Product performance is rated at 0.1 in. static pressure,
based on tests conducted in AMCA's state-of-the-art
test laboratory. Sones are a measure of humanly-
perceived loudness, based on laboratory
measurements.
NuTone, Inc., Madison and Red Bank Roads, Cincinnati, OH 45227 (1-800-543-8687)
REFERENCE
CFM SONES DUCT
170 4.5 3¼" x 10" (H)
200 4.5 3¼" x 10" (V)
220 4.5 7" Round (V)
36" WIDTH 42" WIDTH
WA6536AA WA6542AA
WA6536BC WA6542BC
WA6536BL WA6542BL
WA6536SS WA6542SS
QTY. REMARKS
Architectural & Engineering Specifications
Whispaire
Range Hood

INSTALLATION

Complete installation instructions are included with each Range
Hood
ARCHITECT'S SPECIFICATION
The Range Hood shall be a NuTone WA6500 Series. It will be 30",
(36"), (42") wide and have a White, (Almond), (Biscuit), (Black),
(Stainless Steel) finish.
The hood must be convertible between 3¼" x 10", 7" round, and
non-ducted discharges. It will use a washable aluminum grease
filter (ducted discharge) as well as a non-ducted, particle and odor
filter (non-ducted discharge).
The motor assembly shall have a thermally-protected, plug-in
motor, and a one-piece polymeric fan blade. Fan speed to be
controlled by an infinite rotary speed control.
Cooktop lighting to be provided by two (2) 40W, A-15 type
appliance bulbs. Bulbs will be operated using a rotary control with
n i g h t - l i g h t
feature.
Hood to be
UL listed.
Project
Location
Architect
Engineer
Contractor
Submitted by
March 2001
TM
Date
99043060A
