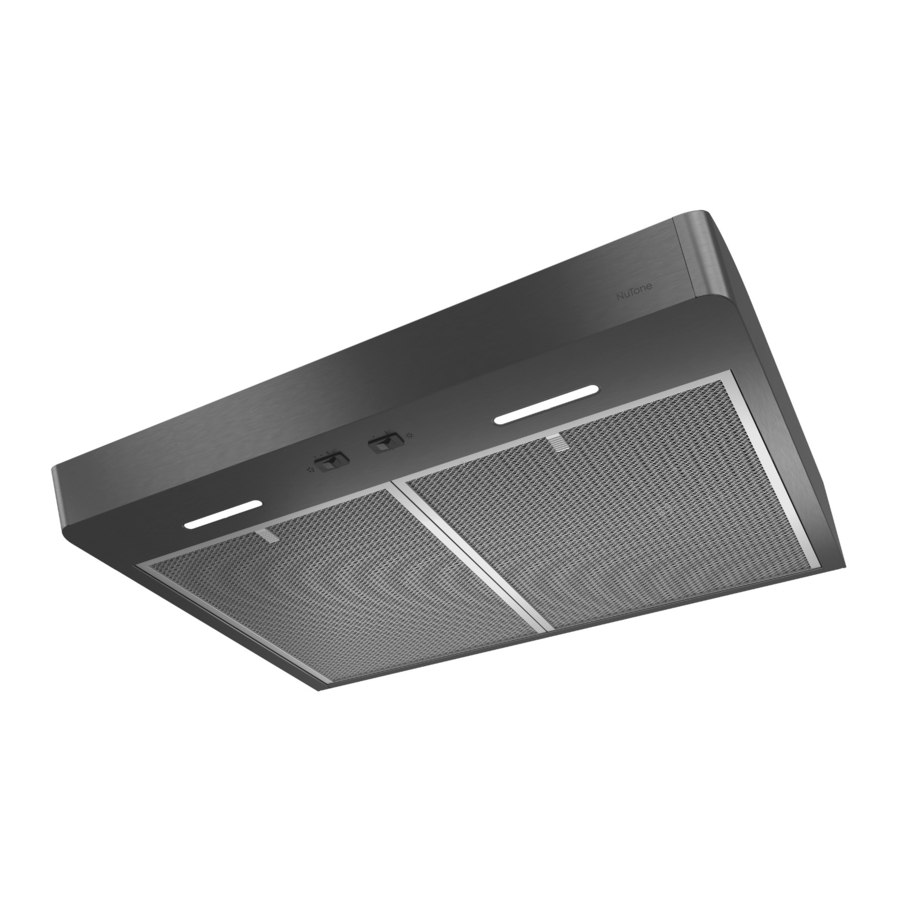

NuTone AVSF1 / AVDF1 / AVSF1-2 Series Manual

Operation

Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and fresher.
The LED modules included with this hood are the latest in LED cooktop illumination technology specially designed to operate in the elevated temperatures of cooking - offering bright lighting and lasting up to 25 times as long as a standard bulb and greater reliability than typical replacement LED bulbs. Operate the hood as follows:

AVSF1 AND AVSF1-2 SERIES

BLOWER SWITCH
I Turns blower on to LOW speed.
Turns blower OFF.
II Turns blower on to HIGH speed.

LIGHT SWITCH
I Turns light ON.
Turns light OFF.

AVDF1 SERIES


BLOWER BUTTON

When blower is OFF, press this button to turn ON the blower at the last saved speed. If there was no speed saved, the blower will be set on LOW speed.
NOTE: When LOW speed is activated from OFF, the blower starts on MEDIUM speed for a very short lapse of time, and then resume to LOW speed.
To change the blower speed, press on this button again until the desired speed is reached (from LOW to MEDIUM to HIGH speed to OFF). Each time a blower speed is activated, a beep is heard and LED indicators light up to show the corresponding speed chosen (lower LED for LOW speed, lower and center LEDs for MEDIUM speed and all LEDs for HIGH speed).
When blower is on (no matter the speed level), press and hold this button until the beep sound ends; this will turn off the blower and save this blower speed to memory.


LIGHT BUTTON

When lights are OFF, press once on this button to turn ON the lights at the last saved setting. If there was no light setting saved, the lights will be set on LOW intensity. Press another time to set the lights on HIGH intensity. Pressing another time after the HIGH setting will turn OFF the lights. Each time the lights are turned ON, a beep is heard and LED indicators light up to show the corresponding intensity chosen (lower LED for LOW and both LEDs for HIGH).
When lights are on (no matter the lighting level), press and hold this button until the beep sound ends; this will turn off the lights and save the chosen light intensity.

FILTER CLEANING REMINDER
When it is time to clean the hood and filters (refer to Cleaning and Maintenance), the 3 blower button LED indicators will flash slowly for 30 seconds after turning the blower OFF. This will happen every time the blower is turned OFF until the filter cleaning reminder has been reset. Once the cleaning is done, reset the filter cleaning reminder indicators by pressing on blower button for 3 seconds during the 30 seconds the 3 blower button LED indicators flash slowly.

Cleaning and Maintenance

Proper maintenance of the Range Hood will assure proper performance of the unit.

MOTOR
The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The fan blade should also be replaced.

GREASE FILTERS
The grease filters should be cleaned frequently. Use a warm dishwashing detergent solution.
Grease filters are dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filters may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. To minimize or prevent discoloration, hand wash filters using a mild detergent.

NON-DUCTED RECIRCULATION FILTERS
The non-ducted recirculation filters should be changed every 3 to 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking. Refer to installation instructions included with non-ducted recirculation filters.

FAN BLADE
The fan blade should be cleaned frequently. Use a clean cloth soaked with warm detergent solution.

STAINLESS STEEL CLEANING
Do:

  • Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
  • Always clean in the direction of original polish lines.
  • Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
  • You may also use a specialized household stainless steel cleaner.

Don't:

  • Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
  • Use any harsh or abrasive cleansers.
  • Allow dirt to accumulate.
  • Let plaster dust or any other construction residues reach the hood. During construction/ renovation, cover the range hood to make sure no dust sticks to the stainless steel surface.
    Avoid when choosing a detergent:
  • Any cleaners that contain bleach will attack stainless steel.
  • Any products containing: chloride, fl uoride, iodide, bromide will deteriorate surfaces rapidly.
  • Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:
Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use rough abrasive cleaner or porcelain cleaner.)

Installation

For ADA compliance installation guidelines, please type the model number into our website.
Recommended Tools and Accessories for Installation

  • Measuring tape
  • Phillips screwdriver no. 2
  • Flat blade screwdriver (to open knockout holes)
  • Drill, 1/8" drill bit and 1½" hole saw (to mark holes for ducting and cut electrical access hole)
  • 7/64" drill bit (to drill holes for EZ1 brackets mounting screws)
  • Wood shims (2) and wood screws (4) (required for standard installation to framed cabinet)
  • Saw (to cut holes for ducted application)
  • Sheet metal shears (ducted installation only, for duct adjustment)
  • Pliers (ducted installation only, for duct adjustment)
  • Metal foil duct tape (for ducted applications)
  • Scissors (to cut metal foil duct tape)
  • Pencil
  • Wire stripper
  • Strain relief, 1/2" diameter (to secure house wiring cable to the hood)
  • BP87Q Damper (needed if 7-in. round duct is used)

Install Ductwork (Ducted Installations Only)
Install Ductwork
NOTE: Distances over 24" are at the installer and user discretion.

  1. Determine whether hood will discharge vertically (3¼" x 10" or 7" round), or horizontally (3¼" x 10" only).
  2. Decide where the ductwork will run between the hood and the outdoors.
  3. Choose a straight, short duct run to allow the hood to perform most efficiently. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as few of them as possible. When possible, use at least 2-foot straight runs before any turns. Larger ductwork may be required for best performance with longer duct runs.
    NOTE: To use 6" round ducting, install a 3¼" x 10" to 6" round transition (not included). The performances may be affected.
  4. Install wall cap or roof cap (sold separately); ensure there is no leak in house insulation. Connect metal ductwork to cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

Contents
Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Make sure that the following items are included:

AVDF1 and AVSF1-2 Series

AVSF1 Series

Prepare the Hood
NOTE: Since this manual covers many range hood models, some details in the following illustrations may sligthly differ from your unit.

  1. If present, remove all protective polyfilm from the hood and/or parts.
  2. Using the finger cup (AVDF1, AVSF1-2 Series) or the tab (AVSF1 Series), remove the grease filters from the hood by pushing down and tilting filters out .
    Prepare the Hood - Step 1
  3. Remove the EZ1 brackets from inside the hood by cutting off the tie wrap. Remove both screws holding damper assembly to hood. Remove parts bag (captured behind the damper assembly). Remove damper assembly from inside the hood and keep the screws for further use.
    Prepare the Hood - Step 2
  4. Remove the wiring cover (shaded part on illustration below) by sliding it out from the hood and set it aside.
  5. Remove 7" Round Duct Plate from top/back of hood (see illustration below). Keep the screws for further use.
  6. Remove Electrical Power Cable Knockout from top (vertical exhaust) or back (horizontal exhaust) of hood. Install an appropriate strain relief, 1/2" diameter (not included).
    Prepare the Hood - Step 4
NON-DUCTED INSTALLATION ONLY
  1. Remove 3 screws retaining the recirculation cover plate (shaded part in illustration below) to the hood. Discard this plate with its screws.
    Prepare the Hood - Step 5
DUCTED INSTALLATION ONLY
  1. Remove 3¼" x 10" vertical, 3¼" x 10" horizontal, or 7-inch round knockout plate as appropriate for your ducting method (see FIGURES 1 A and 1 B).

  2. Attach 3¼" x 10" Damper Assembly on top OR back of hood (if using 3¼" x 10" duct; shaded part in FIGURE 2 A below) or 7" Round Duct Plate (if using 7-inch round duct, FIGURE 3) over the knockout opening. When installed, the 3¼" x 10" damper assembly must open as shown in FIGURE 2 B.


NOTE: To accommodate off-center ductwork, the 7" round duct plate can be installed up to 1/2" on either side of the hood center.

TIP: Insert a small length of duct over the 3¼" x 10" damper assembly (for rectangular ducting) or 7" round (for round ducting) and seal the joint using aluminum foil duct tape to ease connection with the house ductwork.

Prepare the Hood Location
NOTE: Before starting installation, read all the steps of these instructions.
Prepare the Hood Location
Use the illustration below to identify your kitchen cabinet type.
This manual covers 2 kinds of installation: the standard (without EZ1 brackets) and the EZ1 one-person installation system (using included template and brackets).

EZ1 one-person installation system
EZ1 installation is designed for use with kitchen cabinets that have the same width designation as the range hood width. If the cabinet is greater than 1/2" wider than the range hood width, please use the standard installation method.

  1. Use the proper template for vertical OR horizontal disharge (included) for placement of ductwork and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring. If replacing a hood and plan to use the existing duct and electrical, steps 2 to 5 may not be necessary. If so, skip to step 6.
  2. Measure and mark the hood center line on cabinet bottom.
  3. Align the center line on template with the hood center line marked on the bottom of the cabinet, placing the edge (where indicated) of the template against back wall. When using with framed cabinet for vertical exhaust installation, fold over rear edge of template equal to the depth of the cabinet frame at the wall (use graduations on template, C locations on template). Tape the template in place.
    NOTE: When facing the installation, A and B (on template) must be at right.
     EZ1 one-person installation system
  4. Drill a 1/8" dia. pilot hole for house wiring, at A location on template.
  5. Use a sharp pencil or 1/8" drill bit to mark the locations for the appropriate duct access holes (16 locations for 7" round duct, or 4 corner locations for rectangular duct). Remove the template.
  6. Draw the border for the exhaust ducting by linking its marks (16 for round duct and 4 for rectangular duct), then cut the opening in the cabinet bottom (vertical exhaust) or in the wall (horizontal exhaust). Drill the house wiring hole by using a 1½" hole saw centered with the pilot hole previously made in 4.
  7. Install the proper installation brackets according to the type of cabinet (framed or frameless). See below.

FRAMED CABINET
FRAMED CABINET

Refer to the marking on the brackets to determine the correct installation side and orientation.

  1. Mate the corresponding bracket to the cabinet side frame, while placing rear end of bracket against the wall. Use a pencil to mark 3 holes (there are 6 holes but only 3 are necessary).
  2. Remove the bracket. Using a 7/64" drill bit, drill 3 holes where marked.
  3. Assemble the bracket to the side frame using a Phillips screwdriver and 3 provided no. 8 x 5/8" wood screws. Repeat for the other side frame.

FRAMELESS CABINET
FRAMELESS CABINET
Refer to the marking on brackets to determine the correct installation side and orientation.

  1. Align the corresponding bracket to the cabinet side, while placing rear end of bracket against the wall. Draw a line on the outer edge of the bracket (as shown).
  2. Slide the bracket towards the center of cabinet and align the outside edge of the bracket with the marked line, keeping the rear end edge leaning on the wall.
  3. Use a pencil to mark 3 holes.
  4. Remove the bracket. Using a 7/64" drill bit, drill 3 holes where marked.
  5. Assemble the bracket to the cabinet bottom using a Phillips screwdriver and 3 provided countersunk wood screws. Repeat for the other cabinet side.

Install the Hood (EZ1 Bracket)
NOTE: The following procedure applies to both framed or frameless cabinet installations.

  1. Run house power cable between service panel and hood location.
  2. There are 2 pairs of recessed holes on each side of the top of the hood (on rear: A and B, on front C and D on illustration below); these holes allow the range hood to hang on the brackets (previously installed).
    Install the Hood (EZ1 Bracket)

HORIZONTAL EXHAUST INSTALLATION ONLY

  1. Temporarily hang the hood on the brackets using its 2 recessed REAR HOLES (A and B). While holding the hood, run the house power cable into the hood through the strain relief previously installed in step 6.
    HORIZONTAL EXHAUST INSTALLATION ONLY - Step 1
  2. Unhook the rear holes from the brackets and hang the hood using its 2 recessed FRONT HOLES (C and D). While holding the hood, attach the power cable to the hood using the strain relief.

VERTICAL EXHAUST INSTALLATION AND NON-DUCTED INSTALLATION ONLY

  1. Hang the hood on the brackets using the 2 recessed FRONT HOLES (C and D). While holding the hood, run the house power cable into the hood through the strain relief previously installed in step 6. Attach power cable to the hood.

DUCTED INSTALLATION ONLY

  1. Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.
  1. For framed cabinet, secure the hood to the EZ1 brackets using 4 no. 8-18 x 1/2" metal screws (included in parts bag). Insert 2 screws per side, in the slots (as shown in insets on illustration below).
  2. For frameless cabinet, secure the hood to the cabinet using 4 no. 8 x 5/8" round head wood screws (included in parts bag). Insert 2 screws in the slots (as shown in insets on illustration below).
    HORIZONTAL EXHAUST INSTALLATION ONLY - Step 2

Standard Installation (without EZ1 brackets)

  1. Use the proper diagram below for placement of ductwork and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring.
    Standard Installation (without EZ1 brackets)
  2. Install part-way four (4) ROUND HEAD no. 8 x 5/8" mounting screws into shims/cabinet, according to the proper diagram above. (Mounting screws are included in parts bag, but wood shims and shim mounting screws are not included).

Install the Hood (Standard Installation)

  1. Run house power cable between service panel and hood location. Run the house power cable into the hood through the strain relief previously installed in step 6.
  2. Hang hood from (4) mounting screws previously installed. Slide hood back towards wall until mounting screw heads are engaged in narrow end of keyhole slots in top of hood. Tighten screws securely. Attach power cable to the hood using the strain relief.
    Install the Hood (Standard Installation)

DUCTED INSTALLATION ONLY

  1. Connect ductwork to hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

Connect the Wiring

Risk of electric shock. Electrical wiring must be done by qualifi ed personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

  1. Connect House Power Cable to range hood wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.
    Connect the Wiring - Part 1
  2. Reinstall wiring cover and attach it to the hood using its retaining screw.
    Connect the Wiring - Part 2


Ensure both tabs on inner top of hood are engaged in their corresponding slots in wiring cover. Also, take care not to pinch wires while reinstalling wiring cover.

Install the Filters
Ducted Installation Only:
Re-install grease filters removed in step 2 under "Prepare the Hood".

Non-ducted Installation Only:
Purchase two non-ducted filters from your local distributor or retailer (see product specification label for filter type). Attach the non-ducted filters following instructions packed with the non-ducted filters.

Wiring Diagrams

AVSF1 AND AVSF1-2 SERIES
Wiring Diagrams - Part 1

AVDF1 SERIES
Wiring Diagrams - Part 2

Service Parts

AVSF1 SERIES (30 IN . WIDTH )
Service Parts - Part 1

KEY NO. PART NO. DESCRIPTION QUANTITY
30"
WHITE
30"
STAINLESS
30" BLACK 30" BLACK STAINLESS
1 S97020029 RECIRCULATION COVER PLATE, BLACK (INCLUDING SCREWS) 1
S97020030 RECIRCULATION COVER PLATE, WHITE (INCLUDING SCREWS) 1
S97020031 RECIRCULATION COVER PLATE, STAINLESS STEEL (INCL. SCREWS) 1
S98011873 RECIRCULATION COVER PLATE, BLACK STAINLESS (INCL. SCREWS) 1
2 SR680508 7'' ROUND DUCT PLATE (INCLUDING SCREWS) 1 1 1 1
3 S97020534 3¼" X 10" DAMPER ASSEMBLY (INCLUDING SCREWS) 1 1 1 1
4 S97020409 BLOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR) 1 1 1 1
5 S97020407 FANPELLER (INCLUDING ITEM 6) 1 1 1 1
6 SR99420635 CLIP FOR FANPELLER 1 1 1 1
7 S99010430-002 GREASE FILTER - OPEN MESH -TYPE C1 (SET OF 2) 1 1 1 1
8 S99030377 ROCKER SWITCHES, WHITE (SET OF 2) 1
S99030376 ROCKER SWITCHES, BLACK (SET OF 2) 1 1
S99030375 ROCKER SWITCHES, GREY (SET OF 2) 1
9 S97020444 LED MODULE (PAIR) 1 1 1 1
10 S97020447 DRIVER FOR LED (WITH SCREWS) 1 1 1 1
* S97020449 WIRE HARNESS 1 1 1 1
* S98011637 WIRING COVER 1 1 1 1
* S97020360

PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2",

ROUND HEAD NO. 8 X 5/8" WOOD SCREWS,

NO. 8 X 1/2" COUNTERSUNK WOOD SCREWS

1 1 1 1
* S97020466

NON-DUCTED FILTER - TYPE XC (SET OF 2)

(NON-DUCTED INSTALLATION ONLY)

1 1 1 1
* S99527587 NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS) 1 1 1 1
* S97020470 EASY INSTALL KIT (INCLUDING HARDWARE) 1 1 1 1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement parts and repairs.

AVSF1 SERIES (36 IN . WIDTH )
Service Parts - Part 2

KEY NO. PART NO. DESCRIPTION QUANTITY
36" WHITE 36" STAINLESS 36" BLACK 36" BLACK STAINLESS
1 S97020029 RECIRCULATION COVER PLATE, BLACK (INCLUDING SCREWS) 1
S97020030 RECIRCULATION COVER PLATE, WHITE (INCLUDING SCREWS) 1
S97020031 RECIRCULATION COVER PLATE, STAINLESS STEEL (INCL. SCREWS) 1
S98011873 RECIRCULATION COVER PLATE, BLACK STAINLESS (INCL. SCREWS) 1
2 SR680508 7'' ROUND DUCT PLATE (INCLUDING SCREWS) 1 1 1 1
3 S97020534 3¼" X 10" DAMPER ASSEMBLY (INCLUDING SCREWS) 1 1 1 1
4 S97020409 BLOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR) 1 1 1 1
5 S97020407 FANPELLER (INCLUDING ITEM 6) 1 1 1 1
6 SR99420635 CLIP FOR FANPELLER 1 1 1 1
7 S99010430-003 GREASE FILTER - OPEN MESH -TYPE D1 (SET OF 2) 1 1 1 1
8 S99030377 ROCKER SWITCHES, WHITE (SET OF 2) 1
S99030376 ROCKER SWITCHES, BLACK (SET OF 2) 1 1
S99030375 ROCKER SWITCHES, GREY (SET OF 2) 1
9 S97020444 LED MODULE (PAIR) 1 1 1 1
10 S97020447 DRIVER FOR LED (WITH SCREWS) 1 1 1 1
* S97020449 WIRE HARNESS 1 1 1 1
* S98011637 WIRING COVER 1 1 1 1
* S97020360

PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2",

ROUND HEAD NO. 8 X 5/8" WOOD SCREWS,

NO. 8 X 1/2" COUNTERSUNK WOOD SCREWS

1 1 1 1
* S97020467

NON-DUCTED FILTER - TYPE XD (SET OF 2)

(NON-DUCTED INSTALLATION ONLY)

1 1 1 1
* S99527587 NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS) 1 1 1 1
* S97020470 EASY INSTALL KIT (INCLUDING HARDWARE) 1 1 1 1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement parts and repairs.

AVDF1 SERIES
Service Parts - Part 3

KEY NO. PART NO. DESCRIPTION QUANTITY
30" STAINLESS
1 S97020031 RECIRCULATION COVER PLATE, STAINLESS STEEL (INCL. SCREWS) 1
2 SR680508 7'' ROUND DUCT PLATE (INCLUDING SCREWS) 1
3 S97020534 3¼" X 10" DAMPER ASSEMBLY (INCLUDING SCREWS) 1
4 S97020409 BLOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR) 1
5 S97020407 FANPELLER (INCLUDING ITEM 6) 1
6 SR99420635 CLIP FOR FANPELLER 1
7 S99010434-002 GREASE FILTER - MICRO MESH - TYPE C2 (SET OF 2) 1
8 S97020431 CAPTOUCH CONTROL LED, STAINLESS (WITH SCREWS) 1
9 S97020444 LED MODULE (PAIR) 1
10 S97020445 TRANSFORMER 24 V 18 VA (WITH SCREWS) 1
* S97020452 WIRE HARNESS 1
* S98011637 WIRING COVER 1
* S97020360 PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2",
ROUND HEAD NO. 8 X 5/8" WOOD SCREWS,
NO. 8 X 1/2" COUNTERSUNK SCREWS
1
* S97020466 NON-DUCTED FILTER - TYPE XC (SET OF 2)
(NON-DUCTED INSTALLATION ONLY)
1
* S99527587 NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS) 1
* S97020470 EASY INSTALL KIT (INCLUDING HARDWARE) 1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement parts and repairs.

AVSF1-2 SERIES
Service Parts - Part 4

KEY NO. PART NO. DESCRIPTION QUANTITY
30" STAINLESS 30" BLACK STAINLESS
1 S97020031 RECIRCULATION COVER PLATE, STAINLESS STEEL (INCL. SCREWS) 1
S98011873 RECIRCULATION COVER PLATE, BLACK STAINLESS (INCL. SCREWS) 1
2 SR680508 7'' ROUND DUCT PLATE (INCLUDING SCREWS) 1 1
3 S97020534 3¼" X 10" DAMPER ASSEMBLY (INCLUDING SCREWS) 1 1
4 S97020409 BLOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR) 1 1
5 S97020407 FANPELLER (INCLUDING ITEM 6) 1 1
6 SR99420635 CLIP FOR FANPELLER 1 1
7 S99010434-002 GREASE FILTER - MICRO MESH - TYPE C2 (SET OF 2) 1 1
8 S99030376 ROCKER SWITCHES, BLACK (SET OF 2) 1
S99030375 ROCKER SWITCHES, GREY (SET OF 2) 1
9 S97020444 LED MODULE (PAIR) 1 1
10 S97020447 DRIVER FOR LED (WITH SCREWS) 1 1
* S97020449 WIRE HARNESS 1 1
* S98011637 WIRING COVER 1 1
* S97020360 PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2",
ROUND HEAD NO. 8 X 5/8" WOOD SCREWS,
NO. 8 X 1/2" COUNTERSUNK WOOD SCREWS
1 1
* S97020466 NON-DUCTED FILTER - TYPE XC (SET OF 2)
(NON-DUCTED INSTALLATION ONLY)
1 1
* S99527587 NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS) 1 1
* S97020470 EASY INSTALL KIT (INCLUDING HARDWARE) 1 1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Venmar Ventilation ULC genuine replacement parts only. Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Venmar Ventilation ULC recommends to contact a certified service depot for all replacement parts and repairs.

Safety

READ AND SAVE THESE INSTRUCTIONS
warning Intended for domestic cooking onlywarning
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
In U.S.A., register your range hood online at www.broan-nutone.com
In Canada, register your range hood online at www.nutone.ca


shock hazardTO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
  • Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
  • Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
  • Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
  • Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
  • When cutting or drilling into wall or ceiling, do notdamage electrical wiring and other hidden utilities.
  • Ducted fans must always be vented to the outdoors.
  • Do not use this unit with any additional solid-state speed control device.
  • To reduce the risk of fire, use only metal ductwork.
  • This unit must be grounded.
  • As an alternative, this product may be installed with the UL-approved cord kit designated for the product, following instructions packed with the cord kit.
  • When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.



shock hazardTO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

  1. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  2. Always turn hood ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  3. Clean ventilating fan frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts.
  4. Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

  1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
  2. NEVER PICK UP A FLAMING PAN — You may be burned.
  3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
  4. Use an extinguisher ONLY if:
    1. You own a Class ABC extinguisher and you know how to operate it.
    2. The fire is small and contained in the area where it started.
    3. The fire department has been called.
    4. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

  • For indoor use only.
  • For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
  • To avoid motor bearing damage and noisy and/or unbalanced fan blade, keep drywall spray, construction dust, etc. off range hood.
  • Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
  • For best capture of cooking fumes, the bottom of the hood MUST NOT BE LESS than 18" and at a maximum of 24" above the cooking surface.
  • Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.
  • To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
  • When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
  • Please read specification label on product for further information and requirements.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download NuTone AVSF1 / AVDF1 / AVSF1-2 Series Manual

Advertisement

Need help?

Need help?

Do you have a question about the AVSF1 Series and is the answer not in the manual?

Questions and answers

Table of Contents
