NuTone PIK33 Specifications

You'd never know it's a range hood. Hidden behind the façade of your cabinetry or
other design elements, this hood works quietly and never takes the credit it is due.
Model Width Blower
. . 33-3/4",.. INT. .
u
. PIK. 45-3/4". EXT. .
u
. . . .
(see.page.52)
. . INT. u .
PIK33D. 33-3/4"
. . . EXT. u .
. . . .
(see.page.52)
.Blower.purchased.separately.
u
430.stainless.steel.finish.is.not.recommended.for.installations.along.saltwater.coastal.areas.
CFM Finish
460,.850..
4.In-line.. 430.Brushed.Stainless
4.Exterior
850.(P8D).
316.Brushed.Stainless
1200,.1500.
B U I L T - I N C O L L E C T I O N
.......33".model.
....&.45".model
diagram.shown
For installation guidelines and product details see pages 54 – 58.

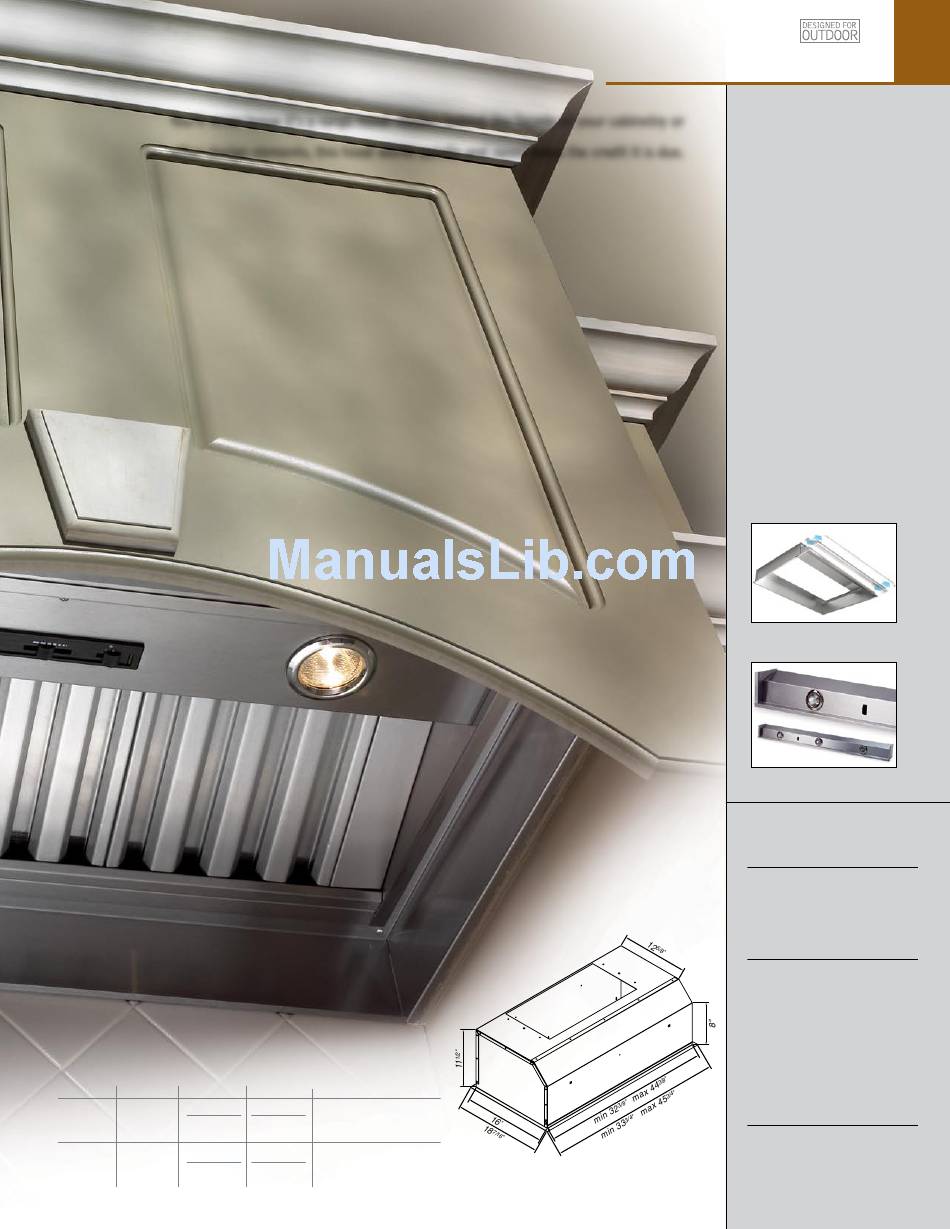

PIK Pro-Style
Insert
Elegant, easy-to-clean brushed
stainless finish is completed with
professional-style baffle filters
Outdoor-rated version PIK33D
available for covered patios and
lanai areas
Powerful yet quiet internal and
external blowers with HVI
certified performance (see p. 52)
To protect cabinetry, use with
®
optional Best by Broan custom
hood liners (see p. 51)
Bright, flush-mount halogen
lighting (bulbs purchased
separately)
Variable-speed slide control, or
optional wall-mounted control
panel (see p. 51)
Heat Sentry is a smart feature
™
that detects excessive heat and
adjusts speed to high
automatically
Adjustable liners ensure a perfect fit
in custom enclosures. See page 51.
Optional lighting can be added to
Best ® by Broan liners. See page 51.
Blower & Liner Selection Guide

1. Select a Pro-Style Insert

PIK33.(33".wide),.PIK45.(45".wide)
Both.feature.an.18 7 " depth
⁄ 16
.
Outdoor PIK33D.
" depth
7
•.33".wide,.18
⁄16
.

2. Select a Liner

•.L3336S.36".width,.for PIK33
• L3342S.42".width, for PIK33
•.L4548S.48".width,.for PIK45
•.L4560S 60".width,.for PIK45
•.L3336D.36".width,.for PIK33D
•.L3348D 42".width,.for PIK33D
3. Select an Internal, In-Line or
Exterior Blower:
Internal:
P5.(460.CFM).or.P8.(850.CFM)
Exterior.(outside,.roof.or.wall):
EB6.(600.CFM),..EB9.(900.CFM)
EB12.(1200. . CFM),. . .EB15.(1500.CFM)
In-Line.(inside,.attic.or.other.space):
ILB3.(280.CFM), ILB6.(600.CFM)
ILB9.(800.CFM),..ILB11.(1100.CFM)

Blowers for PIK33D

Internal:
P8D.(850.CFM).
Exterior:
EB12.(1200.CFM),.EB15 (1500.CFM)
