Capetti Elettronica WineCap Lupo WSD02TH2-T1K User Manual

1. Description.
The WSD02TH2-T1K is a datalogger with 3 input channels to acquire indoor temperature, relative humidity and immersion or
surface temperature using a PT1000 input, with storage functionality of samples acquired.
2. Device preset and use mode.
a. Wireless Mode:
No setup operation is needed. Typically the system is configured from factory so the device is already associated to the system
basestation. The device is in STANDBY mode (
with the TEST command (
refer to
Otherwise, in case the device is in FACTORY RESET mode (
for connecting to an existing system, in order to associate it, make reference to the "
manual. Is necessary to use the "WineCapManager" software on the PC connected to the basestation that will be coupled with
the device.
b. USB Logger Mode:
For this operation mode, stand-alone with data downloads through USB, the connection with the PC and the "WineCapManager"
running on it is necessary in order to modify the device 's operation mode. The sampling interval must be set with the device in
"STAND-ALONE" (
refer to Stand-alone USB datalogger installation.
clock, in order to assure the temporal reference of the sample.
Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key.
(
refer to Stand-alone USB datalogger installation
available on the
WineCap System - User Manual R29
c. On field transition from USB to Wireless datalogger:
This transition is practicable in field, during the sampling period, using the wireless network association command. When the
association is done, the datalogger becomes a wireless datalogger and, besides sending new measures to the basestation, starts
a download process towards the same basestation of the measures acquired during the stand alone period (
).
Stand-alone datalogger status
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

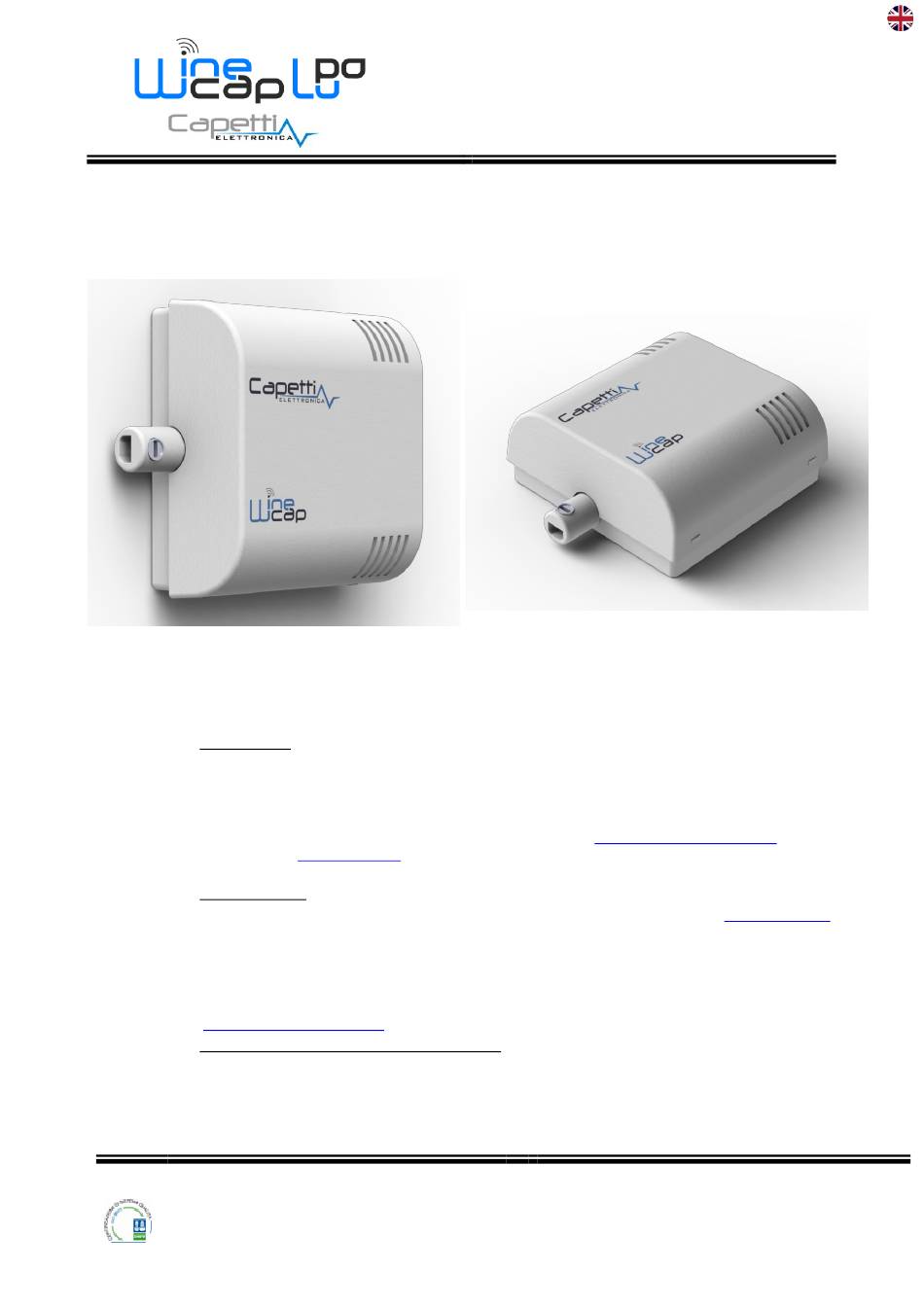

Picture 1 - Product Image
