Capetti Elettronica WSD00T User Manual

1. Description.

The WSD00T and the WSD00T_LD are dataloggers with one input channels to acquire indoor temperature, with storage
functionality of samples acquired.

2. Device preset and use mode.

a. Wireless Mode:
No setup operation is needed. Typically the system is configured from factory so the device is already associated to the system
basestation. The device is in STANDBY mode for which is necessary to start it with the TEST command (
.
).
Installation Procedure
Otherwise, in case the device is in FACTORY RESET mode, that means it's ready for connecting to an existing system, in order to
associate it, make reference to the "
software manual. Is necessary to use the "WineCapManager" software on the PC connected to the basestation that will be
coupled with the device.
b. USB Logger Mode:
For this operation mode, stand-alone with data downloads through USB, the connection with the PC and the
"WineCapManager" running on it is necessary in order to modify the device 's operation mode. The sampling interval must be
set with the device in "STAND-ALONE" mode and automatically, the device 's clock is aligned with the PC's clock, in order to
assure the temporal reference of the sample.
Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key.
(
refer chapter 6 - Stand-alone USB datalogger installation
cable are available on the
c. On field transition from USB to Wireless datalogger:
This transition is practicable in field, during the sampling period, using the wireless network association command. When the
association is done, the datalogger becomes a wireless datalogger and, besides sending new measures to the basestation,
starts a download process towards the same basestation of the measures acquired during the stand alone period.
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

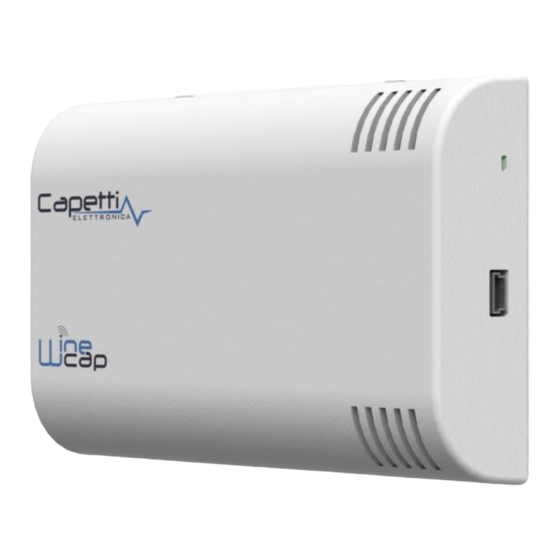

Picture 1 - Product Image
WineCap System - User Manual R28 - chapter 4.3.1 Probe/datalogger association procedure.
.
). More details on device 's connection/disconnection through the USB
WineCap System - User Manual R28
WSD00T / WSD00T_LD
User Manual
manual.
refer to chapter 5 -
"
WA0123E_WSD00T/WSD00T_LD_User Manual_R10
1/8
