MikroTik RouterBOARD Installation Manual

Installation

This is what your service setup will look like immediately after Telus completes their PureFiber Installation
Please follow this guide to fully complete the installation of your connectivity solution.

You will lose connectivity during this process. Please proceed ONLY when it is okay to do so.

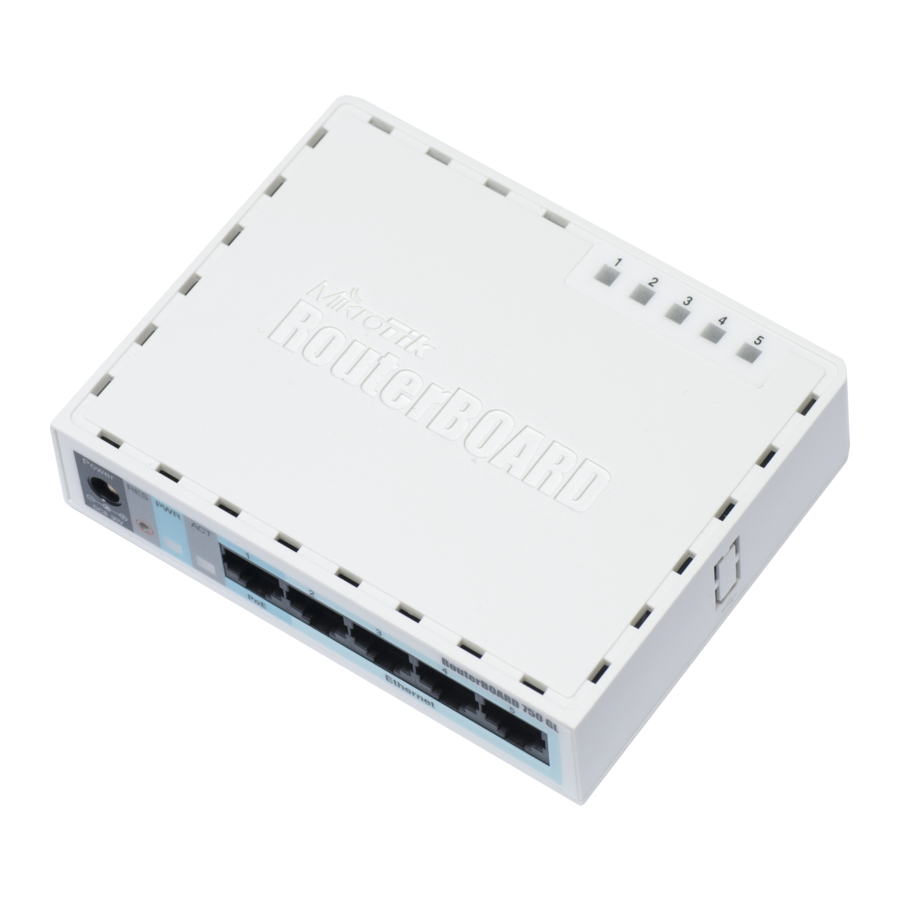

RouterBoard Management Router
(Sent to you by Skyway)
You will receive this RouterBoard management router from Skyway West. Please connect it (according to this guide) in order to complete your setup.
You may also receive other equipment from Skyway, depending on the specifics of your solution.

Don't forget to plug in!
All devices described within this guide must be plugged in to appropriate power outlets.
The diagrams herein do NOT show power cords in order to keep them simple and easy to understand.

1. Plug your ADSL Modem to the wall jack, if required

2. Unplug your Fiber ONT from your WiFi router
   An Optical Network Terminal (ONT) is the device that a fiber line terminates into, and converts optical data into ethernet-protocol data.


PureFiber Failover RouterBoard Port Diagram

Plug the Fiber ONT into port ONE (Internet/PoE port) of the Skyway RouterBoard.
Plug the ADSL or Cable modem into port TWO of the Skyway RouterBoard
Plug the Telus Actiontec WiFi router into port FOUR of the Skyway RouterBoard
Plug your network firewall into port FIVE of the Skyway RouterBoard

If you prefer to not use the Actiontec WiFi router, please inform provisioning@skywaywest.com
Call Skyway West Support if you need assistance: 604-482-1212
