RouterBOARD 1 100Hx2 a nd 1 100AHx2
Quick S etup G uide a nd W arranty I nformation

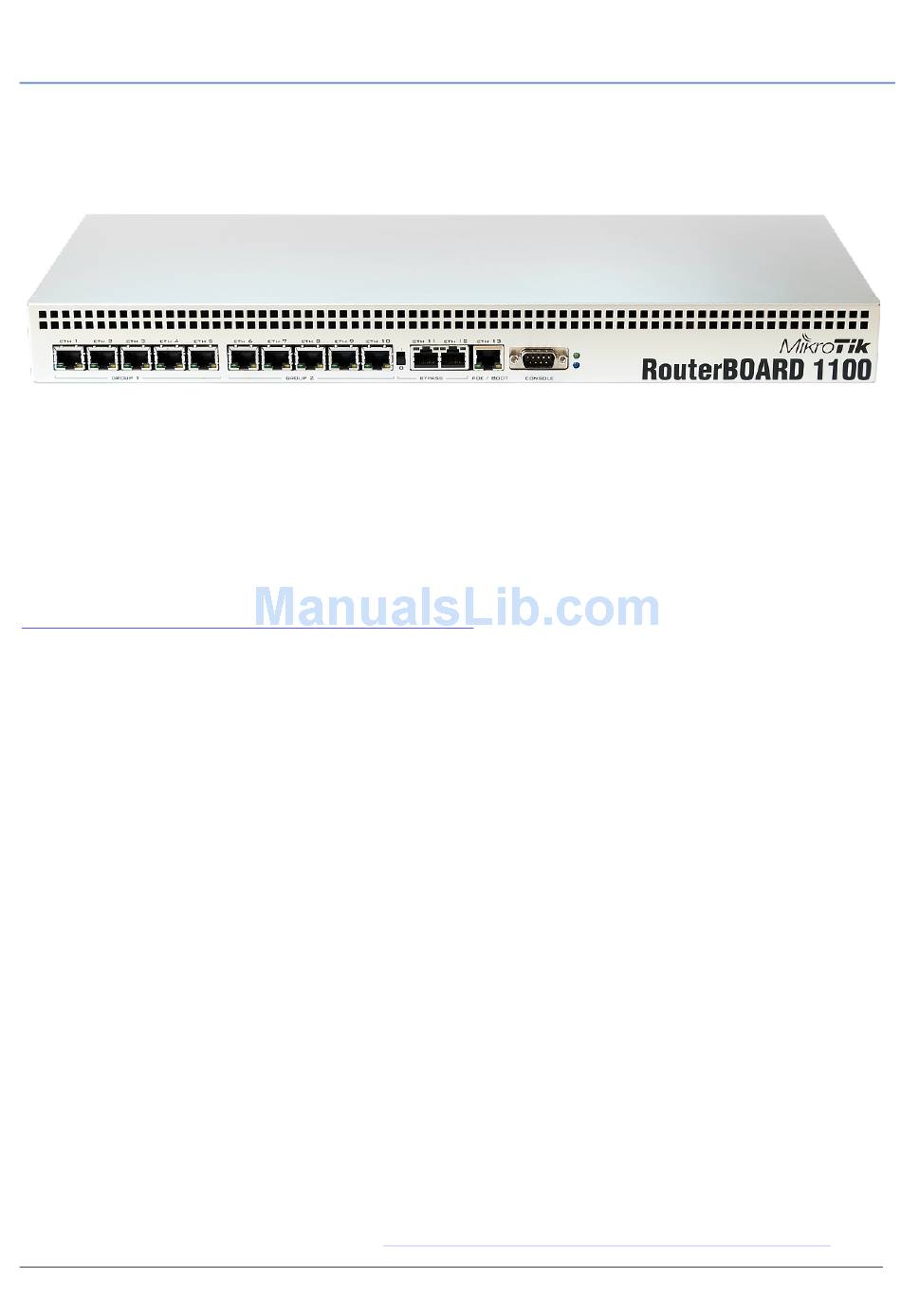

The R B1100 i s a r ackmount r outer w ith 1 3 G igabit E thernet p orts. T wo o f t he p orts p rovide b ypass f unctionality.
There a re t wo m odels, a d ual c ore 1 066MHz P PC p rocessor a nd 1 GB o f R AM ( RB1100Hx2), o r w ith a d ual c ore
1066MHz P PC p rocessor w ith h ardware e ncryption a nd 2 GB o f R AM ( RB1100AHx2).
First u se
The R B1100 d evice c omes p reinstalled w ith R outerOS a nd i s r eady t o u se. R B1100 i s c ompatible w ith R outerOS v 5
and n ewer, i f y our d evice c omes p reinstalled w ith a n e arlier v ersion, p lease u pgrade b efore u sing i t:
http://wiki.mikrotik.com/wiki/Manual:Upgrading_RouterOS
Optionally, y ou m ay o pen t he c ase a nd i nstall a m icroSD c ard i nto t he p rovided s lot, f or a dditional s torage
•
Connect e thernet c ables
•
Plug i n t he I EC C 13 p ower c able i nto t he b ack o f t he d evice t o p ower i t o n.
•
Powering
The b oard a ccepts p owering f rom t he p ower c onnector o n t he b ack o f t he c ase, o r 2 4V P oE o n E thernet p ort 1 3.
The d evice s upports 1 10-­‐220V a t t he b uilt i n P SU, a nd 1 2-­‐24V w hen p owering d irectly t o t he b oard a nd n ot u sing
the p rovided c ase/PSU.
Booting p rocess
First, R outerBOOT l oader i s s tarted. I t d isplays s ome u seful i nformation o n t he o nboard R S232C a synchronous s erial
port. T he s erial p ort i s s et b y d efault t o 1 15200bit/s, 8 d ata b its, 1 s top b it, n o p arity.
The R outerOS s ystem w ill t hen l oad. I t w ill b e a lso i ndicated b y t wo b eeps.
Note t hat t he d evice d oes n ot f ully i mplement t he h ardware ( RTS/CTS) f low c ontrol, s o i t i s s uggested t o t ry t o
disable h ardware f low c ontrol i n t he t erminal e mulation p rogram i n c ase t he s erial c onsole d oes n ot w ork a s
expected, a nd i f i t d oes n ot h elp, m ake a n ew c able u sing t he p in o ut g iven i n t he U ser's m anual.
The l oader m ay b e c onfigured t o b oot t he s ystem f rom t he o nboard N AND, a nd/or f rom n etwork. S ee t he
respective s ection o f U ser's m anual o n h ow t o c onfigure b ooting s equence a nd o ther B IOS p arameters. D HCP o r
BOOTP ( configurable i n l oader) p rotocols a llow t he R outerBOARD t o g et a n i nitial I P a ddress, a nd p rovide t he
address o f a T FTP s erver t o d ownload a n E LF b oot i mage f rom. I t i s e specially u seful f or s oftware i nstallation.
More i nformation o n c onnecting t o t he d evice:
See w ww.routerboard.com f or m ore i nformation. C ontact s upport@mikrotik.com
h ttp://wiki.mikrotik.com/wiki/Manual:First_time_startup
21/08/13
