SMART FOLDABLE STAIR CLIMBER
SF-S024035
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-S024035 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-S024035

Summary of Contents for Sunny Health & Fitness SF-S024035

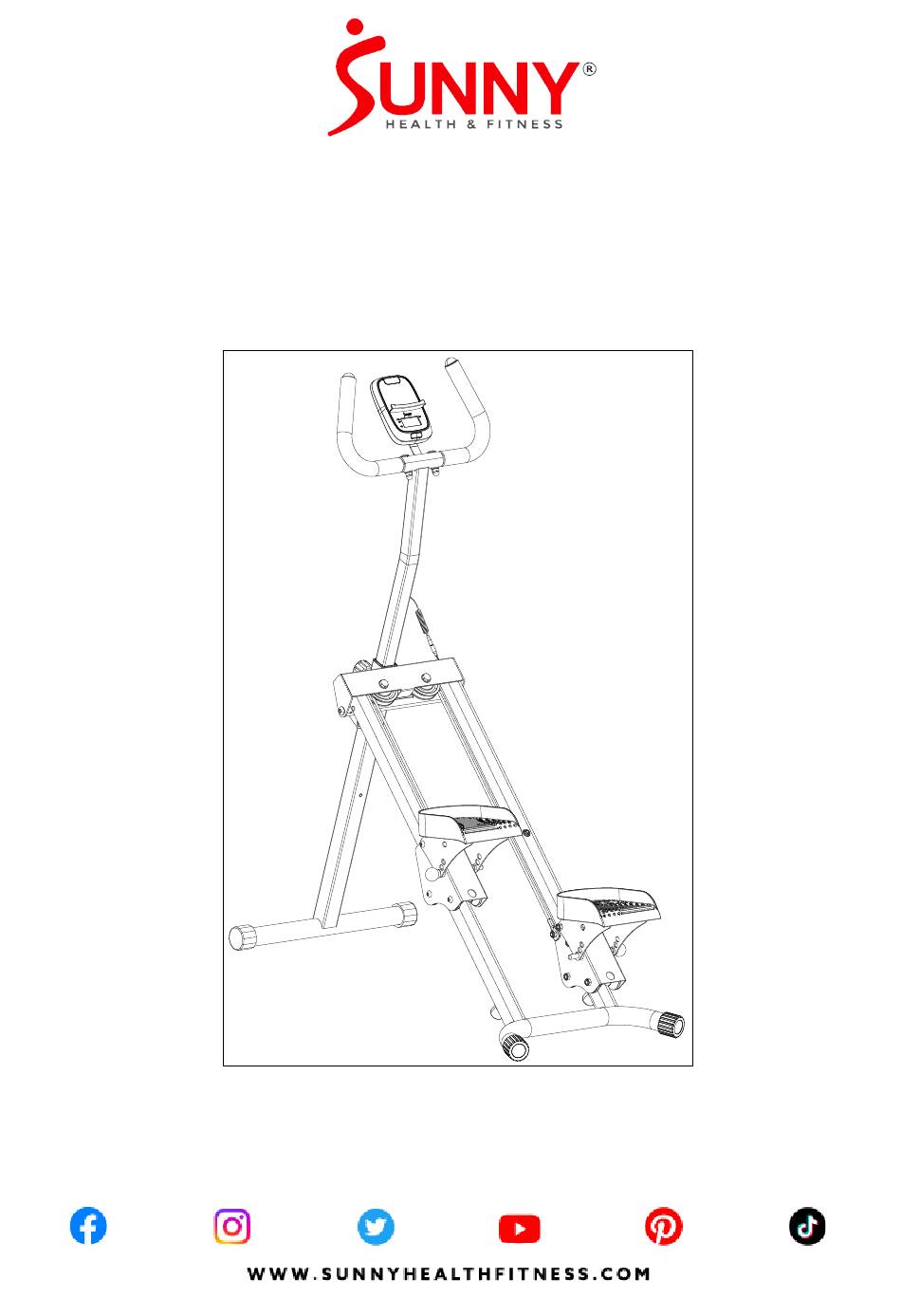

  • Page 1 SMART FOLDABLE STAIR CLIMBER SF-S024035 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. THANK FOR YOUR PURCHASE Description Spec. Qty. Description Spec. Qty. Front Support Tube Left Pedal Main Frame Right Pedal Handlebar Post Spanner S13-15-17 Handlebar Allen Wrench Φ38*L65*M16 Knob Thank You Card...
  • Page 4 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Please cut the nylon ties before assembly. Remove 2 Bolts (No. 17) from the Front Support Tube (No.
  • Page 5 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 3: #43 S13-15-17 Remove 2 Cross Head Bolts (No. 8), 2 Curved M8*40.5 2PCS Gaskets (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 5: Remove 4 Screws (No. 41) from the back of the M5*10 4PCS Computer (No. 22) by using Allen Wrench (No. 44).

  • Page 7: Adjusting The Handlebar

    ADJUSTMENT & USAGE GUIDE ADJUSTING THE HANDLEBAR Loosen the Knob (No. 15) and pull out. Raise or lower the Handlebar Post (No. 3) to desired height. Then reinsert and tighten the Knob (No. 15). ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stair climber is stabled and secured.

  • Page 8: Adjusting The Pedal

    ADJUSTING THE PEDAL To adjust the Left & Right Pedal (No. 25 & No. 31), remove the 2 Bal l Hea d Pins (No. 23 ) and rotate the Left & Right Pedal (No. 25 & No. 31) to desired position. Re-insert the 2 Ball Hea d Pins (No.

  • Page 9: Folding Instructions

    FOLDING INSTRUCTIONS A. Remove the Ball Head Pins (No. 23) from the Pedal Adjustment Plates (No. 7). Bring the Pedal Adjustment Plate (No. 7) and the Left Pedal (No. 25) closer to each other. Insert the Ball Head Pins (No. 23) into the storage hole on the Pedal Adjustment Plate (No.

  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION AND REPLACEMENT Battery Battery Cover BATTERY INSTALLATION: 1. Take out 2 AAA batteries from computer box. 2. Pull out the SUNNY insert (No. A), press the buckle of battery cover on the Computer (No. 22), then remove battery cover. 3.

  • Page 11: Exercise Computer

    EXERCISE COMPUTER BLUETOOTH 1. The Bluetooth icon will flash when the computer is on or wakes from sleep mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2. The Bluetooth icon will stay on when it is connected. WIRELESS HEART RATE 1.

  • Page 12: Technical Data

    OPERATION 1.POWER ON Installs 2 pieces of 1.5V AAA batteries. (Whenever batteries are removed, all the functions values will be reset to zero.) 2.1 WAKE UP After entering speed signal, each function will skip to display. STOP will be displayed once no speed signal detected for 10 seconds.

  • Page 13: App Connection

    APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in.

  • Page 14: Exploded Diagram

    EXPLODED DIAGRAM 37 38 40 37 20 38 40 37 20 24 24...

  • Page 15: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Φ10*115 Front Support Tube Ball Head Pin Main Frame Hexagon Bolt M8*20 Handlebar Post Left Pedal Handlebar Φ30*Φ25*27 Cushion Left Pedal Support Φ38*1.5 End Cap Right Pedal Support Φ16.5*6.7 Round Clasp Pedal Adjustment Plate Sensor Wire L=600 Φ5*940...
