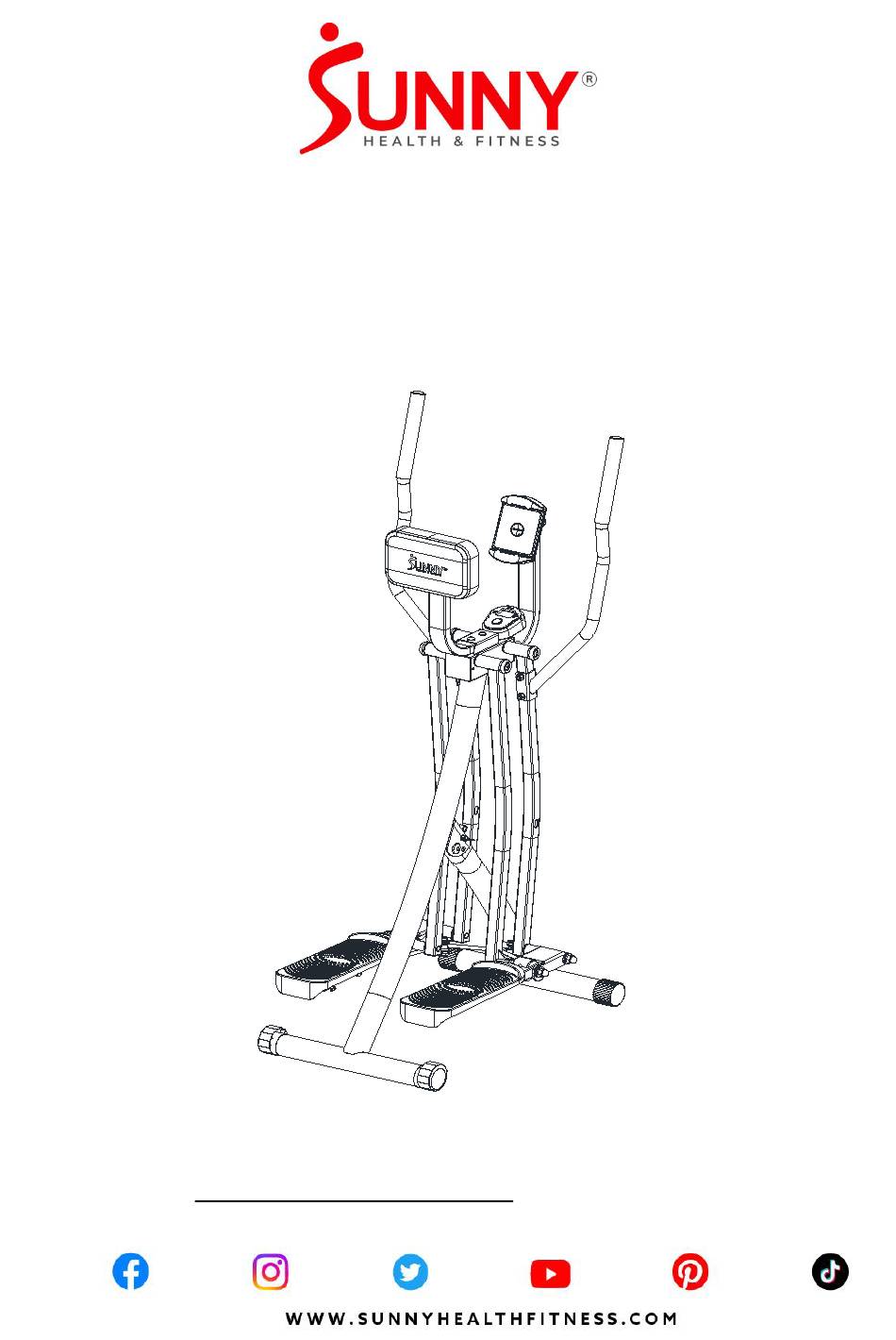

- Page 1 SMART AIR WALK TRAINER SF-E902 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Description Spec. Qty. No. Description Spec. Qty. Device Holder Main Frame Allen Key Left Handlebar S10-13-17 Wrench Right Handlebar Battery Support Tube Meter JJD2601 Thank You Card User Manual Resistance Band Device Holder Support Tube Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ... - Page 4 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Unfolding the Air Walker Trainer Pull out the large Ball Pin (No. 26), located half-way through the swing bars, to unlock the swing bars.
-
Page 5: Assembling The Handlebars
We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669). STEP 2: #16 M 8*16 2PCS Attaching the Support Tube #A S6 1PC Remove 2 Allen Screws (No. 16) From Support Tube (No. - Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669). STEP 4: #56 φ6.4*φ18*1.2 1PC #57 M6 1PC Assembling Device Holder #58 M8*16 2PCS Unscrew the Nut (No. 57) and Flat Washer (No. 56) #A S6 1PC on the Device Holder (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669). STEP 6: Attaching the Resistance Band Attach one side of the Resistance Band (No. 50) on the hook under the Left Pedal Tube (No.
-
Page 8: Folding Instructions
FOLDING INSTRUCTIONS 1. Take out the Ball Pin (No. 43) from the Main Frame (No. 1). Hold the Device Holder Support Tube (No. 51), then move the Connecting Tube (No. 45) toward the Main Frame (No. 1) as pictured. NOTE: When Connecting Tube (No. 45) moved, the Right Front Tube (No. 23), Right Rear Tube (No. - Page 9 EXERCISE METER KEY FUNCTION: MODE/SELECT: To select the function you want. Hold the key for 3 seconds to reset CNT TIME CAL values. AUTO ON/OFF: The monitor will be turned on automatically when exercise starts or the key pressed. The monitor will be automatically turned off after 4 minutes of inactivity.
-
Page 10: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT Batteries Battery Cover BATTERY INSTALLATION: 1. Press the buckle of the battery cover on the back of the Meter (No. 17) to remove battery cover. 2. Install 2 AA batteries into the battery case on the back of the Meter (No. 17). Pay attention to the battery + and –... -
Page 11: Balance Adjustment
USING THE AIR WALKER TRAINER PLACING YOUR FEET ON THE AIR WALKER TRAINER Stand behind the Air Walker Trainer with each hand holding one of the handlebars. Make sure to push and pull each handlebar prior to placing your feet on the foot pedals, to feel the tension and motion of the machine. -
Page 12: App Connection
APP CONNECTION 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3. -
Page 13: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Right Pedal Connector Sponge φ29*φ23*200 Bearing Sleeve Left Handlebar Screw ST4.8*20 Right Handlebar Left Pedal Tube Right Pedal Tube Washer φ8.2*φ16*1.5 Plug F25*50*1.5 Bolt M8*42 Stopper Screw M8*20 Connecting Sleeve Bolt Cap Plug F25*25*2.0... -
Page 14: Exploded Diagram
EXPLODED DIAGRAM 56 57 51 52 7 8 9 31 32 Version: 1.0...
