Sunny Health & Fitness SF-S023056 User Manual

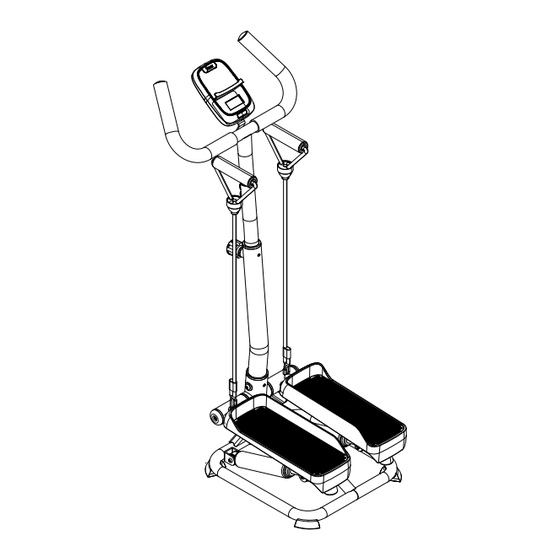

Premier smart stair stepper with handlebars and resistance bands
Hide thumbs

Advertisement

Table of Contents

PREMIER SMART STAIR STEPPER
WITH HANDLEBARS AND
RESISTANCE BANDS
SF-S023056
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-S023056 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-S023056

Summary of Contents for Sunny Health & Fitness SF-S023056

  • Page 1 PREMIER SMART STAIR STEPPER WITH HANDLEBARS AND RESISTANCE BANDS SF-S023056 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Φ Φ THANK Φ Φ Φ FOR YOUR PURCHASE Description Spec. Qty. Description Spec. Qty. Manual Main Frame Thank You Card Φ8*640 Exercise Band Computer SF-L2306M Handrail Support Tube Hardware Package...

  • Page 4: Hardware Package

    HARDWARE PACKAGE SF-S023056 HARDWARE PACKAGE Step 4 S5 1PC Step 2 Step 3 M8*15 4PCS #39 Φ 20* Φ 8.3*1.6 4PCS #39 Φ 20* Φ 8.3*1.6 2PCS #29 Φ 60*M14 M8*15 2PCS #41 M16*1.5*20* Φ 37 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Remove the Main Frame (No. 1) from the box. Lift the Right Pedal (No. 51) up with your hand and ensure that the Wire Rope (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: Connect the Sensor (No. 10) with the Sensor Wire (No. 49). M8*15 4PCS #39 Φ20*Φ8.3*1.6 4PCS Insert the Handrail Support Tube (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 7: STEP 8: Connect 2 Exercise Bands (No. 34) to the 2 Connect the Extension Wire (No. 43) to the Exercise Band Buckles (No.
  • Page 8 MAINTENANCE & ADJUSTMENT GUIDE ADJUSTING THE STEPPING HEIGHT Turn the Adjustment Knob (No. 29) clockwise to increase the stepping height. Turn the Adjustment Knob (No. 29) counter-clockwise to decrease the stepping height. ADJUSTING THE HEIGHT OF HANDLEBAR Loose the Spring Knob (No. 41) and pull out. Adjust the Handrail Inner Tube (No.
  • Page 9 EXERCISE BAND INSTRUCTIONS 1. Unscrew the hook nut located on the exercise band until the hook is open as shown in the picture below. 2. Attach the exercise band hook onto the exercise band buckle and screw the hook nut closed until the exercise band buckle is secured with the hook nut.

  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION AND REPLACEMENT Battery Battery Cover BATTERY INSTALLATION: 1. Take out 2 AAA batteries from computer box. 2. Pull out the SUNNY insert (No. A), press the buckle of battery cover on the Computer (No. 33), then remove battery cover. 3.

  • Page 11: Exercise Computer

    EXERCISE COMPUTER BLUETOOTH 1. The Bluetooth icon will flash when the computer is on or wakes from sleep mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2. The Bluetooth icon will stay on when it is connected. WIRELESS HEART RATE 1.
  • Page 12 OPERATION 1.POWER ON Installs 2 pieces of 1.5V AAA batteries. (Whenever batteries are removed, all the functions values will be reset to zero.) 2.1 WAKE UP After entering speed signal, each function will skip to display. STOP will be displayed once no speed signal detected for 10 seconds.
  • Page 13 APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in.

  • Page 14: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 15: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Foot Pad 58.4*33.7*20 Right Foot Bar Limit Plate Left Foot Bar Adjustment Knob Φ60*M14 Φ38*Φ19.1* Pulley Fixed Bracket Spacer 17.25 Wire Rope Φ6.5*355 Washer Φ38*Φ19.1*1 Pulley Φ100*Φ8.2*20 Left Pedal 320*120*82.4 Cover Computer SF-L2306M...
