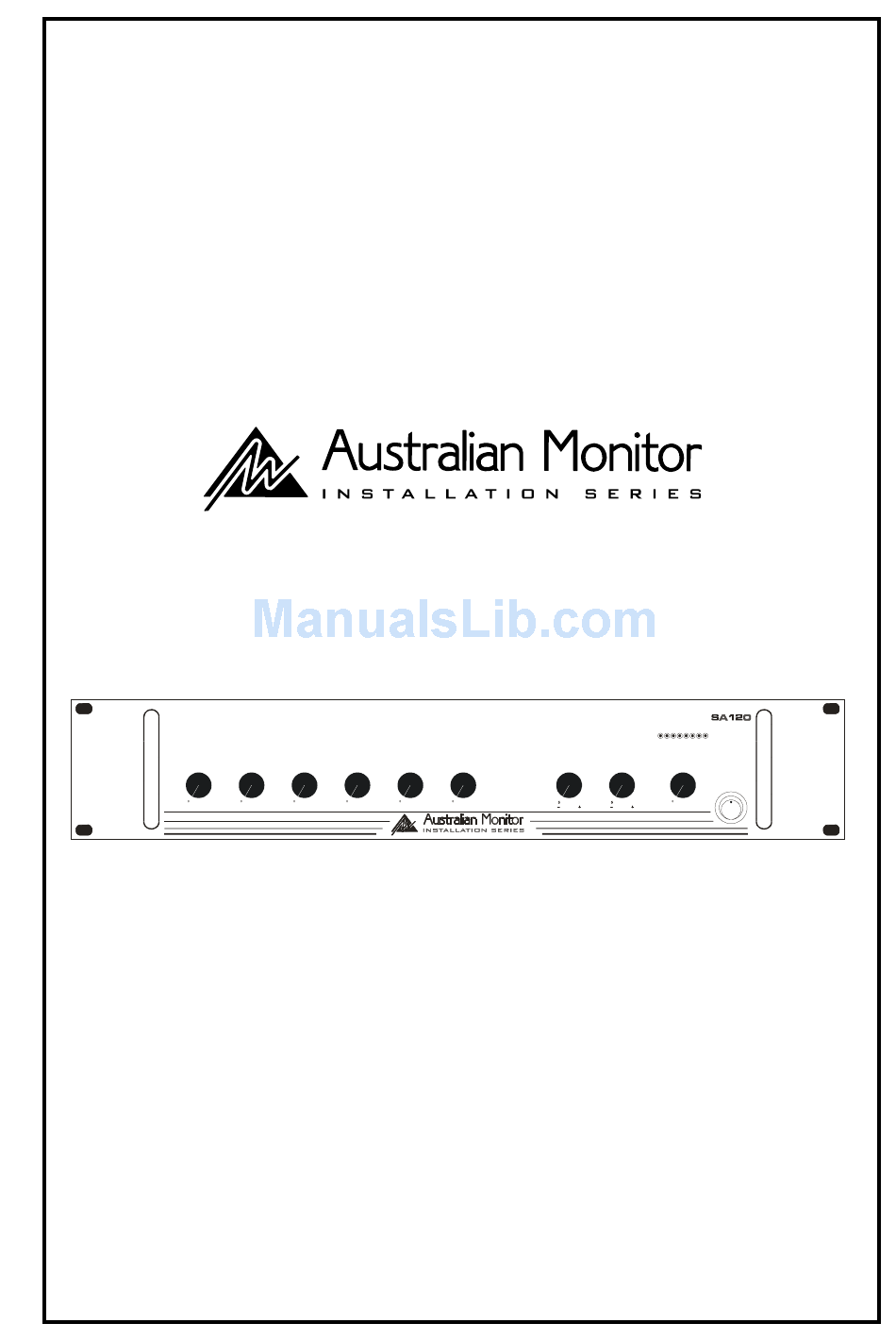

- Page 1 SA60, 60w Mixer Amplifier SA120, 120w Mixer Amplifier 1 5 9 0 + 3 dB P OW ER C H 1 C H 2 C H 3 C H 4 C H 5 C H 6 BAS S TR EBLE...
-
Page 2: Front Panel Features
Product Description The SA60 is a 60 watt, 6 channel mixer amplifier and similarly the SA120 is a 120 watt, 6 channel mixer amplifier. Both models operate from 230/240 VAC @ 50 Hz (or 115 VAC @ 60 Hz with factory modification) or 24 VDC via an external battery supply. -
Page 3: Rear Panel Connections
When used individually, the low impedance load should be 4 ohms or higher on the SA120 (8 ohms or higher on the SA60) while the 100v line load should not fall below 80 ohms for the SA120 or 170 ohms for the SA60. -
Page 4: Tape Output
Insert Point A TRS jack socket insert point (6.35mm) is provided which enables a graphic equaliser, FBX Feedback Exterminator or similar product to be connected between the mixer and power amp stages. Tip = Return. Ring = Send. Sleeve = Ground. Tape Output Two RCA style output connectors are provided for a line level tape output. - Page 5 Important Safety Information 13. Do not block fan intake or exhaust ports. Do not 1. Save the carton and packing material even if the equip- operate equipment on a surface or in an environment ment has arrived in good condition. Should you ever which may impede the normal flow of air around the need to ship the unit, use only the original factory pack- ing.
- Page 6 Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia A.B.N. 78 001 345 482 Inc in NSW www.audiotelex.com.au Export Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Australia Ph: 61-2- 9647 1411 Fax: 61-2-9748 2537 E-mail: ho@audiotelex.com.au Sydney (NSW &...
