Summary of Contents for AUSTRALIAN MONITOR DCM120

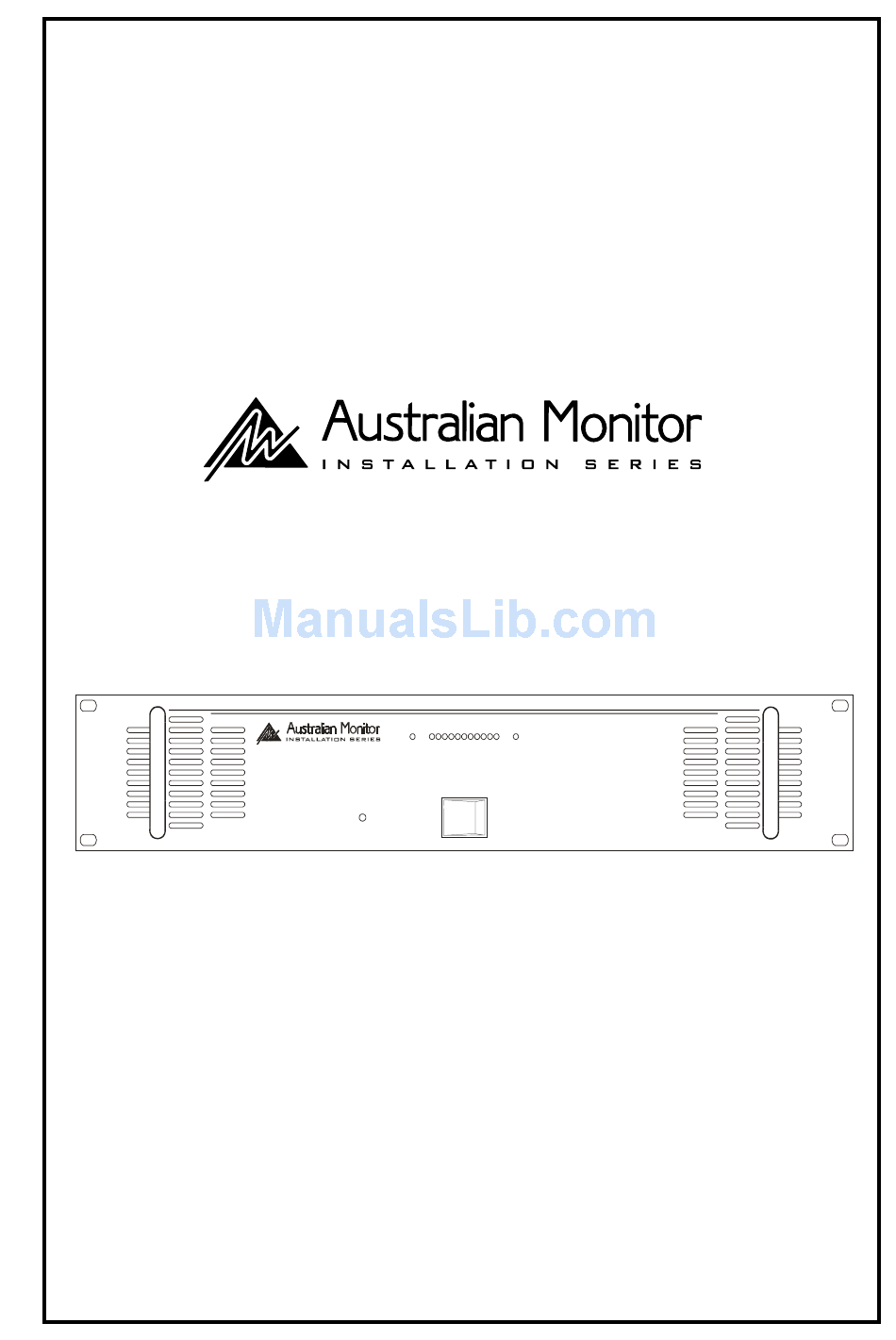

- Page 1 DCM120 120w Power Amplifier D C M 1 2 0 M A IN S T EM P O N 2 4 2 1 1 8 1 5 1 2 9 FA IL Operating Manual...
-
Page 2: Product Description
(4 or 8 ohm) or 70v/100v line speaker systems. The amplifier can be mounted in a standard 19” equipment rack or it can be used on a shelf or table. The DCM120 features a line level input (with parallel output) and is normally used with mixers, mixer amplifiers or other power amplifiers. -
Page 3: Rear Panel Features
LED’s. If the LED’s in the red zone are lit continually, then the output level control (or the level of the input signal to the DCM120) should be adjusted to reduce the output level. - Page 4 Cooling Fan (Air Intake) The cooling fan is temperature sensitive and will only switch on when the temperature of the DCM120 had reached a pre- determined range. The fan will stay on and only switch off again once the temperature of the DCM120 has fallen below a pre-determined level.
-
Page 5: Important Safety Information
Important Safety Information 13. Do not block fan intake or exhaust ports. Do not 1. Save the carton and packing material even if the equip- operate equipment on a surface or in an environment ment has arrived in good condition. Should you ever which may impede the normal flow of air around the need to ship the unit, use only the original factory pack- ing. - Page 6 Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia A.B.N. 78 001 345 482 Inc in NSW www.audiotelex.com.au Export Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Australia Ph: 61-2- 9647 1411 Fax: 61-2-9748 2537 E-mail: ho@audiotelex.com.au Sydney (NSW &...
