Description
The SDG-8612 and SDG-8614 are carrier-class, dual-band, Wi-Fi 2.5G routers designed to deliver top-end Wi-Fi 6 performance, multi-
gigabit throughput, and advanced service delivery capabilities.

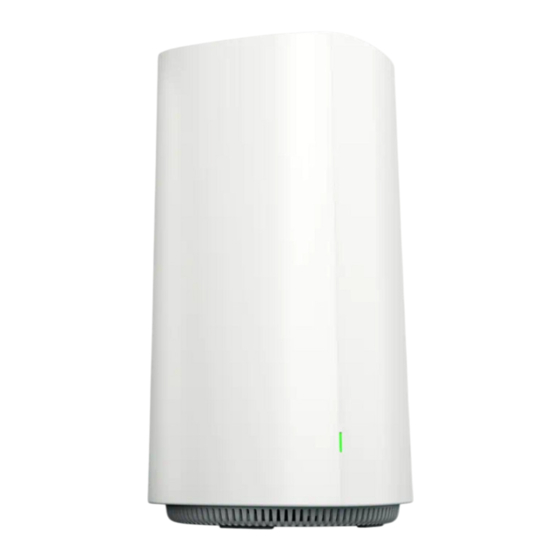

Figure 1: SDG-8612 and SDG-8614 Wi-Fi 6 2.5G Routers
The SDG-8612 and SDG-8614 come with pre-loaded software packages as shown in the table below.
Table 1: Versions of the SDG-8612 and SDG-8614
Description
SDG-8612 with SmartOS
SDG-8612 with PlumeOS DHCP
SDG-8612 with PlumeOS PPPoE
SDG-8614 with SmartOS
SDG-8614 with PlumeOS DHCP
SDG-8614 with PlumeOS PPPoE
WARNING
A warning indicates a hazard
that, if not avoided, could result in
death, injury, or serious property
damage.
Service Delivery Gateway
SDG-8612 and SDG-8614
Wi-Fi 6 2.5G Routers
P/N
17600070FxS
17600070FxPD
17600070FxPP
17600071FxS
17600071FxPD
17600071FxPP
CAUTION
A caution indicates a hazard
that, if not avoided, could result in
service interruption, damage to
the equipment, or minor property
damage.
December 2024
Doc Number: 6SDG861214-13B
NOTE
A note highlights additional, but
important, information or
features.
Advertisement
Related Manuals for ADTRAN SDG-8614 with SmartOS
Summary of Contents for ADTRAN SDG-8614 with SmartOS
- Page 1 Figure 1: SDG-8612 and SDG-8614 Wi-Fi 6 2.5G Routers The SDG-8612 and SDG-8614 come with pre-loaded software packages as shown in the table below. Table 1: Versions of the SDG-8612 and SDG-8614 Description SDG-8612 with SmartOS 17600070FxS SDG-8612 with PlumeOS DHCP 17600070FxPD SDG-8612 with PlumeOS PPPoE...
- Page 2 Due to compliance certification requirements, use only pluggable optics supplied by Adtran. Adtran cannot certify system integrity with other pluggable optics. Installation After unpacking the unit, inspect it for damage. If damage is noted, file a claim with the carrier and then contact Adtran. For more information, see Warranty. Installation Guidelines Shipment Contents Step 1: Placing the SDG-8612 and SDG-8614...
- Page 3 5. The Multifunction Status LED should be lit on the front of the device, as described in the following section LEDs. Figure 2: SDG Bottom View NOTE Adtran recommends only using the DC power adapter that is provided with the unit. SDG-8612 and SDG-8614 Quick Start Guide...
- Page 4 CAUTION For United States and Canada applications, the DC power adapter must be an NRTL Listed LPS power supply. For International applications, the DC power adapter must be an LPS power supply, specifically approved for that country. Step 3: Subscriber Connections The following subscriber connections are available on the SDG-8612 and SDG-8614: ...
- Page 5 LEDs When the SDG-8612 and SDG-8614 first power up, they perform a self-test. Once the power on self-test (POST) is complete, the LEDs display the status of the device. Multifunction Status LED for SmartOS The Multifunction Status LED on the front of the unit indicates the status of the device. The following table defines this LED's different states while running SmartOS.
- Page 6 Ethernet Status LEDs The Ethernet Status LEDs indicate the status of the Ethernet interfaces. Port Color Description 2.5G Right Green Speed is 2.5 Gbps Left Green Speed is 1 Gbps Left Amber Speed is 100 Mbps Right Green Speed is 1 Gbps Left Amber Speed is 10 - 100 Mbps SFP Status LED (SDG-8614 only)
- Page 7 Warranty Adtran will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found online at https://www.adtran.com/warranty. SDG-8612 and SDG-8614 Quick Start Guide...
- Page 8 This equipment contains no parts that can be serviced by the user. This product meets EU RoHS Directive. Refer to www.adtran.com/environmental for further information on RoHS/WEEE. This product is NRTL Safety Listed to the applicable UL/CSA Standards.
- Page 9 5150 ~ 5350 MHz is limited to indoor used in below countries. UK(NI) FCC Requirements for Operation in the United States FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals.
- Page 10 HANDLING PRECAUTIONS REQUIRED 1.800.827.0807 Brand names and product names included in this document are trademarks, registered trademarks, or trade *6SDG861214-13B* names of their respective holders. Copyright © 2024 Adtran, Inc. All Rights Reserved. SDG-8612 and SDG-8614 Quick Start Guide...
